• LCD display
Main display:

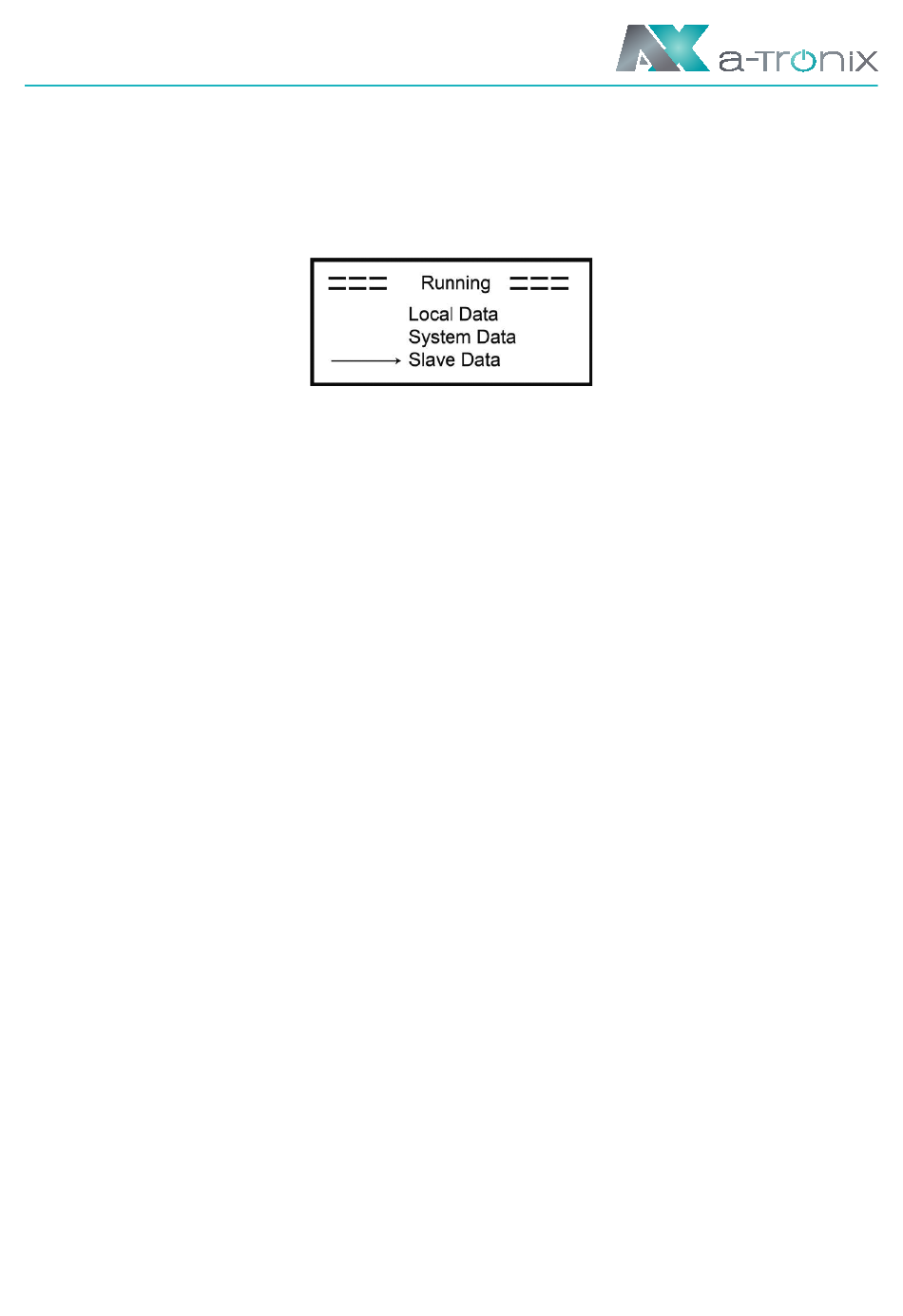

After the start-up the inverter, press „enter", display will go to the running page,
can check out local data, system data and slave data.
Parallel Control Function
Master inverter has an absolute lead in the parallel system to control all slaver
inverter's energy management and dispatch control. Once master inverter has
some error and stop working, all slaver inverter will be stopped automatically. But
master inverter is independent of all slaver inverters to work and will not be affected
by slaver inverter's fault.
Overall system will be running according to master inverter's setting parameters,
and most setting parameters of slaver inverter will be kept but not be excuted.
Once slaver inverter exit from system and be running as an independent unit, it's all
setting will be re-excuted.
The rest of this section covers several important parallel control functions, and the
next page table shows which LCD options are controlled by master inverter and
which can work independently.
Off mode setting:
Off mode can only be set by master inverter (long press ok button on LCD).
Safety setting:
System safety protection is excuted by master inverter's safety. Slaver inverter's
protection will only be triggered by master inverter's command.
Self-use setting:
If system is running as self-use mode, please note the Feed in Power Limit set of
master inverter is for the overall system and the corresponding set of slaver inverter
is invalid.
Force time charge setting:
If system is running as force on time mode, please note all sets on master inverter
about force on time are all for the overall system and the corresponding sets of
slaver inverter are invalid.
Remote control setting:
The remote demand instructions received by master inverter will be interpreted as
the demand instructions to overall system.
