a-TroniX Inverter AX-series, 3 ph

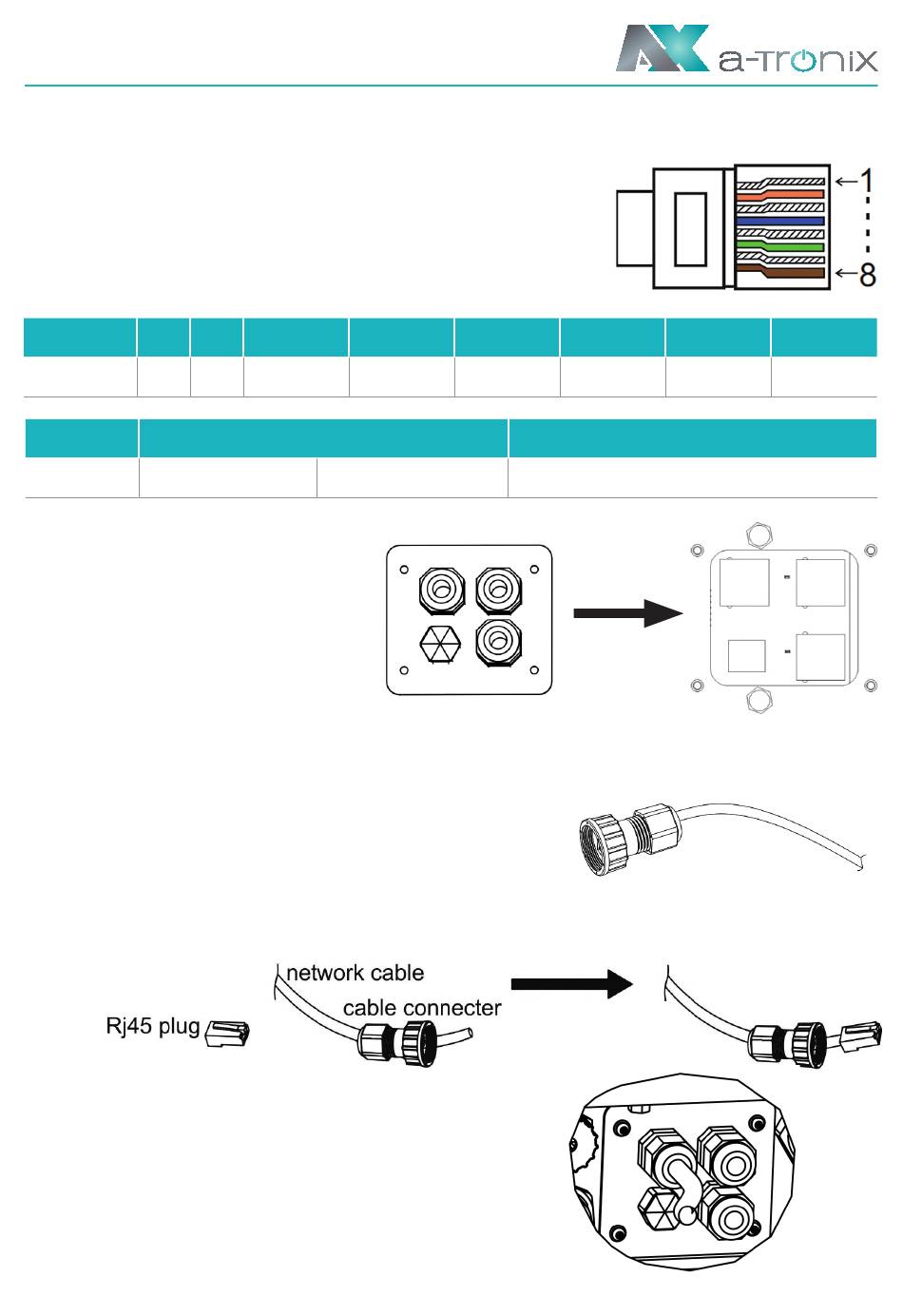

• BMS
BMS-485: Connect the generator and start-up it.
BMS-CANL: External debug.
PIN
1
Definition GND GND BMS-485B BMS-CANL BMS-CANH BMS-CANH BMS-CANL BMS-485A
Model
Socket asserted by shorting pins
ESTOP
Step 1:
Open the lid cover.
Step 2:
Prepare a standard network cable and cable connector,
then insert the network cable through the cable connector.
Step 3:
Crimp the cable with a Rj45 plug which is inside of the cable connector.
Step 4:
Insert the cable connector into COM port at the
bottom of inverter and screw it tightly.
Then insert other side of the network cable into PC
or another device.
Page 106
2 3
7
4 5
8 Emergency stop the inverter.
6 7
Function
