a-TroniX Inverter AX-series, 3 ph

6.5 Electrical Connection

A. Communication Device Installation (Optional)
AX series inverters are available with multiple communication options such as
WiFi, GPRS, LAN, RS485 and Meter with an external device.
Operating information like output voltage, current, frequency, fault information,
etc., can be monitored locally or remotely via these interfaces.
• WiFi/ GPRS/ LAN (Optional)
The inverter has an interface for WiFi/GPRS/LAN devices that allow this device to
collect information from inverter; including inverter working status, performance
etc., and update that information to monitoring platform (the WiFi/GPRS/LAN
device is available to purchase from your local supplier).
Connection steps:
1. For GPRS device:
Please insert the SIM Card
(please refer to the GPRS product manual for more details).
2. Plug the WiFi/ GPRS/ LAN device into „WiFi/GPRS/LAN" port at the bottom of the
inverter.
3. For WiFi device:
Connect the WiFi with the local router, and complete the WiFi configuration
(please refer to the WiFi product manual for more details).
4. Set-up the site account on the monitoring platform
(please refer to the monitoring user manual for more details).

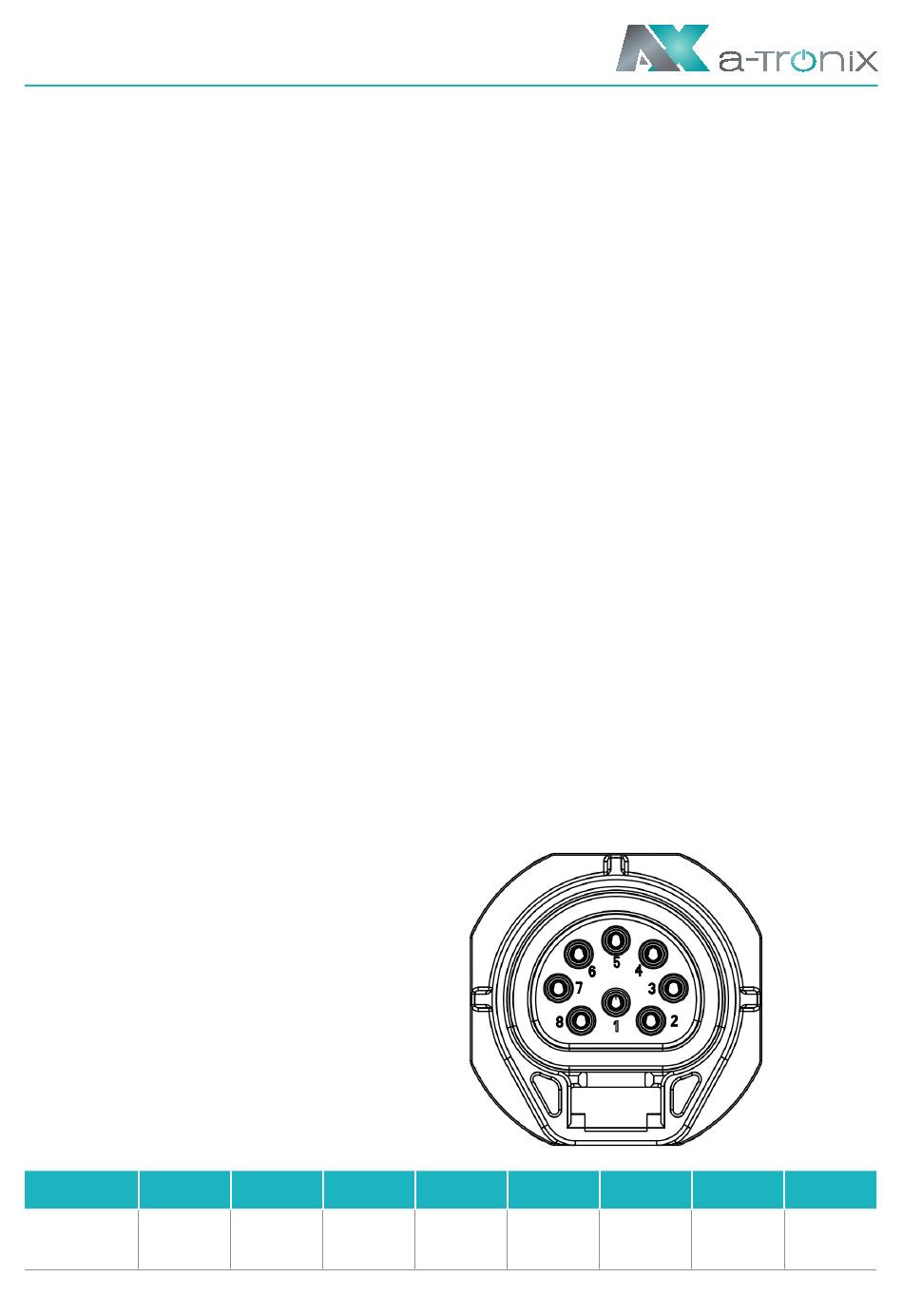

• Meter/RS485
The PIN definitions of Meter/485 interface
are as below:
PIN
1
Logger
Definition
485A
Page 102
2 3
Logger Meter
485B 485B
4 5
Meter
GND
485A
6 7
GND RY_CON
atx002en0723
8
+12V
