a-TroniX Inverter AX-series, 3 ph
Mounting Steps
Tools required for installation:
• Manual wrench;
• Electric drill (drill bit set 8mm);
• Crimping pliers;
• Stripping pliers;
• Screwdriver.

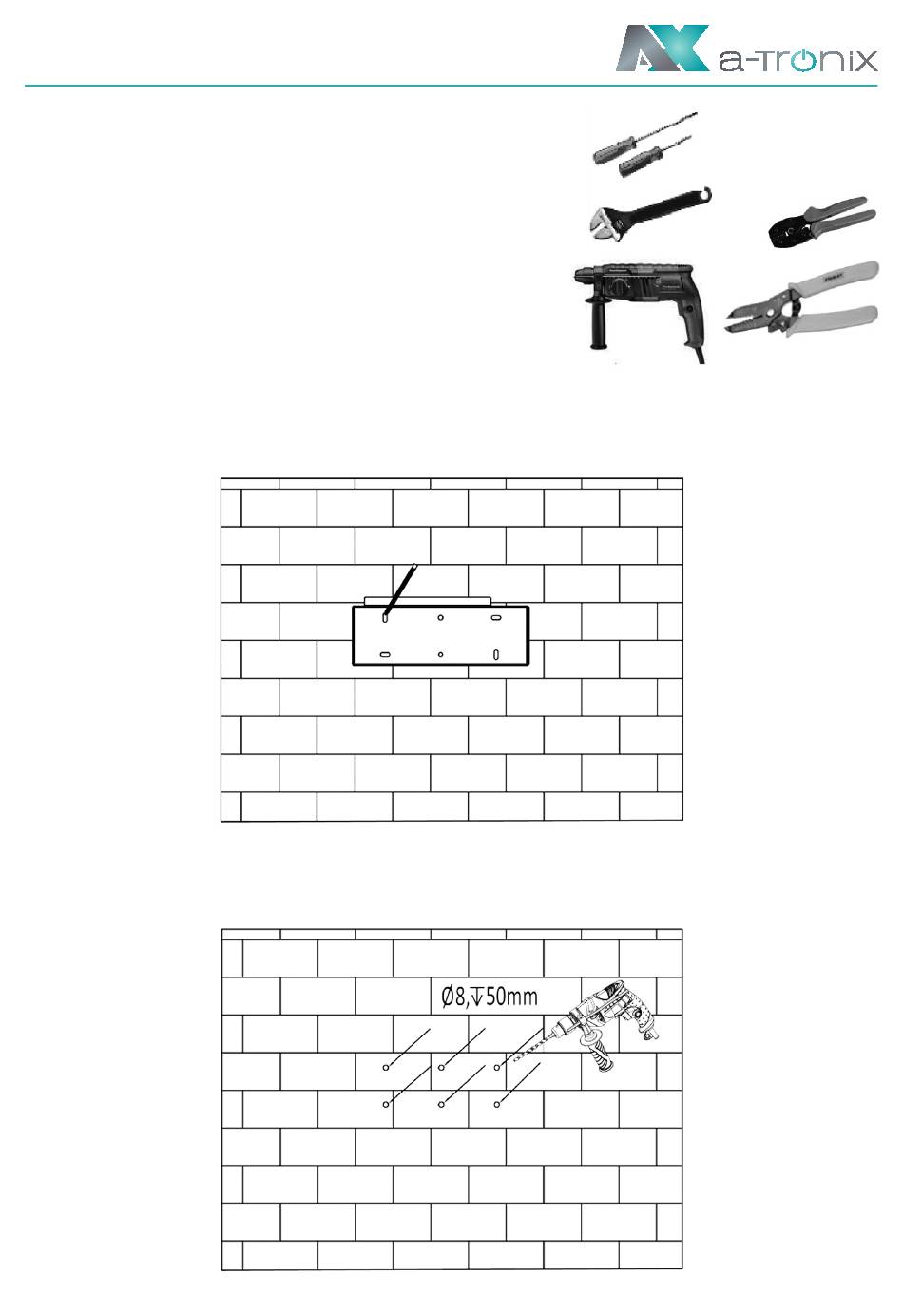

1. Fix the bracket on the wall
• Choose the place you want to install the inverter.
Place the bracket on the wall and mark the position of the 6 holes from bracket.
• Drill holes with electric drill, make sure the holes are at least 50 mm deep and
8 mm wide, and then tighten the expansion tubes.
