eZ80F92 Development Kit
User Manual
44

Physical Dimensions

2.54 mm
Functional Description
Downloaded from Elcodis.com electronic components distributor
The dimensions of the eZ80F92 Flash Module PCB is 64x64mm. With
an RJ-45 Ethernet connector, the overall height is 25mm. See Figure 11.
8.3 mm
max.
1

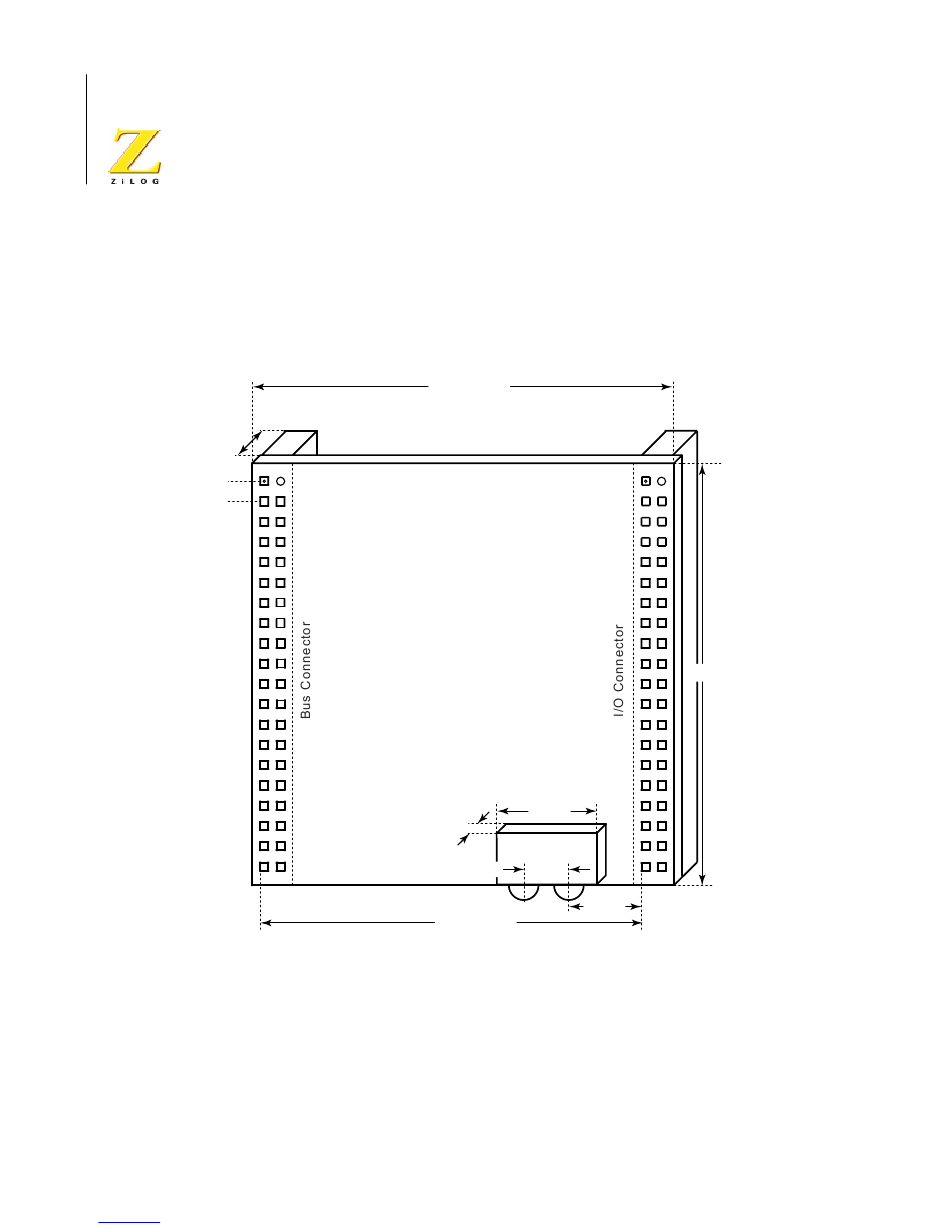

Figure 11. Physical Dimensions of the eZ80F92 Flash Module

63.5 mm
Top View
9 mm
IrDA
2.7 mm
6.2 mm
7 mm
55.88 mm
PRELIMINARY
8.5 mm
1
64 mm
UM013904-0203
