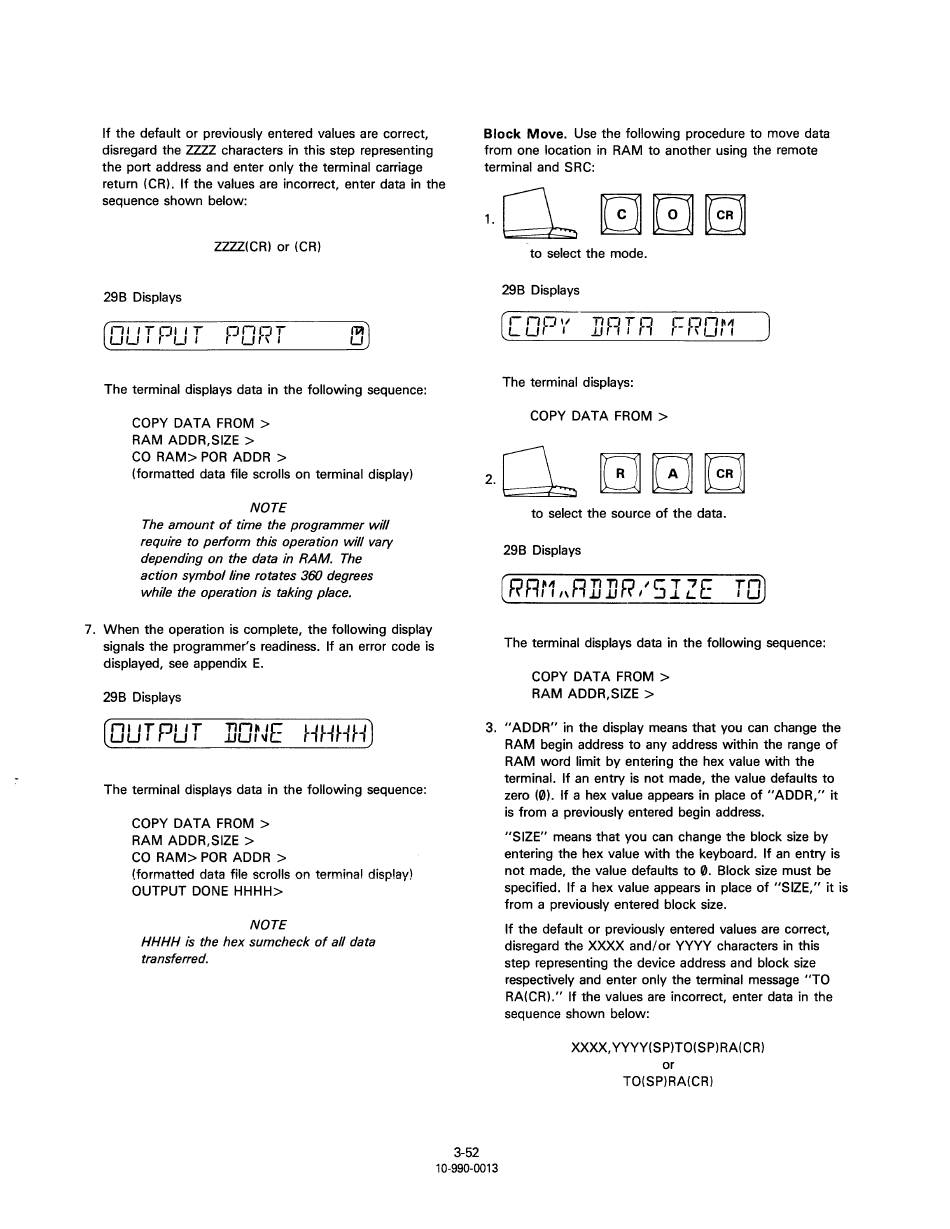

If the default or previously entered values are correct,
disregard the ZZZZ characters in this step representing
the port address and enter only the terminal carriage
return (CR). If the values are incorrect, enter data in the
sequence shown below:
ZZZZ(CR) or (CR)
298 Displays
Ill IT i-11 IT (JflflT
U
l_I
I ,-- l_I I I -
LJ (\
I
,,.,.
LI
The terminal displays data in the following sequence:
COPY DATA FROM >
RAM ADDR,SIZE >
CO RAM> POR ADDA>
(formatted data file scrolls on terminal display)
NOTE
The amount of time the programmer will
require to perform this operation will vary
depending on the data in RAM. The
action symbol line rotates 360 degrees
while the operation is taking place.
7. When the operation is complete, the following display
signals the programmer's readiness. If an error code is
displayed, see appendix E.
298 Displays
( nl
1rp1
IT
UUI LJI
nn111E
.lJUI
\I
HHHH)
The terminal displays data in the following sequence:
COPY DATA FROM >
RAM ADDR,SIZE >
CO RAM> POR ADDA >
(formatted data file scrolls on terminal display)
OUTPUT DONE HHHH>
NOTE
HHHH is the hex sumcheck of all data
transferred.
Block Move. Use the following procedure to move data
from one location in RAM to another using the remote
terminal and SAC:
to select the mode.
298 Displays
The terminal displays:
COPY DAT A FROM >
to select the source of the data.
298 Displays
The terminal displays data in the following sequence:
COPY DATA FROM >
RAM ADDR,SIZE >
3.
"ADDA" in the display means that you can change the
RAM begin address to any address within the range of
RAM word limit by entering the hex value with the
terminal. If an entry is not made, the value defaults to
zero (0). If a hex value appears in place of "ADDA," it
is from a previously entered begin address.
"SIZE" means that you can change the block size by
entering the hex value with the keyboard. If an entry is
not made, the value defaults to
0.
Block size must be
specified. If a hex value appears in place of "SIZE," it is
from a previously entered block size.
If the default or previously entered values are correct,
disregard the XXXX and/ or YYYY characters in this
step representing the device address and block size
respectively and enter only the terminal message "TO
RA(CR)." If the values are incorrect, enter data in the
sequence shown below:
XXXX, YYYY(SP)TO(SP)RA(CR)
or
TO(SP)RA(CR)
3-52
10-990-0013
