Data I/O 298 Manual page 160

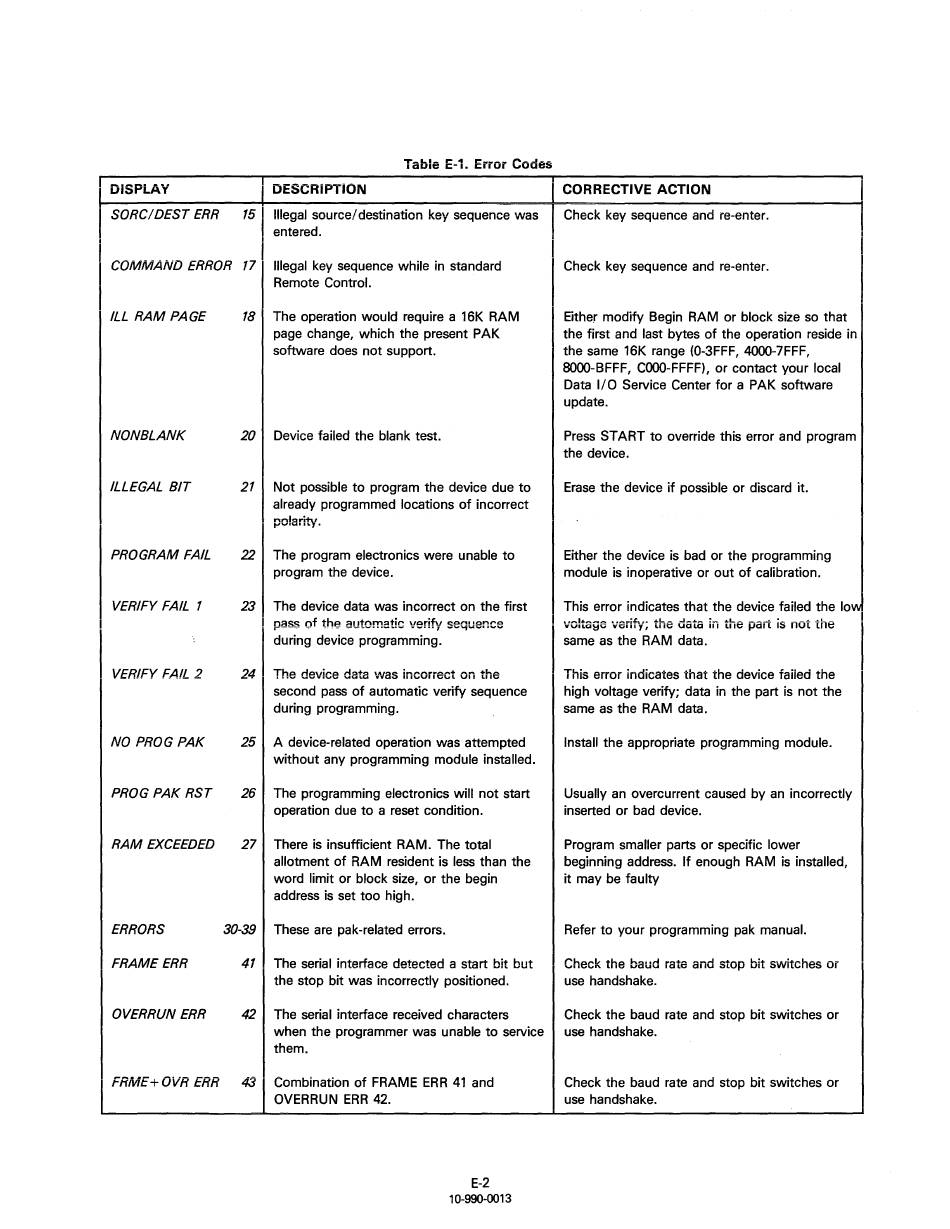

Table E-1. Error Codes
DISPLAY DESCRIPTION
SORCIDEST ERR
151
Illegal source/ destination key sequence was
entered.
I
I
COMMAND ERROR 17
Illegal key sequence while in standard
Remote Control.
ILL RAM PAGE
NON BLANK
ILLEGAL BIT
PROGRAM FAIL
VERIFY FAIL 1
18 The operation would require a 16K RAM
page change, which the present PAK
software does not support.
20 Device failed the blank test.
21
Not possible to program the device due to
already programmed locations of incorrect
polarity.
22
The program electronics were unable to
program the device.
23
The device data was incorrect on the first
pass of the automatic verify sequence
during device programming.
VERIFY FAIL 2 24
The device data was incorrect on the
second pass of automatic verify sequence
during programming.
NO PROG PAK 25 A device-related operation was attempted
without any programming module installed.
PROG PAK RST 26
The programming electronics will not start
operation due to a reset condition.
RAM EXCEEDED 27 There is insufficient RAM. The total
allotment of RAM resident is less than the
word limit or block size, or the begin
address is set too high.
ERRORS 30-39 These are pak-related errors.
FRAME ERR 41 The serial interface detected a start bit but
the stop bit was incorrectly positioned.
OVERRUN ERR 42 The serial interface received characters
when the programmer was unable to service
them.
FRME+ OVR ERR 43 Combination of FRAME ERR 41 and
OVERRUN ERR 42.
E-2
10-990-0013
CORRECTIVE ACTION
Check key sequence and re-enter.
Check key sequence and re-enter.
Either modify Begin RAM or block size so that
the first and last bytes of the operation reside in
the same 16K range (0-3FFF, 4000-7FFF,
8000-BFFF, COOO-FFFF), or contact your local
Data
1/0
Service Center for a PAK software
update.
Press ST ART to override this error and program
the device.
Erase the device if possible or discard it.
Either the device is bad or the programming
module is inoperative or out of calibration.
This error indicates that the device failed the lo
voltage verit1; the data in the part is not the
same as the RAM data.
This error indicates that the device failed the
high voltage verify; data in the part is not the
same as the RAM data.
Install the appropriate programming module.
Usually an overcurrent caused by an incorrectly
inserted or bad device.
Program smaller parts or specific lower
beginning address. If enough RAM is installed,
it may be faulty
Refer to your programming pak manual.
Check the baud rate and stop bit switches or
use handshake.
Check the baud rate and stop bit switches or
use handshake.
Check the baud rate and stop bit switches or
use handshake.
