Data I/O 298 Manual page 164

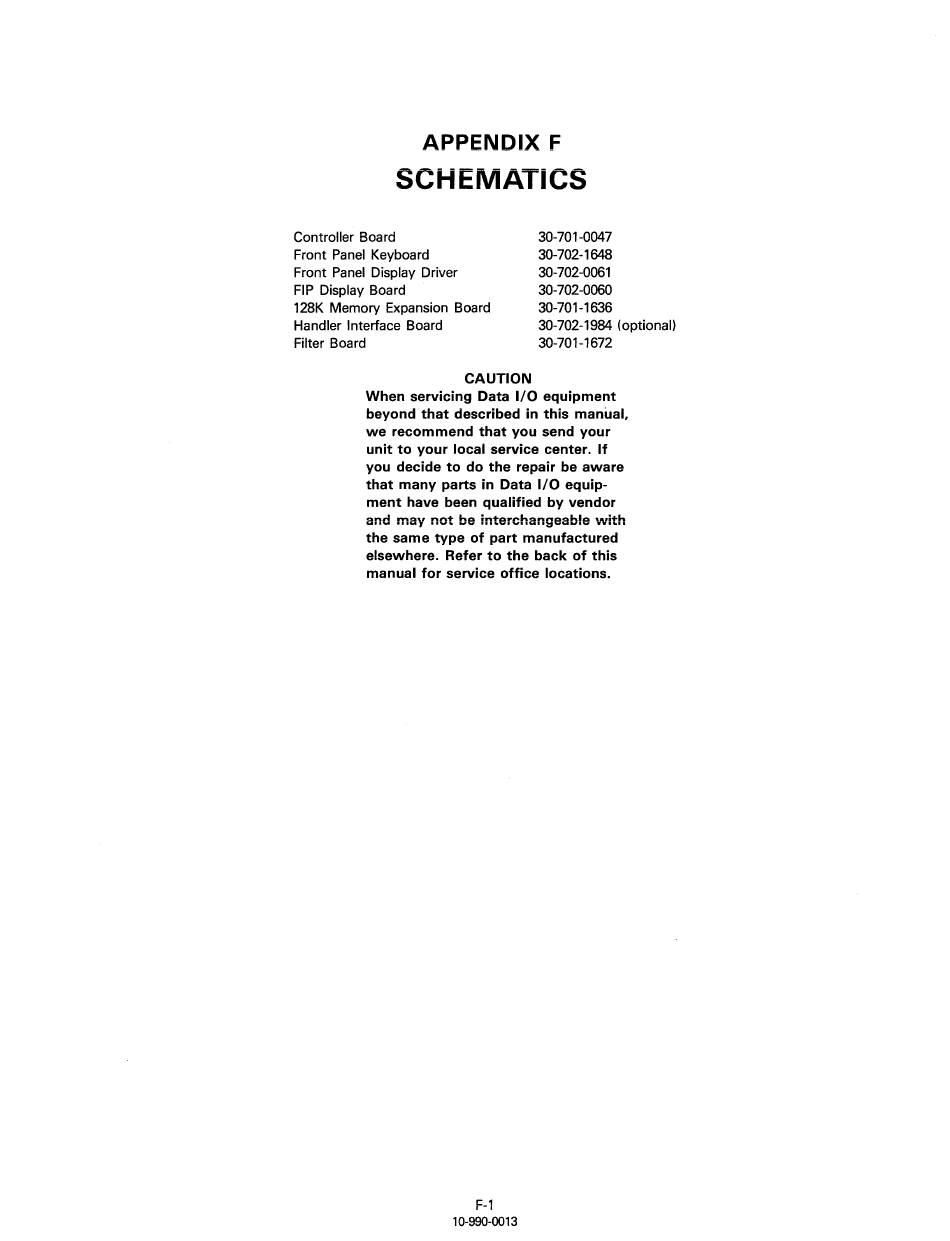

APPENDIX F
SCHEMATICS
Controller Board 30-701-0047
30-702-1648
30-702-0061
30-702-0060
30-701-1636
30-702-1984 (optional)
30-701-1672
Front Panel Keyboard
Front Panel Display Driver
FIP Display Board
128K Memory Expansion Board
Handler Interface Board
Filter Board
CAUTION
When servicing Data 1/0 equipment
beyond that described in this manual,
we recommend that you send your
unit to your local service center. If
you decide to do the repair be aware
that many parts in Data 1/0 equip-
ment have been qualified by vendor
and may not be interchangeable with
the same type of part manufactured
elsewhere. Refer to the back of this
manual for service office locations.
F-1
10-990-0013
