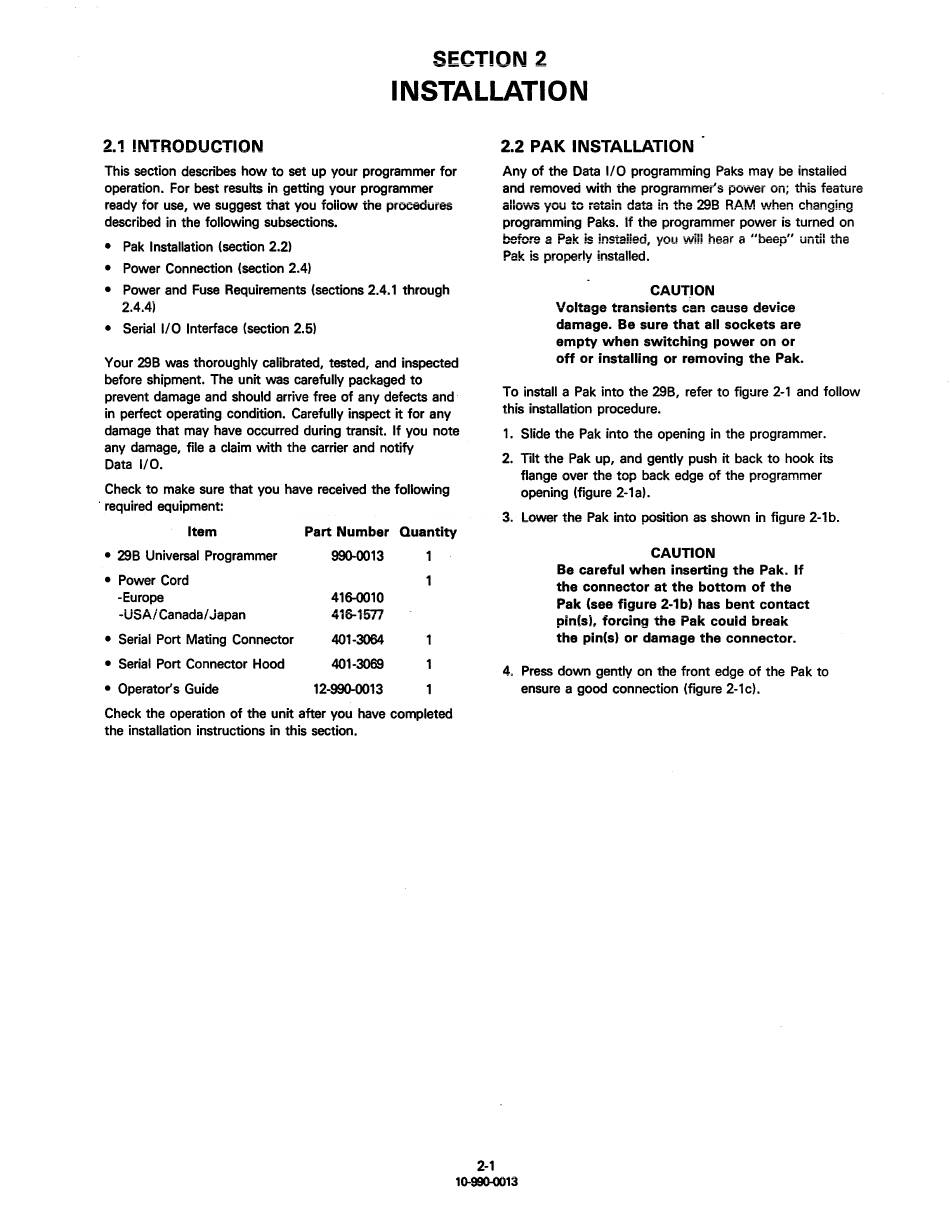

SECTION 2
INSTALLATION
2. 1 INTRODUCTION
This section describes how to set up your programmer for
operation. For best results in getting your programmer
ready for use, we suggest that you foiiow the procedures
described in the following subsections.
• Pak Installation (section 2.2)
• Power Connection (section 2.4)
• Power and Fuse Requirements (sections 2.4.1 through
2.4.4)
• Serial 1/0 Interface (section 2.5)
Your 298 was thoroughly calibrated, tested, and inspected
before shipment. The unit was carefully packaged to
prevent damage and should arrive free of any defects and ·
in perfect operating condition. Carefully inspect it for any
damage that may have occurred during transit. If you note
any damage, file a claim with the carrier and notify
Data
1/0.
Check to make sure that you have received the following
· required equipment:
Item Part Number Quantity
• 298 Universal Programmer
990-0013
• Power Cord
-Europe 416-0010
-USAi Canada/ japan
41a-1sn
• Serial Port Mating Connector 401-3064
• Serial Port Connector Hood
401-3069
• Operator's Guide 12-990-0013
Check the operation of the unit after you have completed
the installation instructions in this section.
2.2 PAK INSTALLATION
Any of the Data
1/0
programming Paks may be instaiied
and removed with the programmer's power on; this feature
allovvs you to retain data in the 298 RAM when changing
programming Paks. If the programmer power is turned on
before a Pak ls instai!ed, you will hear a "beep" until the
Pak is properly installed.
CAUT_ION
Voltage transients can cause device
damage. Be sure that all sockets are
empty when switching power on or
off or installing or removing the Pak.
To install a Pak into the 298, refer to figure 2-1 and follow
this installation procedure.
1. Slide the Pak into the opening in the programmer.
2. Tiit the Pak up, and gently push it back to hook its
flange over the top back edge of the programmer
opening (figure 2-1 a).
3. Lower
the
Pak into position as shown in figure 2-1b.
CAUTION
Be careful when inserting the Pak. If
the connector at the bottom of the
Pak (see figure 2-1b) has bent contact
pin(s). forcing the Pak could break
the pin(s) or damage the connector.
4.
Press down gently on the front edge of the Pak to
ensure a good connection (figure 2-1c).
2-1
10-990-0013
