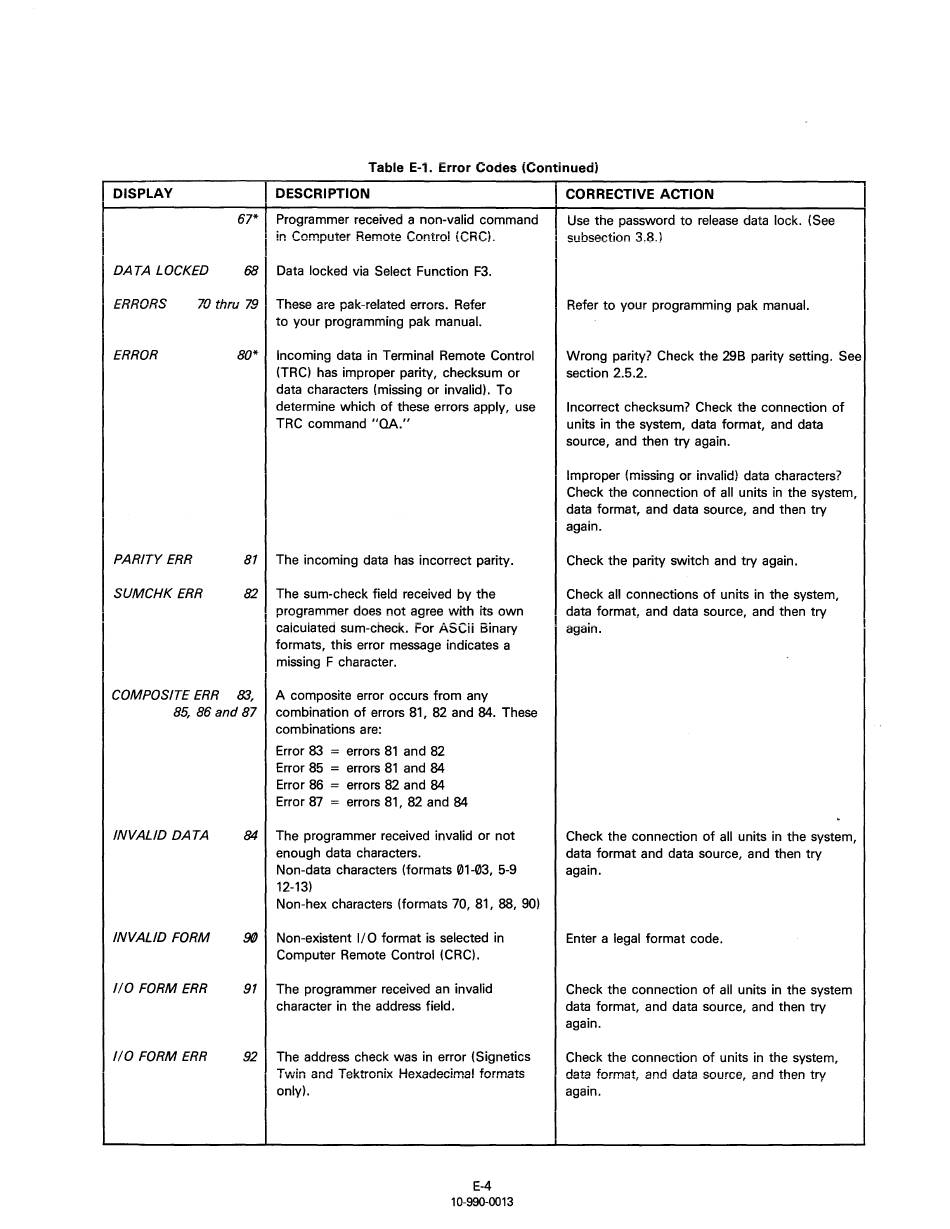

Table E-1. Error Codes (Continued)
DISPLAY DESCRIPTION
DATA LOCKED
67* Programmer received a non-valid command
in Computer Remote Control {CRCL
68 Data locked via Select Function F3.
ERRORS 70 thru 79 These are pak-related errors. Refer
to your programming pak manual.
ERROR
PARITY ERR
SUMCHK ERR
80* Incoming data in Terminal Remote Control
(TRC) has improper parity, checksum or
data characters (missing or invalid). To
determine which of these errors apply, use
TRC command
"QA."
81 The incoming data has incorrect parity.
82 The sum-check field received by the
programmer does not agree with its own
caicuiated sum-check. For ASCII Binary
formats, this error message indicates a
missing F character.
COMPOSITE ERR 83,
85, 86 and 87
A composite error occurs from any
combination of errors 81, 82 and 84. These
combinations are:
INVALID DATA
INVALID FORM
110 FORM ERR
110 FORM ERR
Error 83 = errors 81 and 82
Error 85
=
errors 81 and 84
Error 86
=
errors 82 and 84
Error 87
=
errors 81, 82 and 84
84 The programmer received invalid or not
enough data characters.
Non-data characters (formats 01-03, 5-9
12-13)
Non-hex characters (formats 70, 81, 88, 90)
9()
Non-existent I/ 0 format is selected in
Computer Remote Control (CRC).
91 The programmer received an invalid
character in the address field.
92 The address check was in error (Signetics
Tvvin and Tektronix Hexadecimal formats
only).
