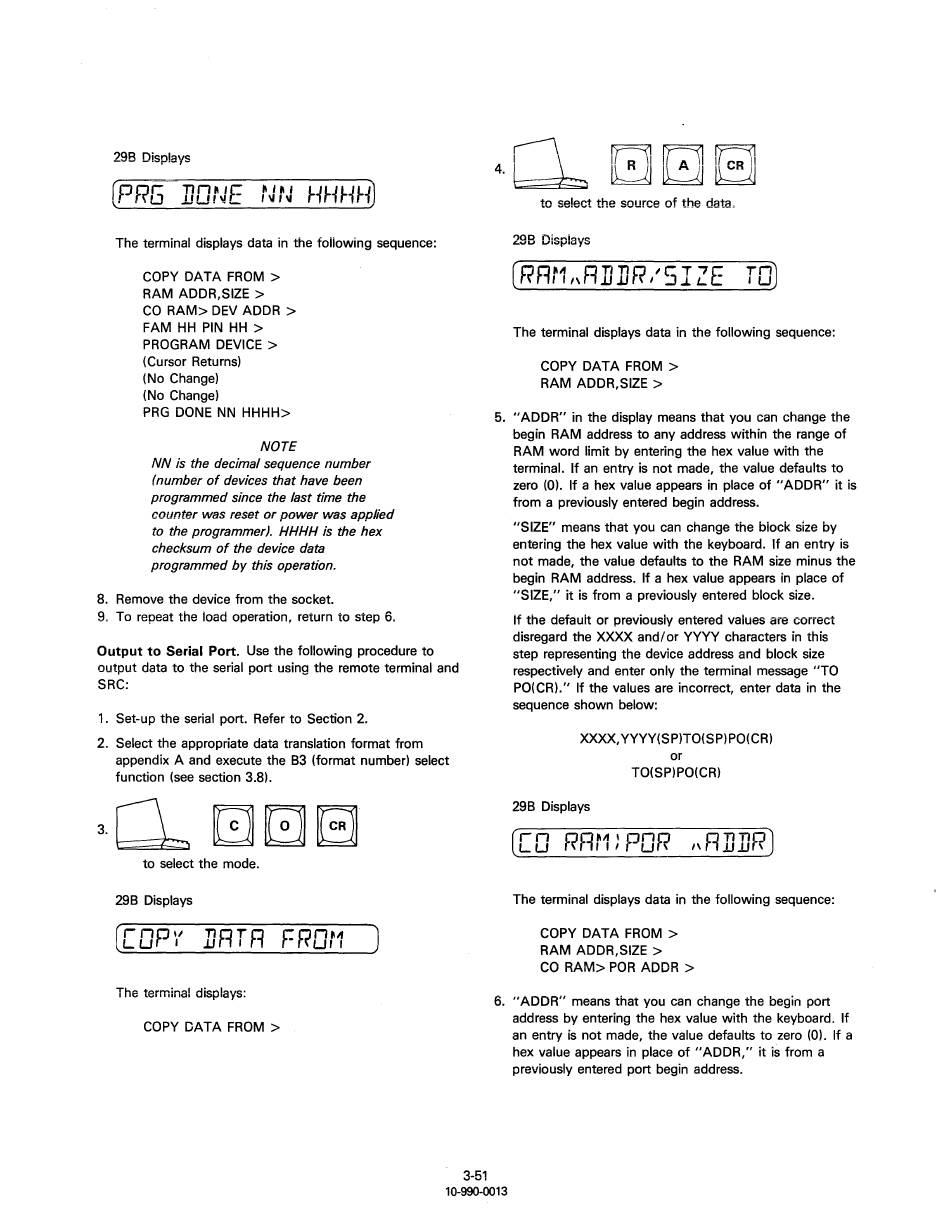

298 Displays
(PRG IJOrJE
fJrJ
HHHH)
The terminal displays data in the foiiowing sequence:
COPY DAT A FROM >
RAM ADDR,SIZE >
CO RAM> DEV ADDR >
FAM HH PIN HH >
PROGRAM DEVICE >
(Cursor Returns)
(No Change)
(No Change)
PRG DONE NN HHHH>
NOTE
NN is the decimal sequence number
(number of devices that have been
programmed since the last time the
counter was reset
or
power was
applied
to the programmer). HHHH is the hex
checksum of the device data
programmed by this operation.
8.
Remove the device from the socket.
9. To repeat the load operation, return to step 6.
Output to Serial Port. Use the following procedure to
output data to the serial port using the remote terminal and
SRC:
1.
Set-up the serial port. Refer to Section
2.
2.
Select the appropriate data translation format from
appendix A and execute the 83 (format number) select
function (see section 3.8).
3
-c:L
GGG
to select the mode.
298 Displays
DRTR
FR
llM
Uri
)
The terminal displays:
COPY DATA FROM >
r \
I \
4.
b )' : ::.)
to select the source of the data.
(RRr1"RIIIJR/5IZE
TO)
The terminal displays data in the following sequence:
COPY DATA FROM >
RAM ADDR,SIZE >
5.
"ADDR" in the display means that you can change the
begin RAM address to any address within the range of
RAM word limit by entering the hex value with the
terminal. If an entry is not made, the value defaults to
zero
(0).
If a hex value appears in place of "ADDR" it is
from a previously entered begin address.
"SIZE" means that you can change the biock size by
entering the hex value with the keyboard. If an entry is
not made, the value defaults to the RAM size minus the
begin RAM address. If a hex value appears in place of
"SIZE," it is from a previously entered block size.
If the default or previously entered values are correct
disregard the XXXX and/ or YYYY characters in this
step representing the device address and block size
respectively and enter only the terminal message "TO
PO(CR)." If the values are incorrect, enter data in the
sequence shown below:
XXXX,YYYY(SP)TO(SP)PO(CR)
or
TO( SP) PO( CR)
298 Displays
(CO RRr1; POR "RTITIRJ
The terminal displays data in the following sequence:
COPY DAT A FROM >
RAM ADDR,SIZE >
CO RAM> POR ADDR >
6. "ADDR" means that you can change the begin port
address by entering the hex value with the keyboard. If
an entry is not made, the value defaults to zero (0). If a
hex value appears in place of "ADDR," it is from a
previously entered port begin address.
