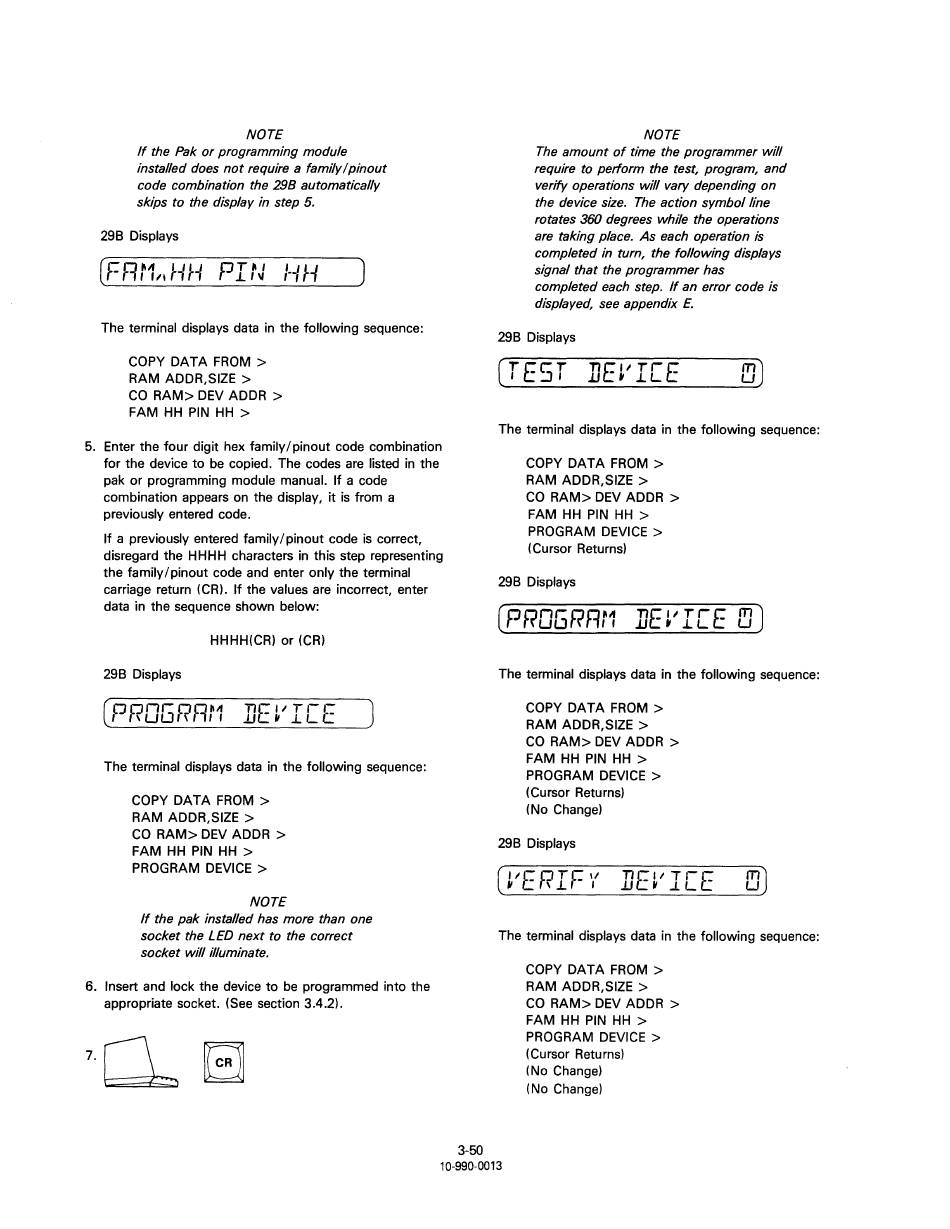

NOTE
If the Pak or programming module
installed does not require a family I pinout
code combination the 298 automatically
skips to the display in step 5.
298 Displays
The terminal displays data in the following sequence:
COPY DA TA FROM >
RAM ADDR,SIZE >
CO RAM> DEV ADDR >
FAM HH PIN HH >
5. Enter the four digit hex family
I
pinout code combination
for the device to be copied. The codes are listed in the
pak or programming module manual. If a code
combination appears on the display, it is from a
previously entered code.
If a previously entered family
I
pinout code is correct,
disregard the HHHH characters in this step representing
the family
I
pinout code and enter only the terminal
carriage return (CR). If the values are incorrect, enter
data in the sequence shown below:
HHHH(CR) or (CR)
298 Displays
(PROGRRr1
IJEVICE )
The terminal displays data in the following sequence:
COPY DAT A FROM >
RAM ADDR,SIZE >
CO RAM> DEV ADDR >
FAM HH PIN HH >
PROGRAM DEVICE >
NOTE
If
the pak installed has more than one
socket the LED next to the correct
socket will illuminate.
6. Insert and lock the device to be programmed into the
appropriate socket. (See section 3.4.2).
7.~B
NOTE
The amount of time the programmer will
require to perform the test, program, and
verify operations will vary depending on
the device size. The action symbol line
rotates 360 degrees while the operations
are taking place. As each operation is
completed in turn, the following displays
signal that the programmer has
completed each step. If an error code is
displayed, see appendix E.
298 Displays
(TEST
IJE~ 1 ICE
B)
The terminal displays data in the following sequence:
COPY DAT A FROM >
RAM ADDR,SIZE >
CO RAM> DEV ADDR >
FAM HH PIN HH >
PROGRAM DEVICE >
(Cursor Returns)
298 Displays
(PROGRRf1
IJE
~ 1
I [ E [I)
The terminal displays data in the following sequence:
COPY DA TA FROM >
RAM ADDR,SIZE >
CO RAM> DEV ADDR >
FAM HH PIN HH >
PROGRAM DEVICE >
(Cursor Returns)
(No Change)
298 Displays
B)
The terminal displays data in the following sequence:
COPY DATA FROM >
RAM ADDR,SIZE >
CO RAM> DEV ADDR >
FAM HH PIN HH >
PROGRAM DEVICE >
(Cursor Returns)
(No Change)
(No Change)
3-50
10-990-0013
