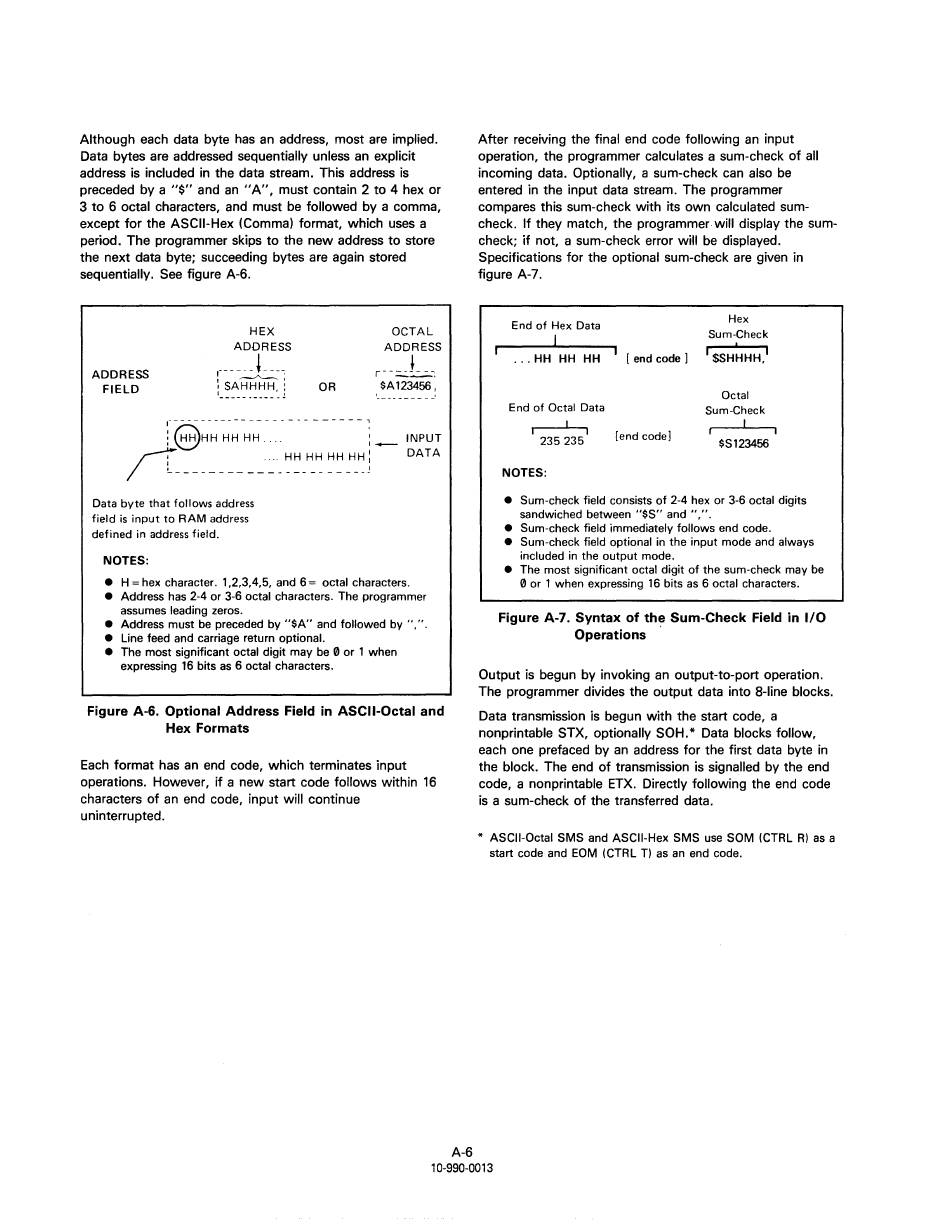

Although each data byte has an address, most are implied.
Data bytes are addressed sequentially unless an explicit
address is included in the data stream. This address is
preceded by a "$" and an "A", must contain 2 to 4 hex or
3 to 6 octal characters, and must be followed by a comma,
except for the ASCII-Hex (Comma) format, which uses a
period. The programmer skips to the new address to store
the next data byte; succeeding bytes are again stored
sequentially. See figure A-6.
ADDRESS
FIELD
HEX
ADDRESS
,------l---~
.~.
:_~~~~~~·-i
OR
OCTAL
ADDRESS
~
r - - .::..:.:::..:..:..-:
$A123456
I
'
'
----------
,-
-
-
- -
-
- - - - -
-
-
- - - -
-
-
-
-
-
- -
-
-
,
:eHHHHHH.... : _
r-: . . . .
HH HH HH HH:
INPUT
DATA
I
!_ ______________________ !
Data byte that follows address
field is input to RAM address
defined in address field.
NOTES:
• H =hex character. 1,2,3,4,5, and 6 = octal characters.
• Address has 2-4 or 3-6 octal characters. The programmer
assumes leading zeros.
• Address must be preceded by "$A" and followed by ", ".
• Line feed and carriage return optional.
• The most significant octal digit may be 0 or 1 when
expressing 16 bits as 6 octal characters.
Figure A-6. Optional Address Field in ASCII-Octal and
Hex Formats
Each format has an end code, which terminates input
operations. However, if a new start code follows within 16
characters of an end code, input will continue
uninterrupted.
After receiving the final end code following an input
operation, the programmer calculates a sum-check of all
incoming data. Optionally, a sum-check can also be
entered in the input data stream. The programmer
compares this sum-check with its own calculated sum-
check. If they match, the programmer will display the sum-
check; if not, a sum-check error will be displayed.
Specifications for the optional sum-check are given in
figure A-7.
End of Hex Data
I
... HH HH HH
End of Octal Data
I
235 235
NOTES:
[end code]
[end code]
Hex
Sum-Check
I
$SH~HH.'
Octal
Sum-Check
I
$S123456
• Sum-check field consists of 2-4 hex or 3-6 octal digits
sandwiched between "$S" and'',".
• Sum-check field immediately follows end code.
• Sum-check field optional in the input mode and always
included in the output mode.
• The most significant octal digit of the sum-check may be
0 or 1 when expressing 16 bits as 6 octal characters.
Figure A-7. Syntax of the Sum-Check Field in 1/0
Operations ·
Output is begun by invoking an output-to-port operation.
The programmer divides the output data into 8-line blocks.
Data transmission is begun with the start code, a
nonprintable STX, optionally SOH.
*
Data blocks follow,
each one prefaced by an address for the first data byte in
the block. The end of transmission is signalled by the end
code, a nonprintable ETX. Directly following the end code
is a sum-check of the transferred data.
*
ASCII-Octal SMS and ASCII-Hex SMS use SOM ICTRL Rl as a
start code and EOM (CTRL Tl as an end code.
