C.4 SYSTEM COMPONENTS
As shown in figure C-3, the 298/handler system consists
of 1) the 298 Programmer, 2) the Handler UniPak™, 3) a
handler compatible with the 298, 4) a performance board,
which configures the system to the particular device to be
programmed, and 5) a terminal (optional). Also included in
the system are the various cables that transmit data
between components of the system.
TERMINAL OR COMPUTER
(OPTIONAL)
298 UNIVERSAL
PROGRAMMER
Uni Pak™
C.5 PERFORMANCE BOARD SELECTION
The Performance Board configures the 298/handler system
to the particular device the user wishes to program. For all
but 16-pin devices, select the board that has the same
number of pins as the device you want to program.
For the 16-pin devices, there are two performance boards:
one for 4-bit output devices and one for 8-bit output
devices.
HANDLER*
(COMMERCIALLY
AVAILABLE)
0
*Delta handler
is shown here.

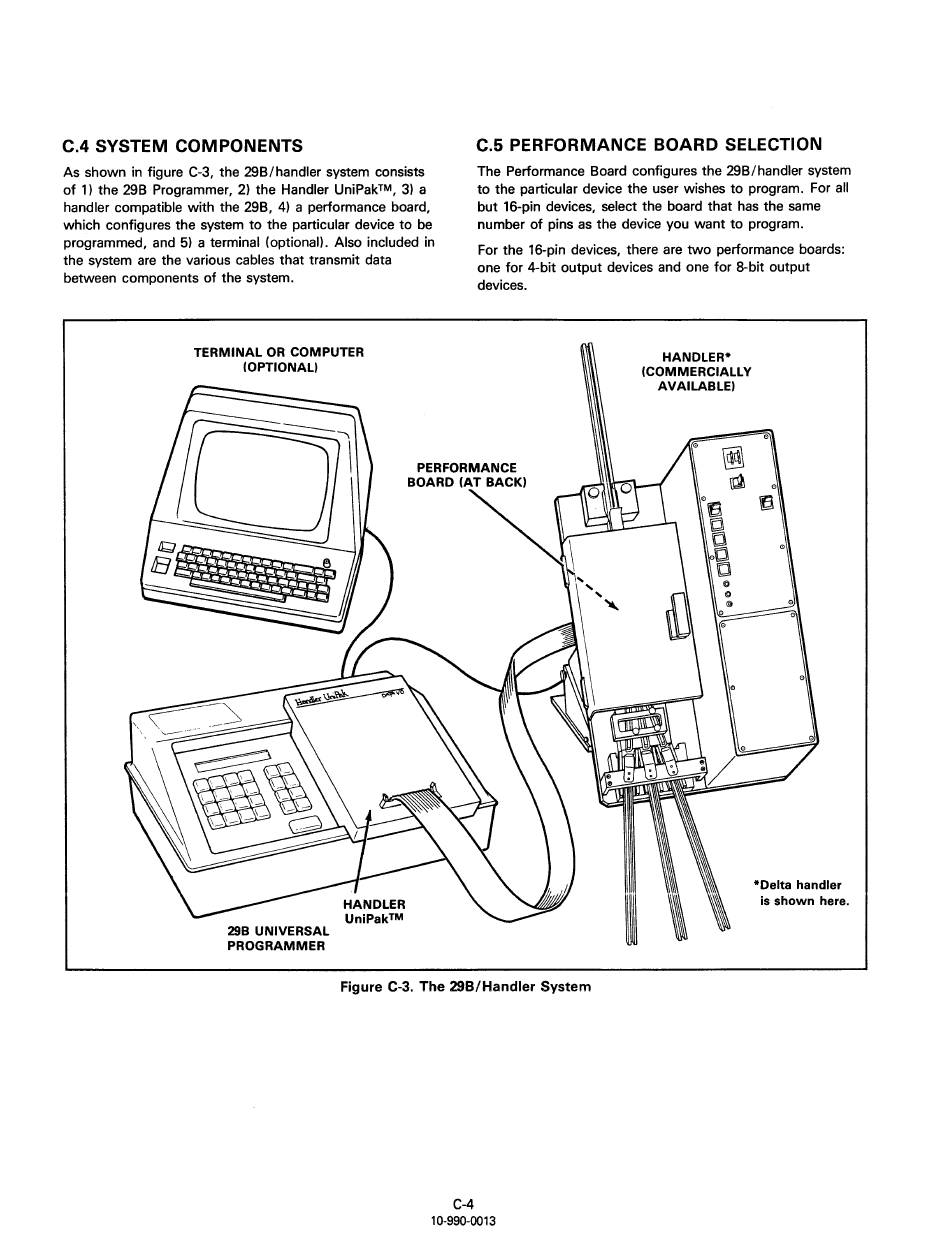

Figure C-3. The 298/Handler System
