9. ASSIGNMENT OF CIRCUIT BOARD COMPONENTS

9.1. TRANSMITTER DIRAS BOARDS (AS1642 & AS1652)
LDx transmitter cells
(8x)
SW1 address
LDx
SW1
9.2. RECEIVER DIRAS CIRCUIT BOARD (AS1643 & AS1653)
LDx receiver cells
(8x)
LDx receiver cells
(8x)
ICx
SW1

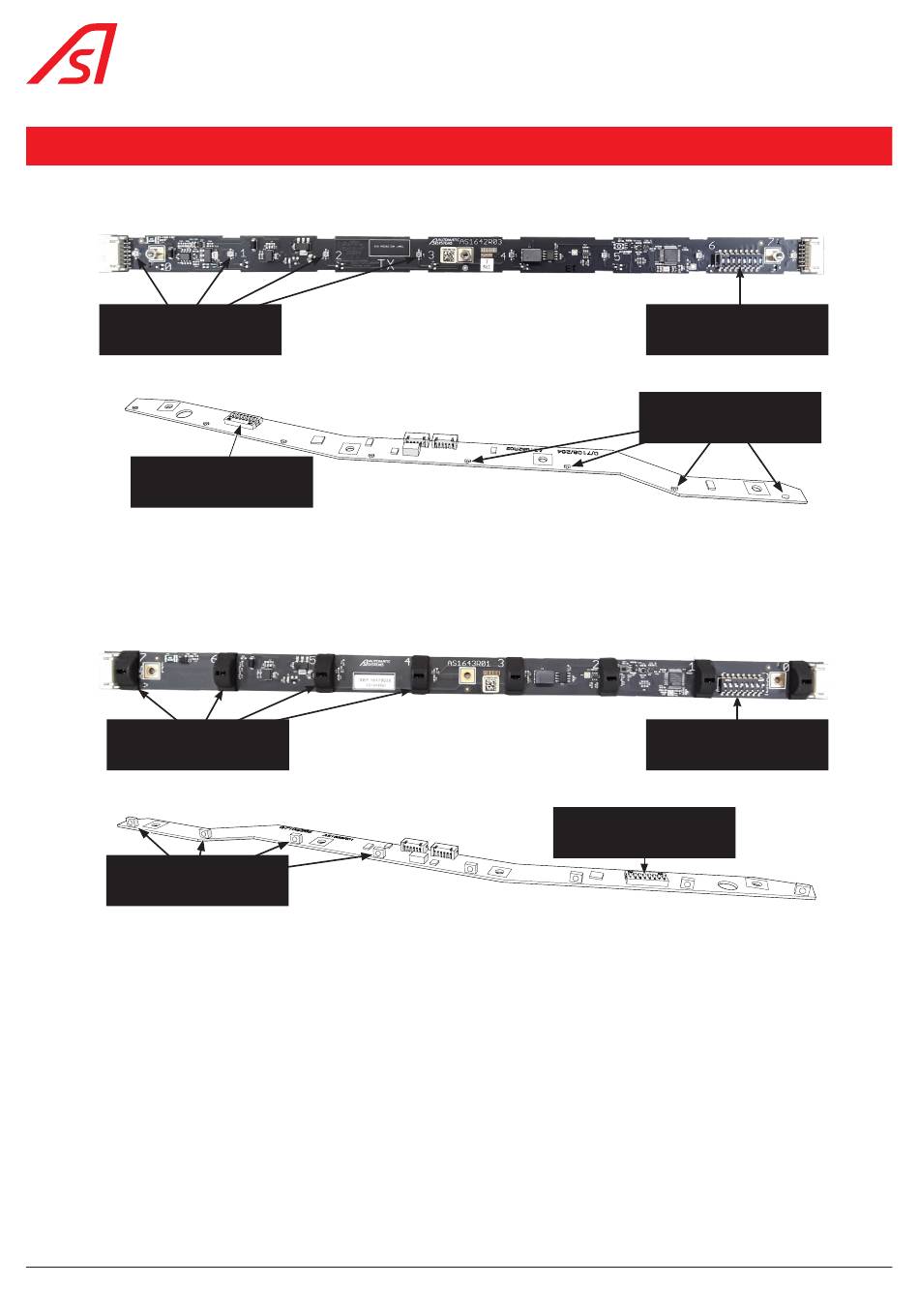

Fig. 103 - Assignment of components: AS1642 circuit board

Fig. 104 - Assignment of components: AS1652 circuit board

: Transmitter cell.
: Address of the circuit board in the CAN network ( see wiring diagrams).

Fig. 105 - Assignment of components: AS1643 circuit board

Fig. 106 - Assignment of components: AS1653 circuit board

: Receiver cell.
(The Receiver side of the cell is used during the circuit board self-test)
: Address of the circuit board in the CAN network ( see wiring diagrams).
SW1 address
