SmartLane

5.9. ELECTRICAL CONNECTIONS

Electrician's toolkit: screwdriver, cutting pliers, stripping pliers, etc.
The connections must be made in accordance with the installation drawings ( page 30) and electrical diagrams, which remain
the reference.
The power and control cables as defined on the installation plan are the responsibility of the user.
The control cables must be separated from the power cables to avoid interference.
PRIOR TO CONNECTING THE POWER SUPPLY, IT IS ESSENTIAL TO MAKE A GROUND CONNECTION USING A CABLE WITH
A MIN. CROSS SECTION OF 2.5 MM².
DO NOT CONNECT TO A FLOATING NETWORK OR TO A HIGH-IMPEDANCE EARTHED INDUSTRIAL DISTRIBUTION NETWORK.
For each lane:
• Remove the lateral panel of the cabinet located on the right-hand side, in direction of passage A  B ( Chap. 8.3.1, page 54).
• Switch off the power to the gate via the main circuit breaker ( Chap. 8.3, page 54).
• Then remove the side panels of the cabinet on your left.
The left panel on side A gives access to the inter-cabinet cable routing area.
The left side panel B gives access to the left/intermediate electronic board.
Using the CAN cable W49 (CAN 1), connect:
• the 4-pole through base (Fig. 16), on the RIGHT ( Fig. 16, page 25) or INTERMEDIATE ( Fig. 17, page 26) board
• to the CN9 connector of the AS1605 board, on the INTERMEDIATE ( Fig. 17, page 26) or LEFT board ( Fig. 18, page 27)
LEFT or INTERMEDIATE gate
CN9 (AS1605)
BE MINDFUL OF THE COLOUR OF THE WIRES WHEN CONNECTING THEM TO THE THROUGH BASE!
CONNECT THE SHIELDING PROPERLY!
(See electrical diagrams 1SL204.002B  1SL204.003A (See electrical diagrams 1SL204.002B  1SL204.003A

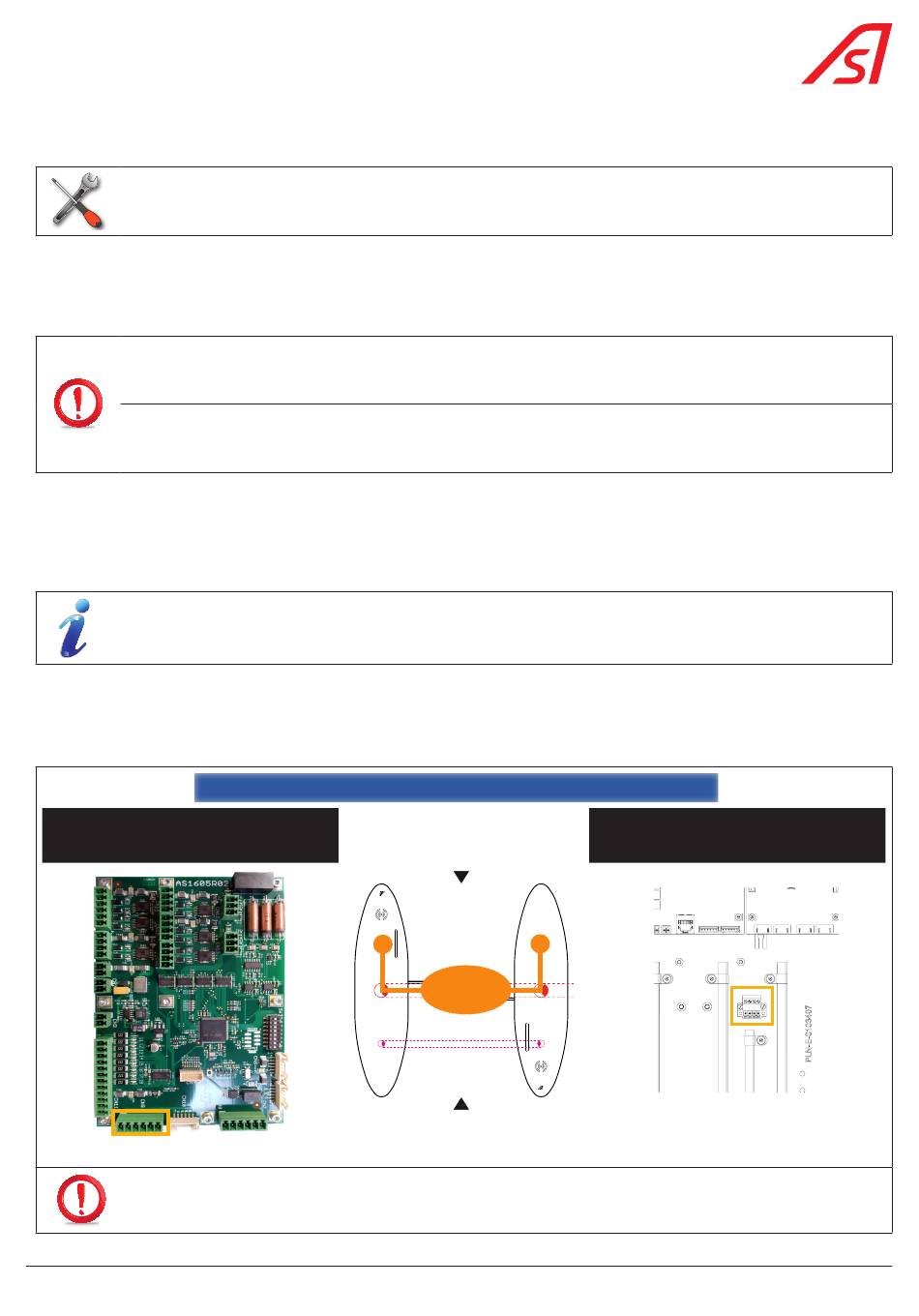

Fig. 31 - Inter-cabinet connection - W49

B
W49
A
35
RIGHT or INTERMEDIATE gate
4P through base
