8.24. REPLACING AND ADJUSTING THE BALANCE SPRING

8.24.1. REPLACING THE SPRING

1. Remove the right side panel on side A ( Chap. 8.3.1, page 54);
2. Turn off the power supply to the device. ( Chap. 8.3, page 54). If necessary, also cut the power supply to the adjacent lane;
3. Manually move the kinematics to the open position (obstacle fully retracted into the housing);
4. Lock the position of the obstacle ( Chap. 8.5, page 56) ;  [A]
5. Remove the fixing elements (1) from the compass (2) on the compass mount (3);  [B]
6. Rotate the compass to allow for slow dissipation of any potential energy still present in the balancing spring;  [C]
7. Using a 20 mm spanner, unscrew the lower spring pivot from the compass;  [D]
8. Manually place the kinematics in the closed position (obstacle completely out of the housing) and lock the mobile obstacle;
 [E]
The kinematics positioned in this way allows easy access to the upper pivot fixing screw;  [F]
9. Remove the upper pivot fixing screw and remove the spring;  [G]
10. Remove the clips and washers from the upper and lower pivots and remove both pivots;  [H]
IN AN INTERMEDIATE UNIT, IT WILL BE NECESSARY TO LOCK THE ADJACENT LANE OBSTACLE ALSO IN THE CLOSED
POSITION TO GAIN ACCESS TO THE UPPER PIVOT OF THE SPRING ASSEMBLY SAFELY!
A
E
11. Follow the same process in the reverse order for reassembly and, if necessary, do not release the obstacle in the adjacent
lane until the last moment.
B
2
3
1
F

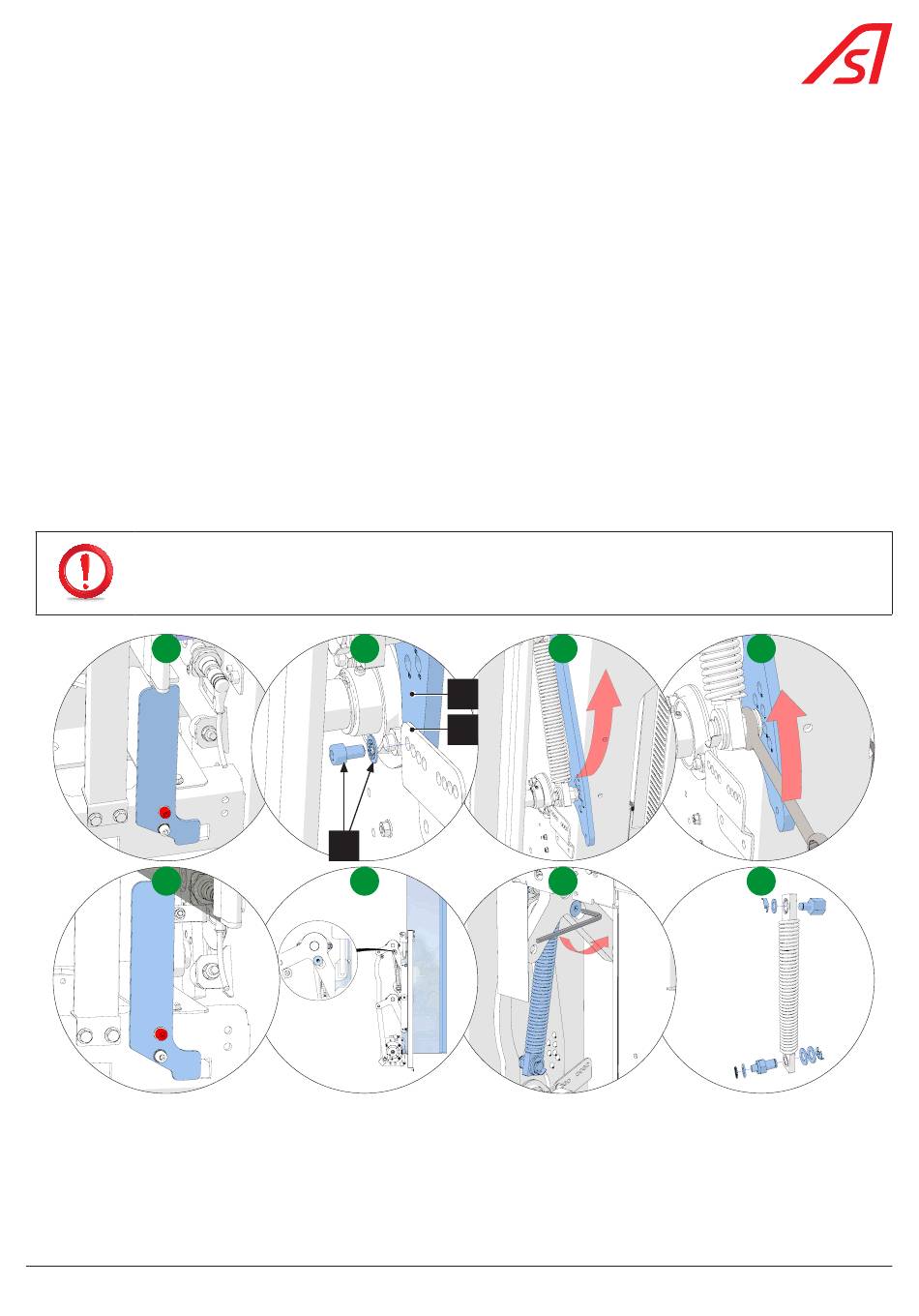

Fig. 93 - Removing the spring
