SmartLane
LD1 Green

LD 2  Green
LD 3 Green

LD 4  Yellow
LD 5 Red

LD 6 Green

LD 7  Green
LD 8 Green

LD 9  Green
LD 10 Green

LD 11 Green

LD 12  Green
LD 13 Green


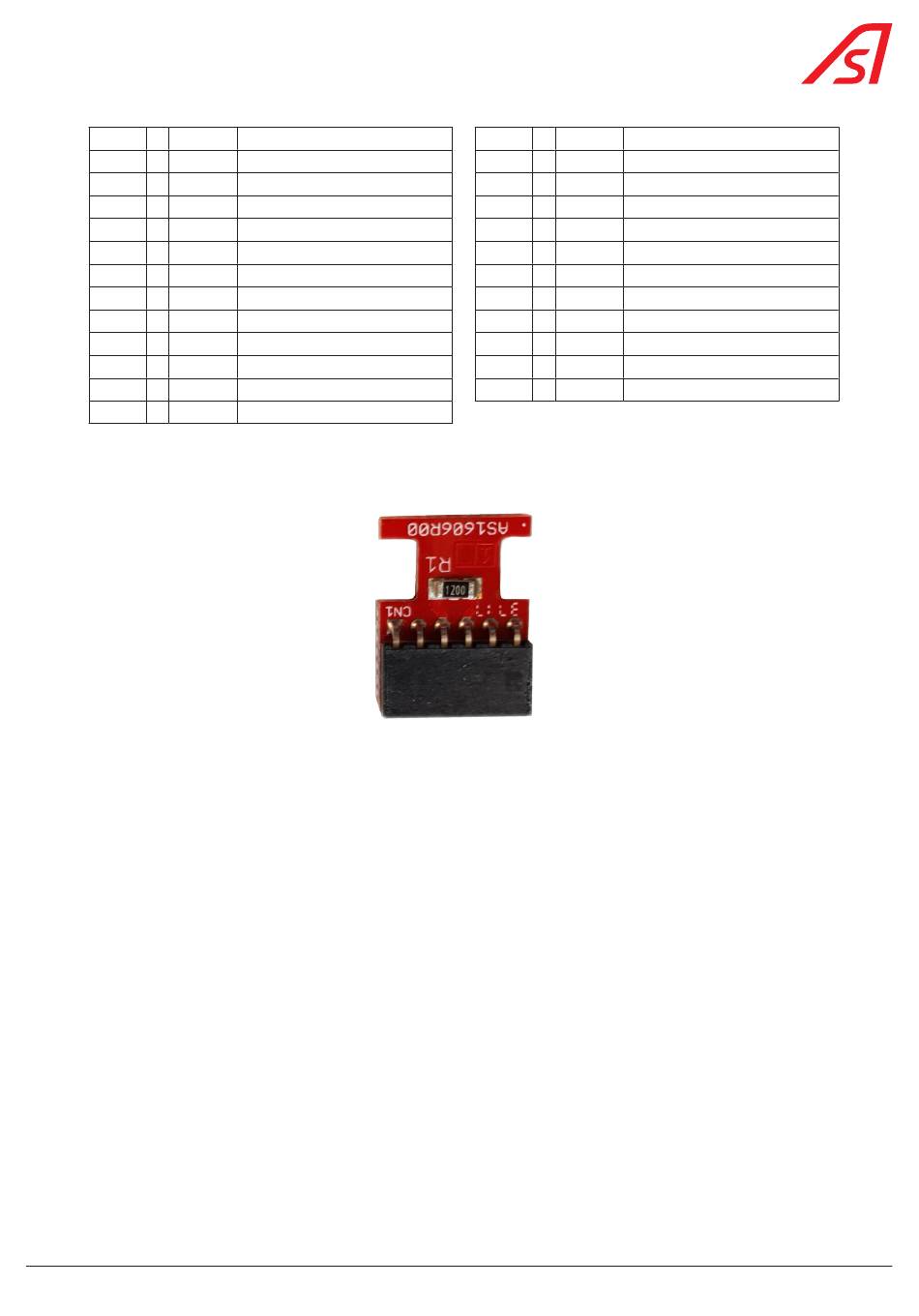

9.6. CAN END OF BUS CIRCUIT BOARD

This terminator is placed on the CAN connectors of the last DIRAS V3 circuit boards (E1 & R3).
3.3V presence indicator light
5V presence indicator light
Watchdog indicator light
CAN indicator light
Failsafe indicator light
Input 1 activity indicator light
Input 2 activity indicator light
Input 3 activity indicator light
Input 4 activity indicator light
Input 5 activity indicator light
Input 6 activity indicator light
Input 7 activity indicator light
Input 8 activity indicator light

Fig. 110 - CAN end of bus circuit board

LD 14 Yellow

LD15  Yellow
LD16 Yellow

LD17  Yellow
LD18: Yellow

LD19 Yellow

LD20  Yellow
LD21 Yellow

LD22  Yellow
LD23 Yellow

LD24 Yellow

LD25  Yellow
99
Dynamic status light 1 Green
Dynamic status light 1 Red
Dynamic status light 2 Green
Dynamic status light 2 Red
Dynamic status light Green
Dynamic status light Red
Dynamic orientation light Green
Dynamic orientation light Red
Dynamic status light White
Dynamic status light Blue
Output 2 activity indicator light (EM)
Output 1 activity indicator light (EM)
