6.4. MOBILE OBSTACLE

The passage obstacle consists of two (2) mobile obstacles ( Fig. 1, Chap. 4.7) that slide completely into the cabinet in the
open position, leaving the lane completely free.
To exclude any hazards for the user, the mobile obstacles are made of safety glass with rounded edges (no sharp edges).
The torque applied during closing is less than prescribed by the applicable safety standards, so that the obstacle can be
stopped by the user without any major impact (even in the case of children). The obstacles never close when a person is
detected in front of them (security zone).
The gaps between the obstacles and the cabinet are reduced to a minimum to prevent fingers being caught and unwanted
objects ending up inside the cabinet.

6.5. FIXED OBSTACLE

The purpose of the fixed obstacle is to prevent the passage over the cabinet of the gate and contributes to the overall
aesthetics of the lane by ensuring the visual continuity of the obstacles.
As soon as the height of the mobile obstacles is equal to or greater than 1200 mm (in relation to the floor), the gate shall always
be equipped with corresponding mobile obstacles.
The latter shall always be equipped with a detection system (individual cell or DIRAS cell) to increase the safety of the user
when passing through the obstacle area.
The fixed obstacle is located:
• After the moving obstacle in direction A  B for the right-hand gate;
• Between the moving obstacles for the intermediate gate;
• Before the mobile obstacle in direction A  B for the left gate.
B
A

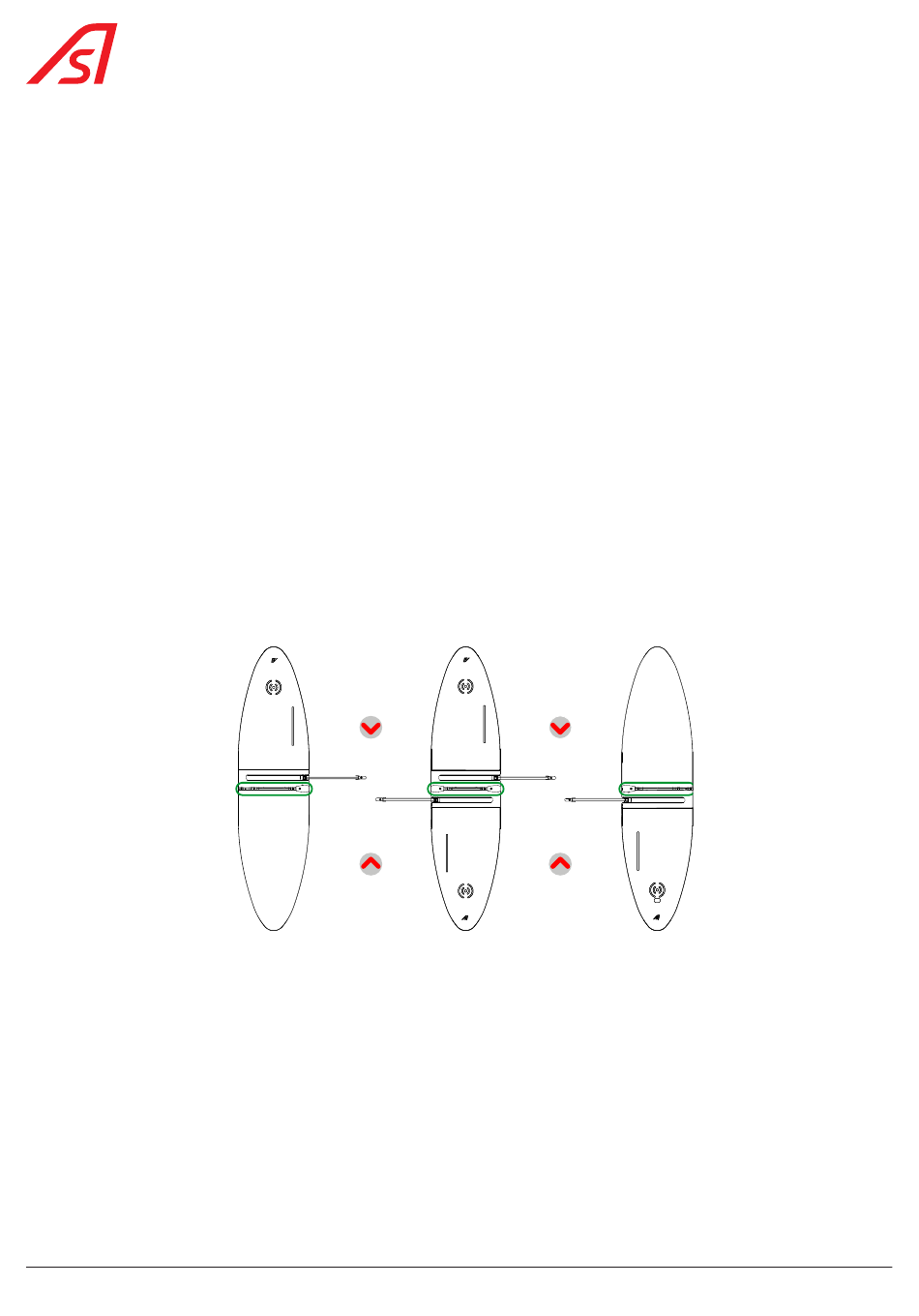

Fig. 48- Location of fixed obstacle(s)
