8.9. ADJUSTING THE FIXED OBSTACLE
The integrated adjustment system makes it possible to adjust:
• The perpendicularity of the fixed obstacle in relation to the unit shelves.
• And/or the parallelism of the fixed obstacle in relation to the mobile obstacles.
2
Fixing screws
1. Switch off the unit ( Chap. 8.3, page 54) and remove all side panels;
2. Lock the mobile obstacle(s) in the open position ( Chap. 8.5, page 56)
90°

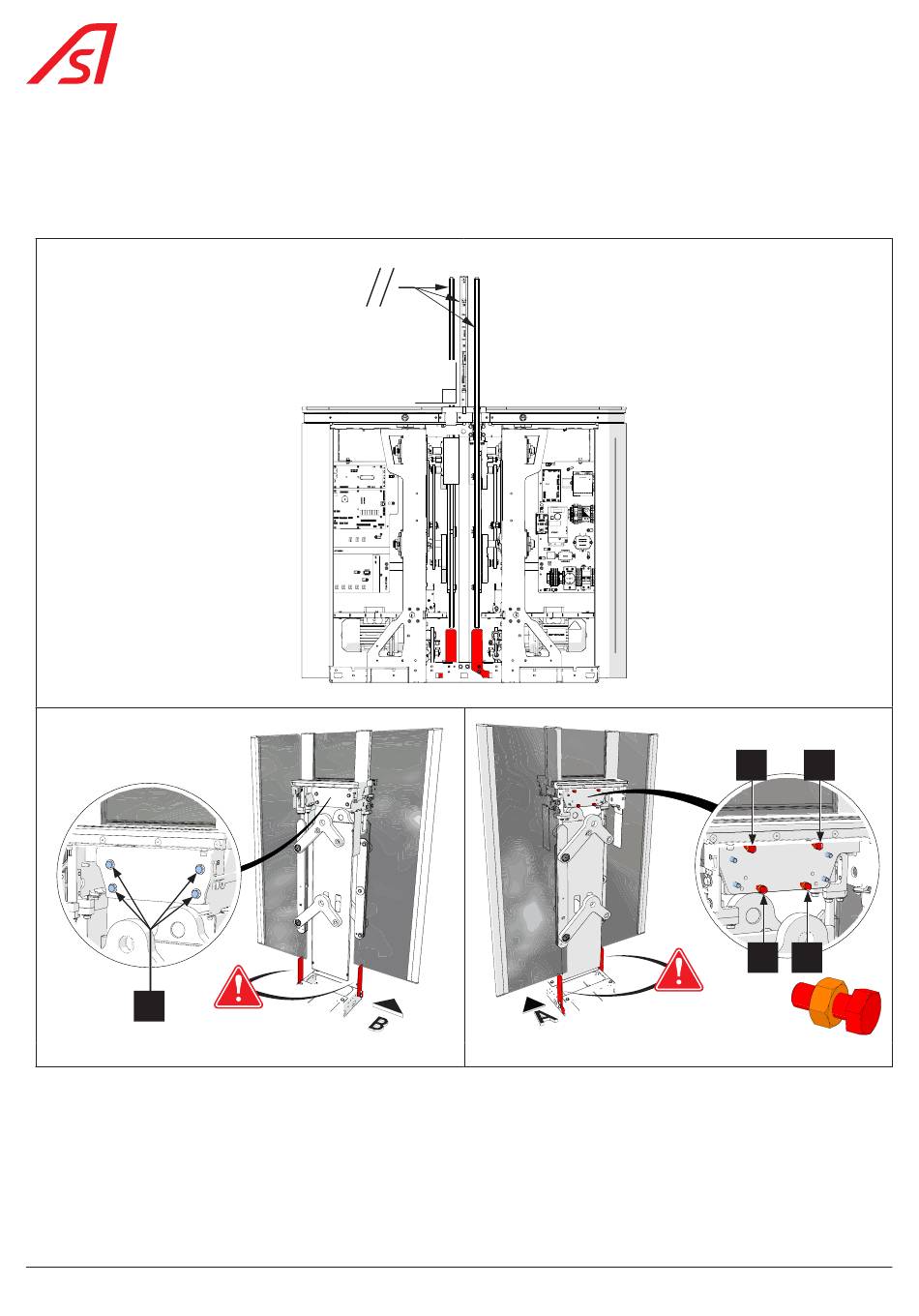

Fig. 64 - Adjusting the fixed obstacle
60
SmartLane
B
Adjustment screws + lock nuts
B'
A
A'
