8.16. INSTALLING THE COVER PLATE

1. Align the plate fixing spacer with the round shape of the slide rail closest to the nose of the gate;
2. Position the plate so that the space between the spacer and the lock nut fits into the channel of the rail;
3. Slide the cover plate ± 20 mm towards the centre of the gate so that the two (2) butterfly screws are correctly positioned
in the slots of the frame. ( Fig. 79)
4. Tighten the two (2) butterfly screws to secure the plate.
For a long plate, also fix the plate on the opposite side with two (2) butterfly screws.
THE NUT A ( FIG. 76) IS SET AT THE FACTORY TO ENSURE THAT THE COVER PLATE IS MOUNTED WITHOUT GAP.
PLEASE DO NOT TIGHTEN THIS NUT AFTER THE COVER PLATE HAS BEEN INSTALLED, AS THIS MAY DEFORM THE COVER
PLATE AND/OR CAUSE IT TO COME OFF.
2

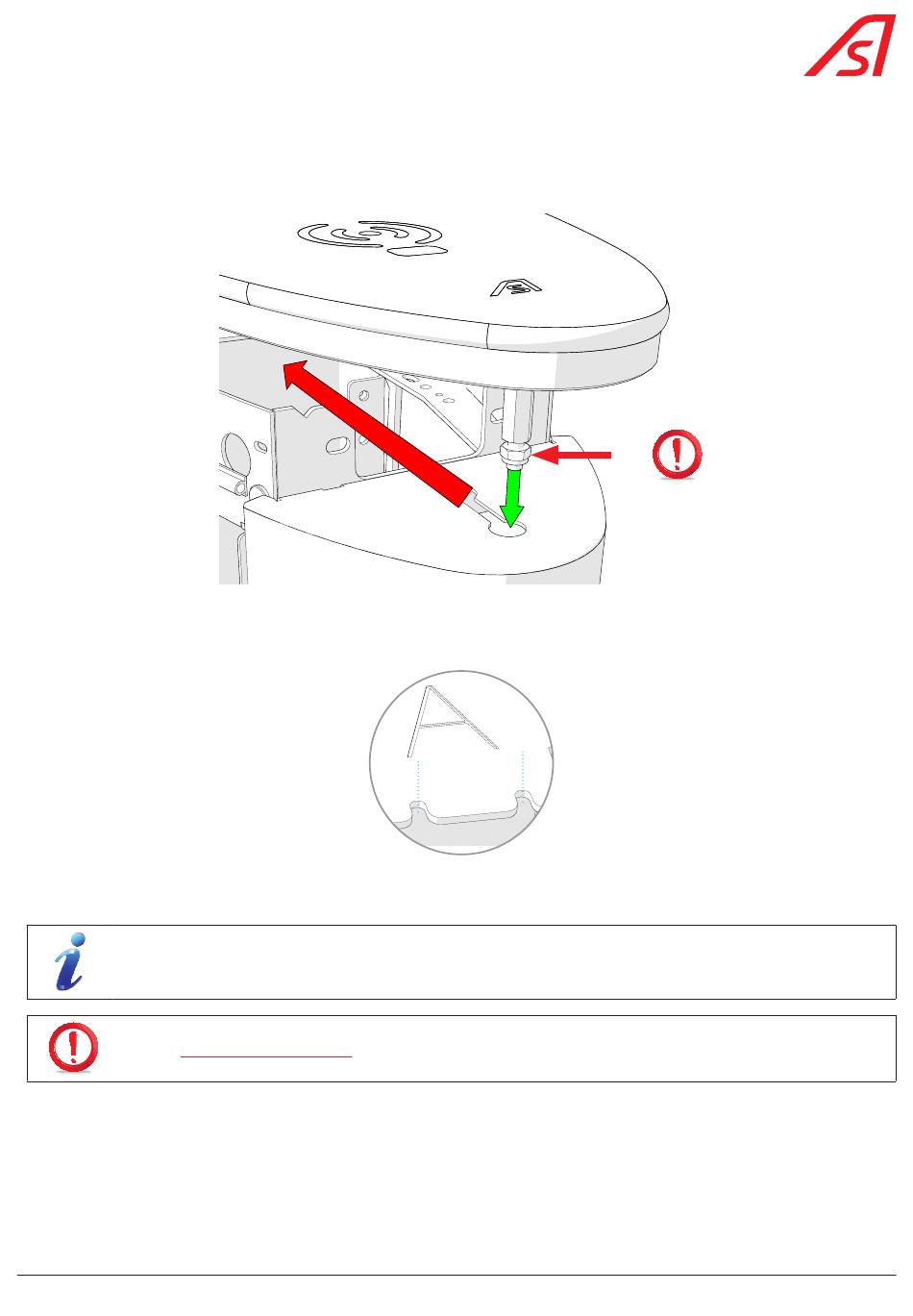

Fig. 78 - Installing the cover plate

Fig. 79 - Installing the cover plate - Frame fixing points
