For a REFLEX cell: ( Fig. 90)
4. Without unscrewing it, loosen the pressure screw (7') of the cell support (8') so as to disconnect the cell assembly from
the fixed obstacle (9);
5. Disconnect the cell from the AS1603 or AS1605 board (depending on the configuration) and remove all the fixing points of
the cell cable all along its path;
6. Remove the fixing elements (10) of the ground cable on the cell support;
7. Remove the cell support assembly by sliding it upwards into the aluminium profile (6).
8. Remove the two (2) fixing screws (11) and lock nuts (12) to remove the cell;
9
8'
7'
10
If necessary, and to make it easier to extract the REFLEX cell cable under the fixed obstacle, without unscrewing
them, loosen the fixing screws holding the fixed obstacle in the clamp.
! DO NOT FORGET TO REATTACH THE OBSTACLE ONCE THE CELL HAS BEEN REPLACED !
9. Place the new cell on the support and put the assembly back into the aluminium profile while making the cable follow the
same path to the AS1603 or AS1605 electronic board (depending on the configuration);
10. Fix the cell assembly in the aluminium profile and reattach the ground cable correctly;
11. Replace the side panels with the exception of the side panel - side A giving access to the power board;
12. Switch on the gate and wait for the end of the restart phase;
13. Check the status of the gate via the maintenance interface and mainly the status of the fixed obstacle cell. If necessary,
adjust the REFLEX cell ( Chap. 8.22, page 76);
14. Switch the device off again and fit the protective screen (5) into the aluminium profile, finishing by fitting the plug;
15. Turn on the power supply to the device;
16. Replace the right side panel - side A.

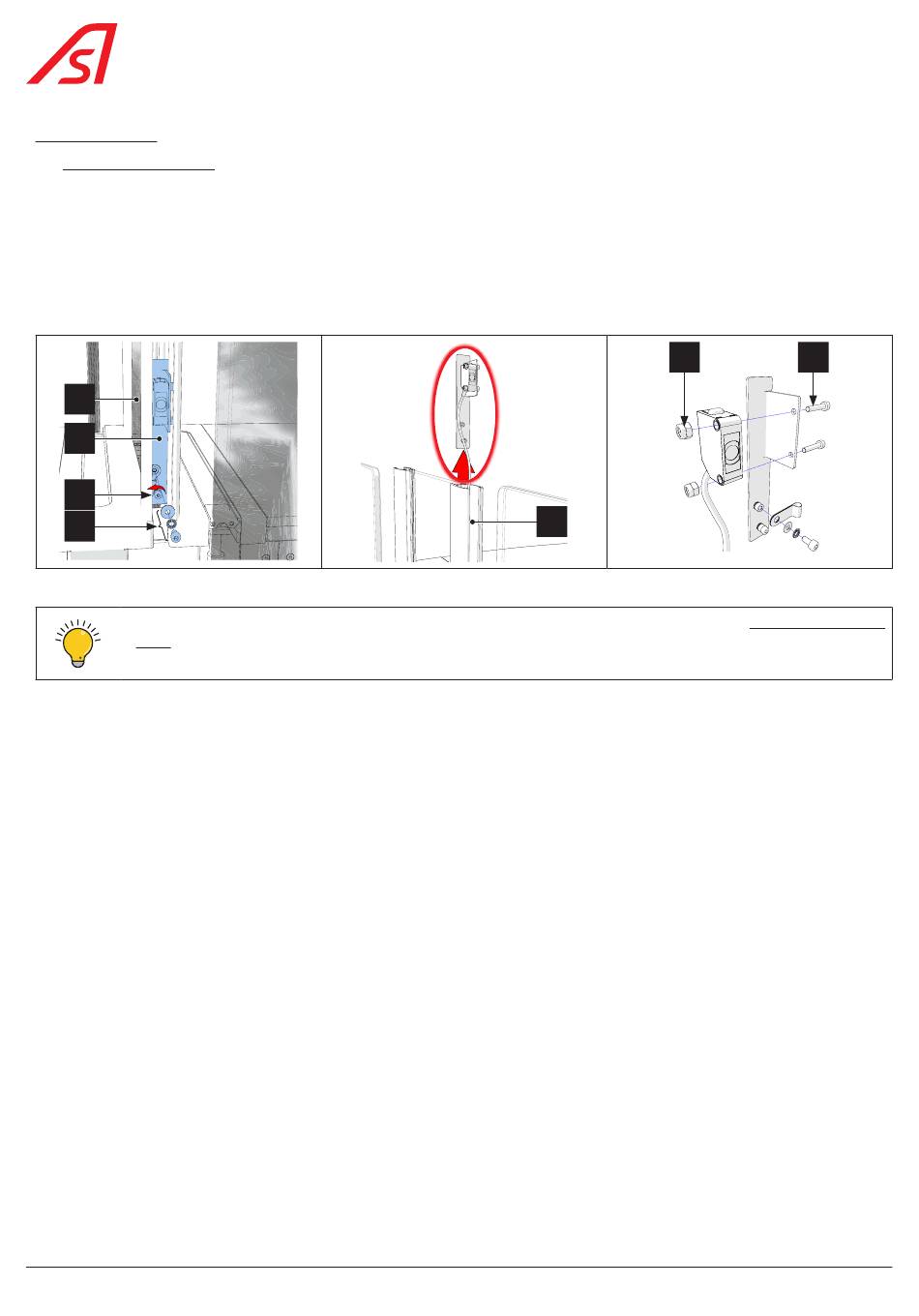

Fig. 90 - Removing the REFLEX cell

78
