5.7. UNPACKING

Unpack the device(s) without damaging it.
Sort the various components of the packaging and recycle them appropriately.

5.8. INSTALLING THE EQUIPMENT

NB!
THE EQUIPMENT MUST BE ANCHORED TO THE FLOOR BEFORE BEING MADE ACCESSIBLE TO USERS!
AUTOMATIC SYSTEMS CANNOT BE HELD RESPONSIBLE FOR ANY ACCIDENT OR DAMAGE TO EQUIPMENT DUE TO
IMPROPER FLOOR ANCHORING.

5.8.1. HANDLING

The equipment can be handled:
• By means of bars or slings passed through the openings (A) provided in the frame.
A
• Using a forklift or a pallet truck. In both cases, the lifting force must be applied to the fixed frame ( Ref. 1, Chap. 4.8).

5.8.2. FLOOR ANCHORING

Each cabinet is anchored to the floor by means of two (2) clamps, two (2) anchor bolts, two (2) flat washers and two (2) M10
nuts.
Each extension, if any, is anchored to the floor by means of two (2) anchor bolts.
The location of the anchoring points is shown on the installation drawing corresponding to the type of gate (Standard or Wide),
Chap. 5.6, page 30
To anchor the appliance to the floor, Automatic Systems supplies, in addition to the two (2) fixing clamps,
two (2) M10 anchor bolts, designed for use in concrete, which must be tightened with a minimum torque
of 50 Nm.
If another type of anchor bolt is used than the one indicated above, refer to the manufacturer's instructions.

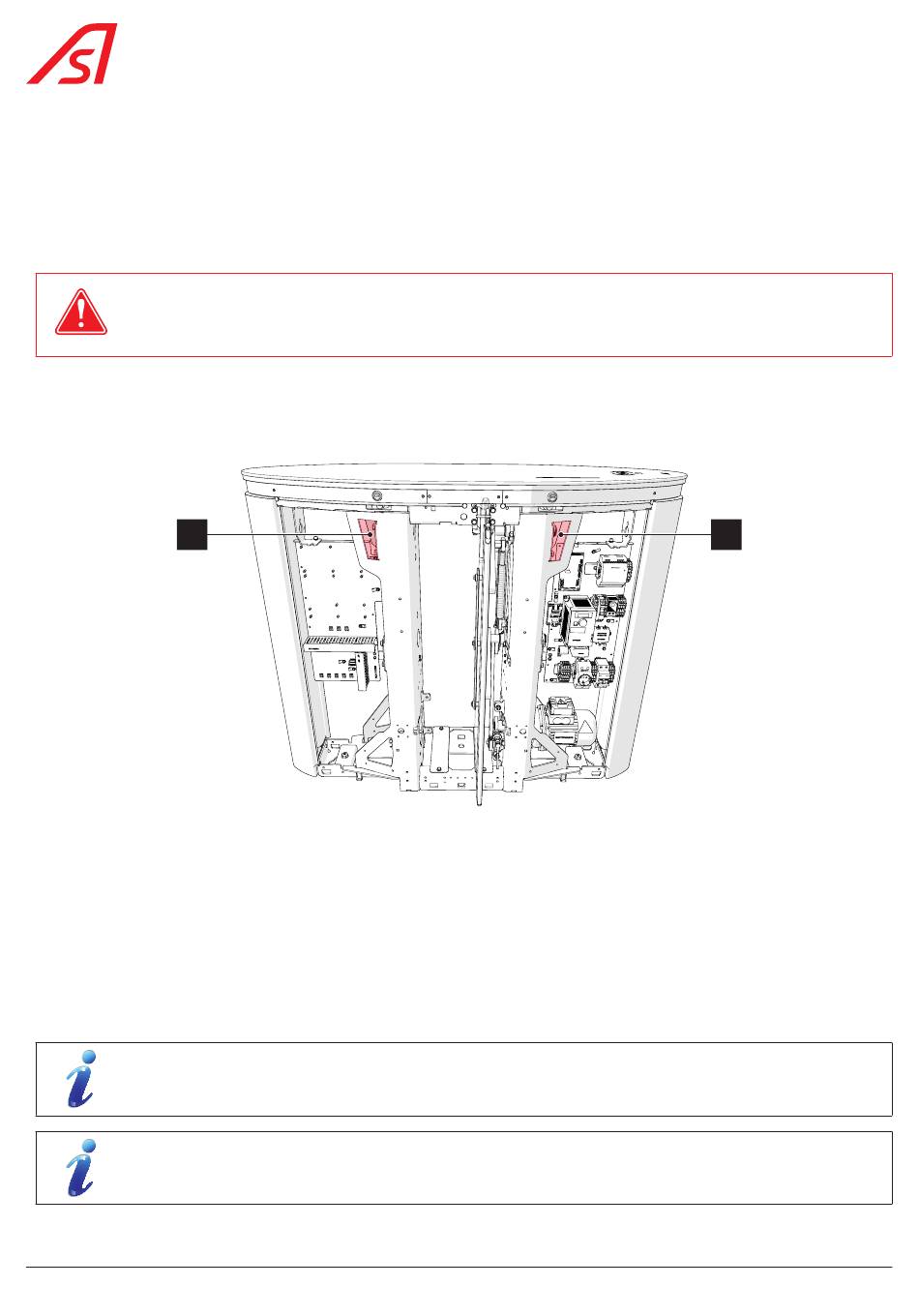

Fig. 26 - Handling

32
SmartLane
A
