Removal Of The Soft Stop; Fig. 92 - Removal Of The Soft Stop - Automatic Systems SmartLane Technical Manual

When the beam is exactly perpendicular to the strip of the transmitter cell, the strip could act as a mirror and
reflect the beam, which is then not detected.
To remedy this, slightly misalign the cell by acting on its support.
• If one of these tests is not satisfactory, repeat the entire adjustment from step 1.

8.23. REMOVAL OF THE SOFT STOP

THIS OPERATION MUST BE CARRIED OUT EVERY YEAR OR EVERY 1,000,000 CYCLES!
1. In order to remove the soft stop, you must first remove the right-hand removable panel on side A ( Chap. 8.3.1, page 54)
and switch off the device ( Chap. 8.3, page 54);
2. Then remove the side panels on either side of the stop to be replaced ( Chap. 8.3.1);
3. Set the kinematics to maintenance mode, as for changing a mobile obstacle ( Chap. 8.10, page 62);
4. Unscrew the nut (2) and remove the fan washer (3);
5. Remove the soft stop from its support and put it aside.
6. Follow the same process in reverse order to install the new stop.
1 3 2

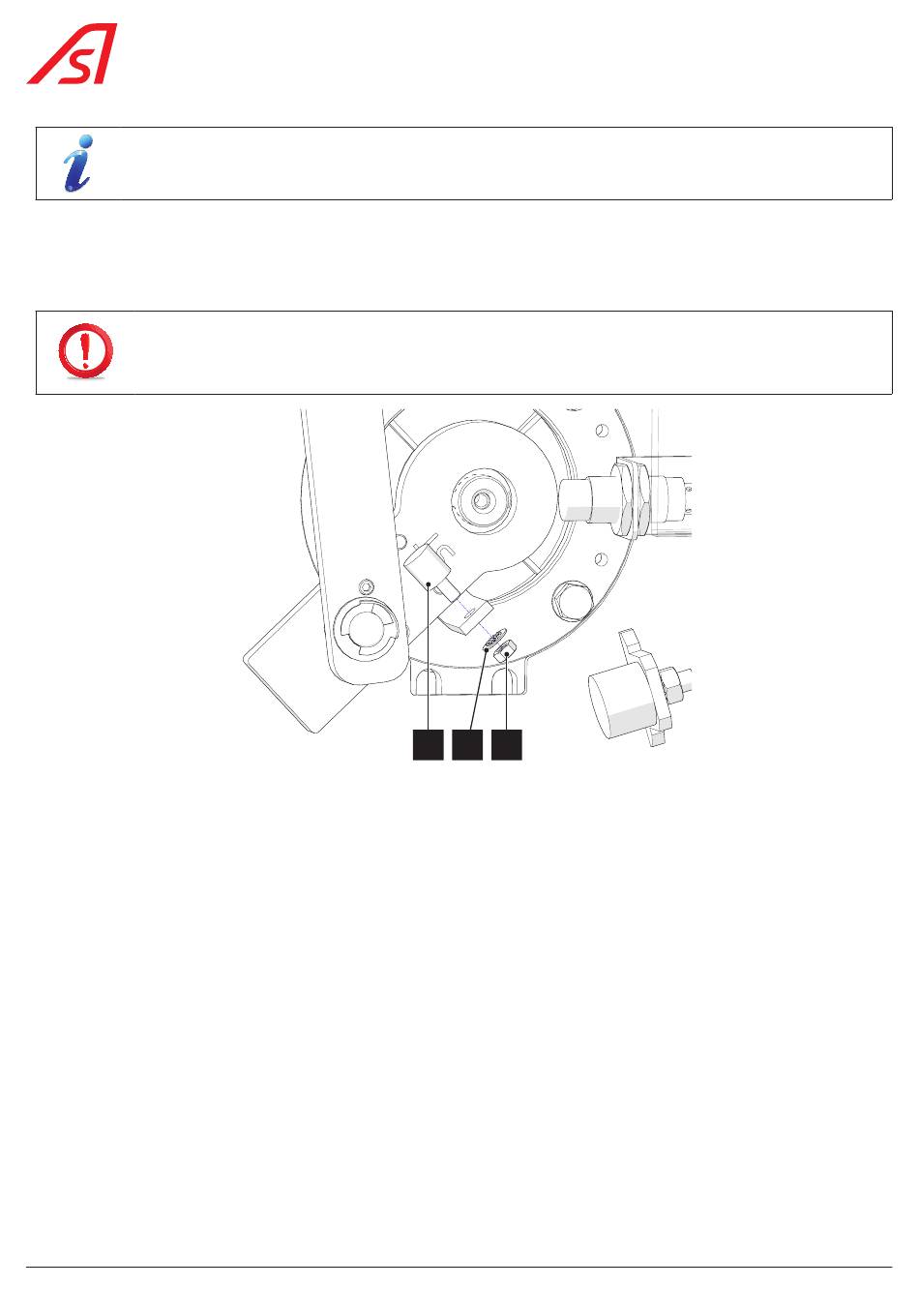

Fig. 92 - Removal of the soft stop
