Fig. 29 - Drilling / Dust Removal; Fig. 30 - Clamping Principle - Automatic Systems SmartLane Technical Manual

2. Drill the two anchoring points of the equipment into the floor using a concrete drill, 15 mm dia., to a depth of 100 mm.
3. Remove dust from the drilled holes.
4. Insert into each of the holes an expansion plug, supplied by Automatic Systems, taking care to leave the threaded rod of
the expansion plug protruding at least 50 mm above the finished floor level once the plug is anchored in the floor.
5. Place the device frame on top of the expansion plugs, taking care not to damage the various cables and orientate it
according to the installation plan page 30.
6. Place the fixing clamps and the anchoring elements provided for this purpose (flat washers and M10 nuts), without
tightening.
7. Adjust the base of the appliance by placing shims under the frame if necessary.
8. After adjusting the base, properly fasten the equipment.
Flat spanner set or ratchet wrench with extension and 17 socket.
2 3
Ø 15

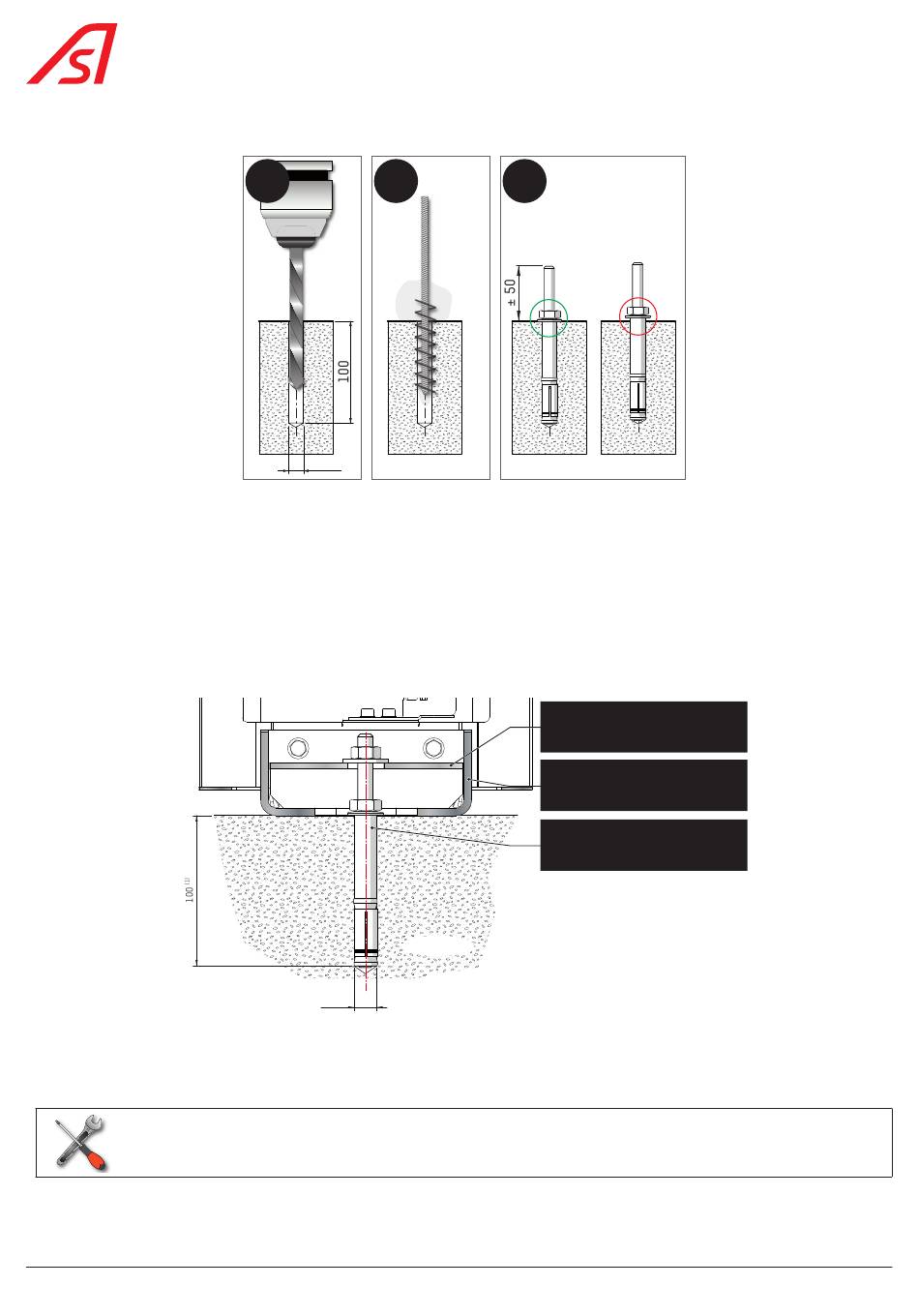

Fig. 29 - Drilling / Dust removal

Concrete
Ø 15
(2)

Fig. 30 - Clamping principle

4

Fixing clamp
(Ref. 11, Chap. 4.8)
Base frame
(Ref. 1, Chap. 4.8)
Anchoring pin
Drilling depth
(1)
Drilling dia.
(2)
34
