8.5. LOCKING THE MOBILE OBSTACLE IN THE OPEN/CLOSED POSITION

Set of Allen keys.
In order to increase the safety of the technician during the various maintenance operations, a device for locking the obstacle
is integrated in the gate.
To enable this device, mobile obstacle in open and closed position:
1. Unlock the system by removing the screw (2), the fan washer (3) and the flat washer (4);
DO NOT TOUCH THE SCREW (A) AS IT IS FACTORY FITTED WITH A LOCK NUT, ALL ADJUSTED WITH A SUITABLE
TIGHTENING!
2. Manually move the obstacle to the open or closed position;
3. Rotate the locking plate (1) 90° around the screw (A) in an anti-clockwise direction and position it under the mobile
obstacle to prevent it from moving.
In the same movement, the rear part of the blocking plate obstructs the passage of the side panel, preventing the panel
from being inserted when the locking device is active.
A
4
3
2
Locking system to idle
Unlocking the system
Obstacle locked open

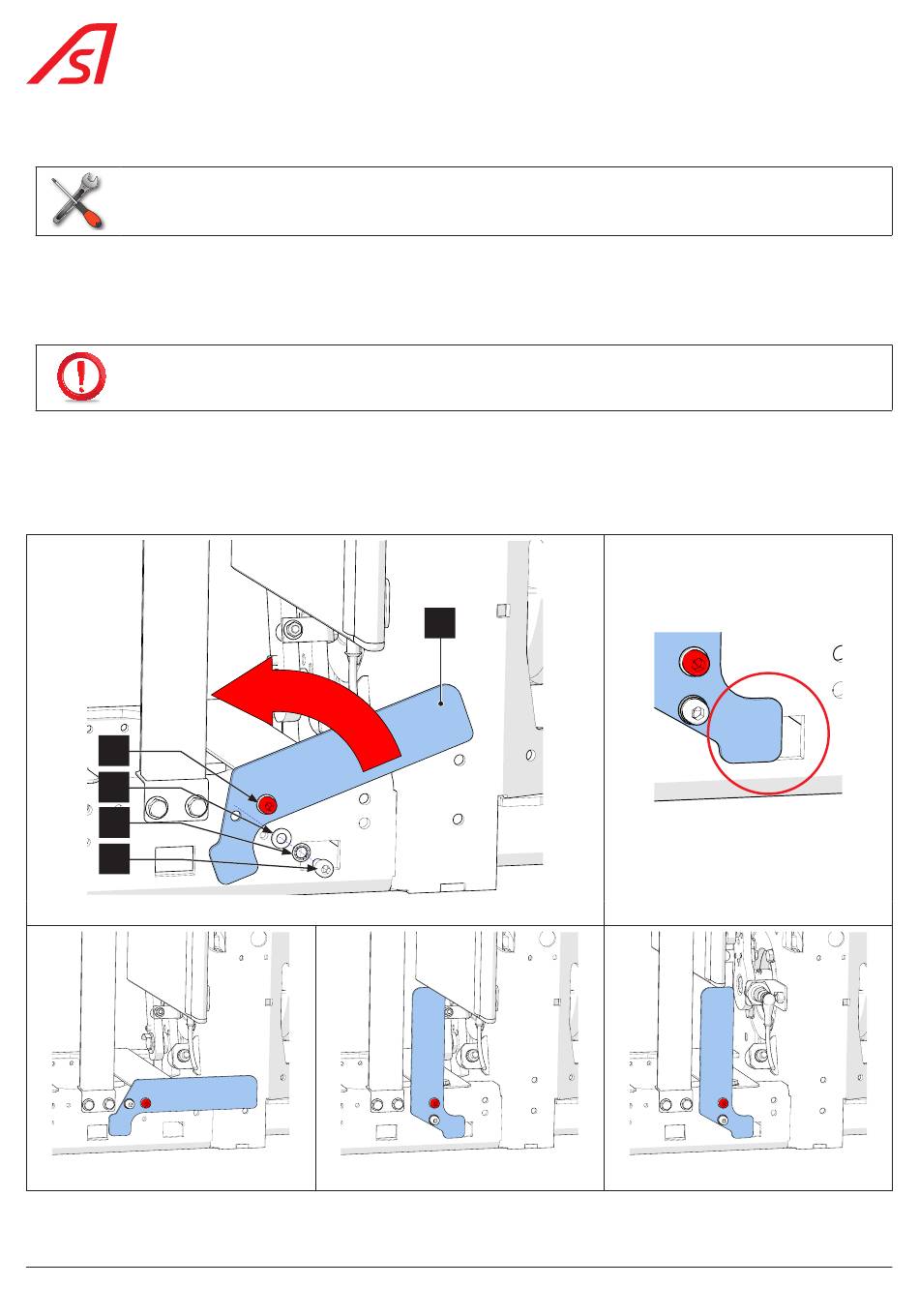

Fig. 61 - Locking/unlocking of the mobile obstacle

1
56
SmartLane
Side panel passage blocking
Obstacle locked closed
