SmartLane

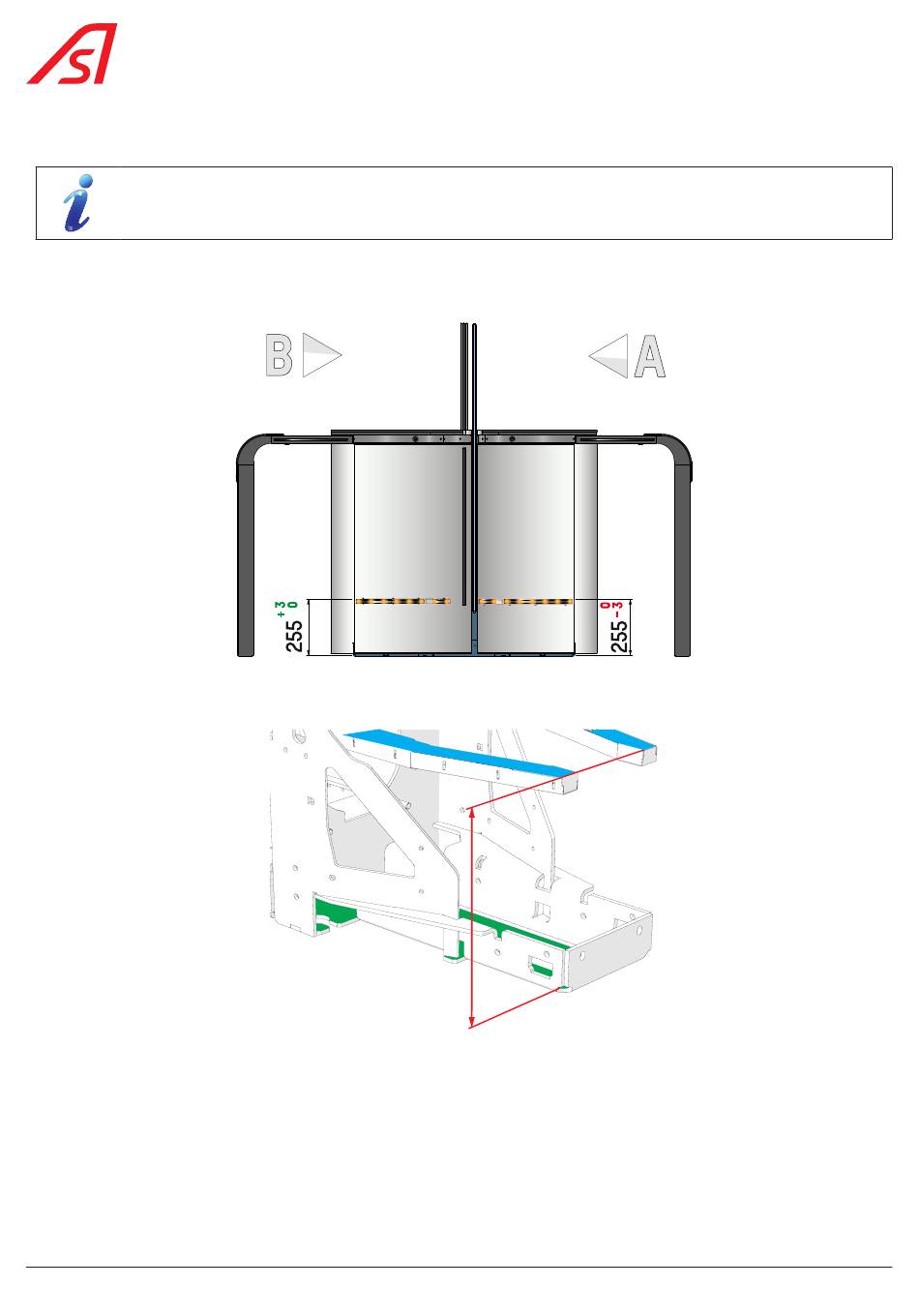

8.27. ADJUSTING THE HEIGHT OF THE DIRAS 'TROLLEY DETECTION' CELLS
Detection cells available as an option.
The height of the 'Trolley' detection cells must be precisely adjusted so that the cell beams pass correctly through the openings
in the side panels.
The heights to be observed are shown below:
E6H or R6H
E5H or R5H
Fig. 99 - Trolley detection cell height
How to take the measurement:
B
A
Fig. 100 - Measuring the height of the Trolley detection cells
The correct measurement is taken from the base of the frame (inside) [A] to the top surface of the DIRAS support [B].
86
