Installing the Device

3.4.1

Embedding in an 86-type Panel

(1) Use a screwdriver to disassemble the 86-type panel on the wall. (If there is no 86-type
panel, ignore this step.)

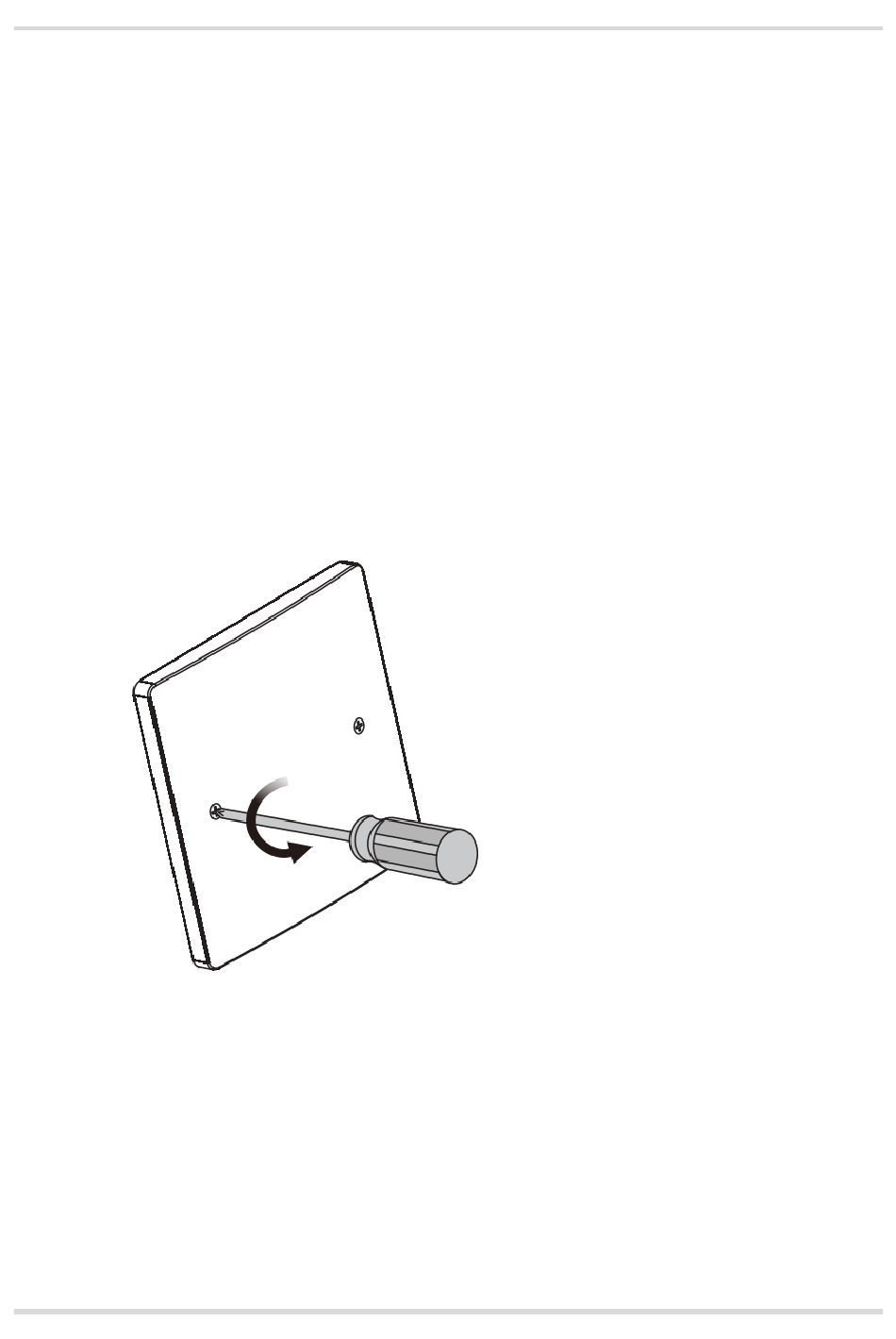

Figure 3-3 Removing the 86-type Panel
(2) Align the round groove holes on the left and right sides of the mounting bracket with
the screw holes on the 86-type panel and use the two M4 x 20 Phillips pan head screws
delivered with the device to secure the mounting bracket on the 86-type panel.
