FEATURES
Multiformat video decoder supports NTSC-(M, J, 4.43),
PAL-(B/D/G/H/I/M/N), SECAM
Integrates three 54 MHz, 9-bit ADCs
Clocked from a single 27 MHz crystal
Line-locked clock-compatible (LLC)
Adaptive Digital Line Length Tracking (ADLLT™),
signal processing, and enhanced FIFO management
give mini-TBC functionality
5-line adaptive comb filters
Proprietary architecture for locking to weak, noisy, and
unstable video sources such as VCRs and tuners
Subcarrier frequency lock and status information output
Integrated AGC with adaptive peak white mode
®
Macrovision
copy protection detection
Chroma transient improvement (CTI)
Digital noise reduction (DNR)
Multiple programmable analog input formats
Composite video (CVBS)
S-Video (Y/C)
YPrPb component (VESA, MII, SMPTE, and BetaCam)
6 analog video input channels
Automatic NTSC/PAL/SECAM identification
Digital output formats (8-bit or16-bit)
ITU-R BT.656 YCrCb 4:2:2 output + HS, VS, and FIELD
0.5 V to 1.6 V analog signal input range
Differential gain: 0.6% typ
Differential phase: 0.6° typ
GENERAL DESCRIPTION
The ADV7181B integrated video decoder automatically detects
and converts a standard analog baseband television signal
compatible with worldwide standards NTSC, PAL, and SECAM
into 4:2:2 component video data compatible with 16-bit/8-bit
CCIR601/CCIR656.
The advanced, highly flexible digital output interface enables
performance video decoding and conversion in line-locked
clock-based systems. This makes the device ideally suited for a
broad range of applications with diverse analog video charac-
teristics, including tape-based sources, broadcast sources,
security/surveillance cameras, and professional systems.
The six analog input channels accept standard composite,
S-Video, and YPrPb video signals in an extensive number of
combinations. AGC and clamp restore circuitry allow an input
video signal peak-to-peak range of 0.5 V to 1.6 V. Alternatively,
these can be bypassed for manual settings.
Rev. B
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
Downloaded from
Elcodis.com
electronic components distributor
Multiformat SDTV Video Decoder
Programmable video controls
Peak white/hue/brightness/saturation/contrast
Integrated on-chip video timing generator
Free-run mode (generates stable video output with no I/P)
VBI decode support for
close captioning, WSS, CGMS, EDTV, Gemstar® 1×/2×
VBI decode support for
close captioning, WSS, CGMS, EDTV, and
Gemstar® 1×/2×
Power-down mode
2-wire serial MPU interface (I
3.3 V analog, 1.8 V digital core; 3.3 V IO supply
Temperature grade: –40°C to +85°C

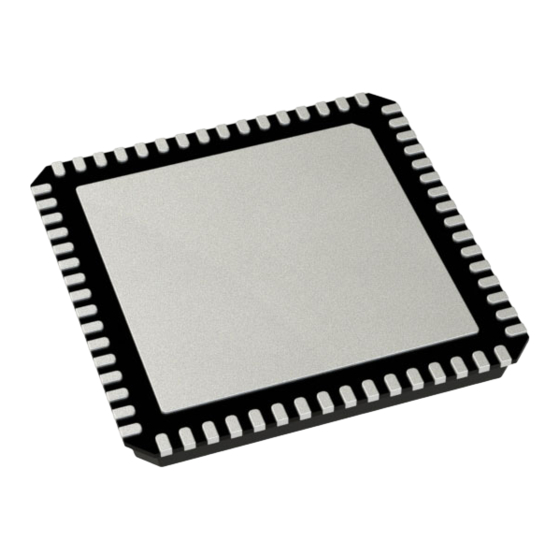

64-lead LQFP Pb-free package and 64-lead LFCSP package
APPLICATIONS
DVD recorders
PC video
HDD-based PVRs/DVDRs
LCD TVs
Set-top boxes
Security systems
Digital televisions
Portable video devices
Automotive entertainment
AVR receivers
The fixed 54 MHz clocking of the ADCs and datapath for all
modes allows very precise, accurate sampling and digital
filtering. The line-locked clock output allows the output data
rate, timing signals, and output clock signals to be synchronous,
asynchronous, or line-locked even with ±5% line length
variation. The output control signals allow glueless interface
connections in almost any application. The ADV7181B modes
are set up over a 2-wire, serial, bidirectional port (I
The ADV7181B is fabricated in a 3.3 V CMOS process. Its
monolithic CMOS construction ensures greater functionality
with lower power dissipation.
The ADV7181B is available in two packages, a small 64-lead
LQFP Pb-free package and a 64-lead LFCSP package.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
© 2005 Analog Devices, Inc. All rights reserved.
ADV7181B
2
C®-compatible)
2
C-compatible).
www.analog.com
