Auger Installation - Chore-Time H2 PLUS Installation & Operator's Instruction Manual

Model H2™ Plus Feeding Systems
Installing the End Control, Boot Assembly, and Auger
The End Control Unit must be at least 10 feet [3 m] from the end of the building to allow birds access around
the end of the feeder line.
1. Assemble the End Control Unit to the Feeder Line Control Tube using a clamp/anti-roost
bracket. See Figure 32. DO NOT INSTALL THE POWER UNIT AT THIS TIME.
2. Install the Feeder Boot by sliding the straight end of the Feeder Boot into the belled end of the
Feeder Tube. Install a clamp/anti-roost bracket on the bell and tighten. The Feeder Boot must
be level with the open top of the Feeder Boot flat. See Figure 33.
DO NOT INSTALL THE ANCHOR BEARING AND BEARING RETAINER AT THIS
TIME.

Auger Installation

Note: Use extreme caution when working with the auger. The auger is under tension and may
spring causing personal injury. Wear protective clothing, gloves, and safety glasses when
working with the auger.
To avoid kinking the auger, be careful not to drop the rolled auger when handling. Inspect the auger carefully
as it is installed. Small kinks may be straightened. Large kinks must be removed and the auger brazed back
together.
18

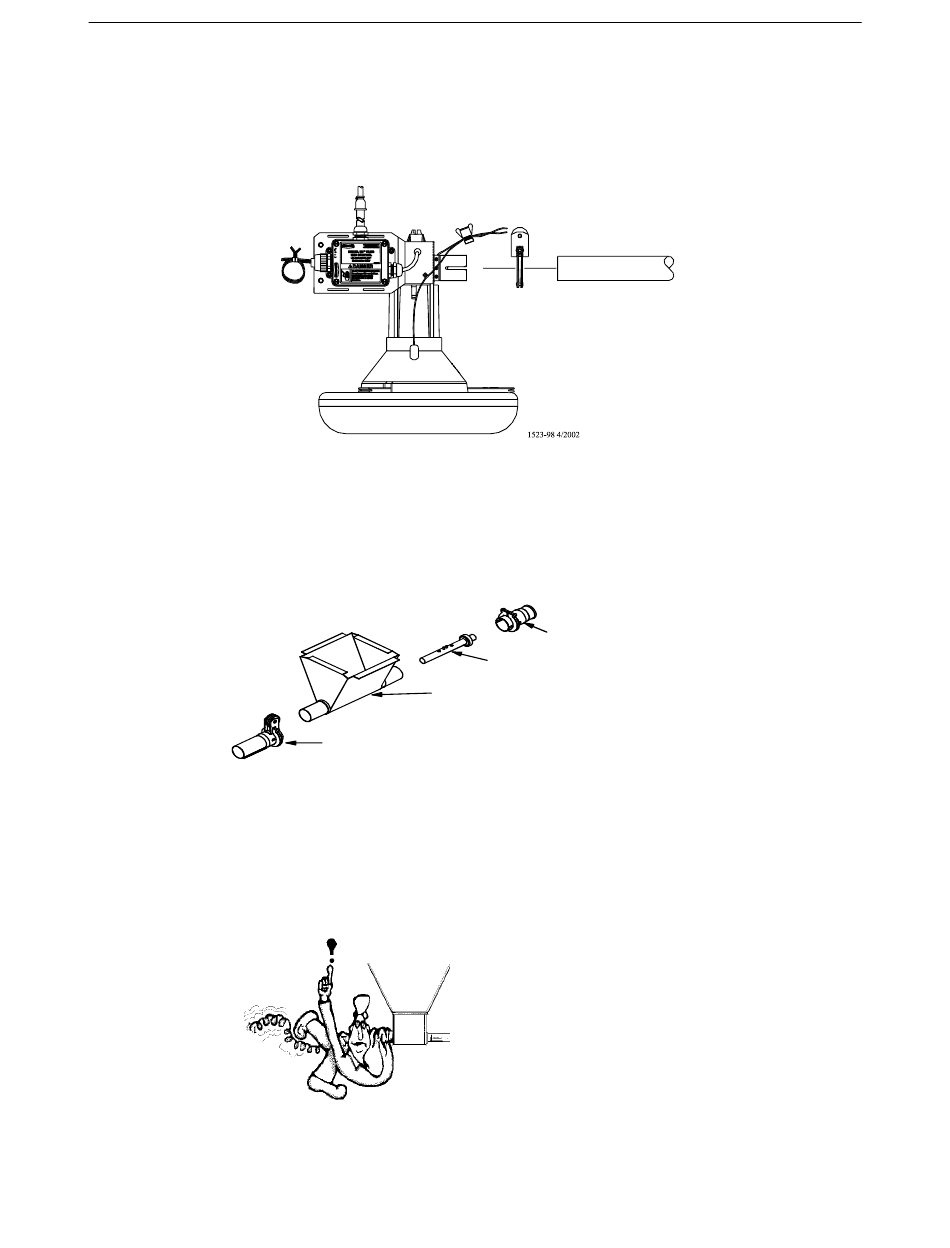

Figure 32. End Control Installation
Feeder Boot
Feeder Tube Bell End
Figure 33. Installing the Feeder Boot
BE CAREFUL WHEN
WORKING WITH THE
Manboot 3/98
Bearing Retainer
Anchor Bearing
1523-90 4/2002
AUGER!
