Model H2™ Plus Feeding Systems
General Installation Information
Please read the installation instructions in this manual prior to beginning the installation. This manual provides
the necessary information on the installation, operation, and maintenance of the Chore-Time feeding equipment
you have purchased.
The Model H2 Plus Control Unit uses a 348 RPM. Gearhead, delivering approximately
17 lbs [7.7 kg] per minute. This rating is based on feed with a density of 40 lbs per cubic foot [640 kg per cubic
meter].
Single phase 60 Hz and single and three phase 50 Hz Power Units are available for the Model H2 Plus Feeder.
Systems up to 300' [91 m] require 1/3 HP Power Units. Systems over 300' [91 m] require 1/2 HP Power Units.
Laying out the Suspension System
1. Select the Suspension type.
A. For systems up to 350' [107 m]
Hopper Support
Swivel Pulley
Full Line Suspension Kit
1' [30 cm]
1523-113 4/2002
8

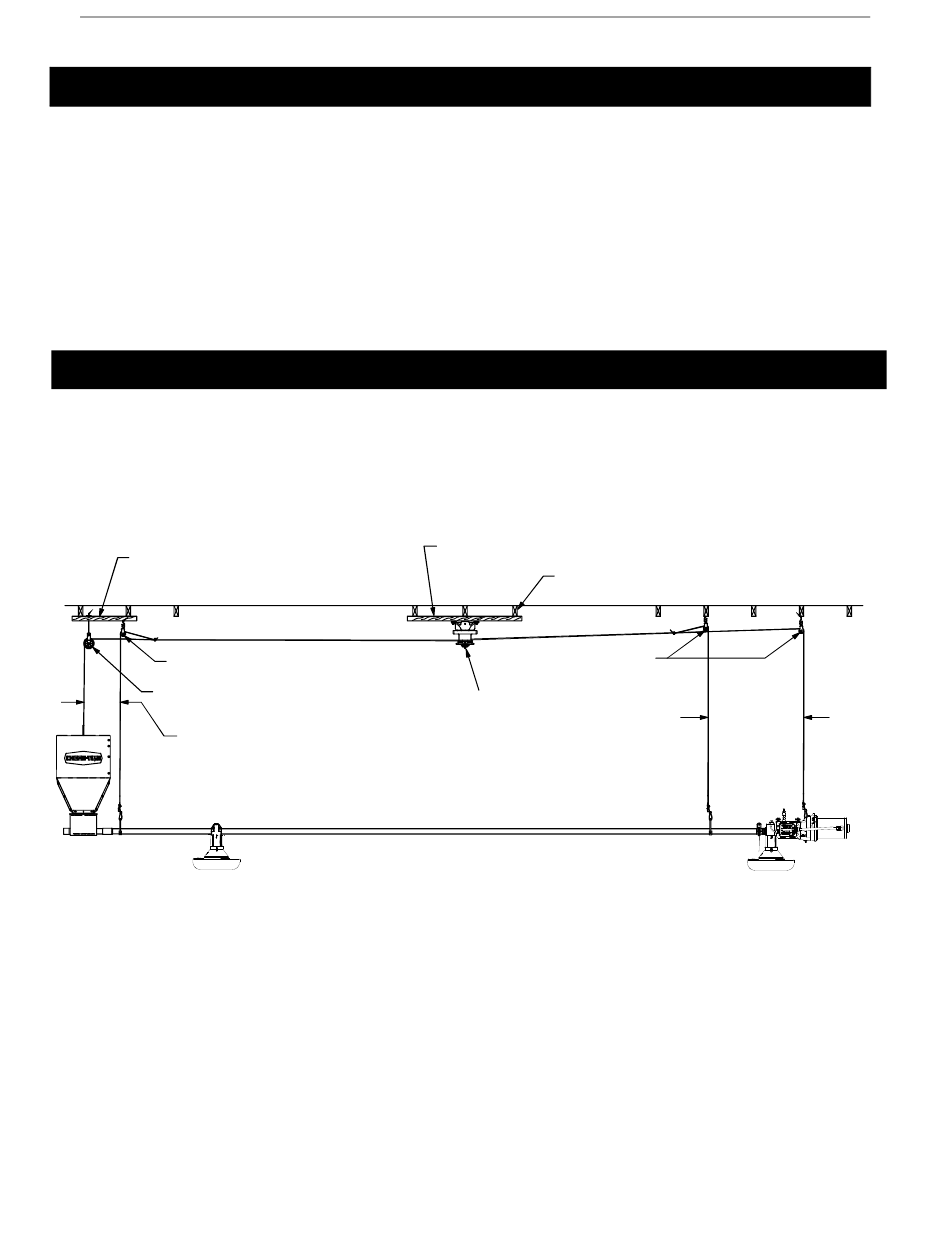

Figure 3. Suspension for systems up to 350' [107 m]
Power Lift Winch Support
Power Lift Winch
Roof Trusses
Swivel Pulley
3' [1 m]
