Chore-Time H2 PLUS Installation & Operator's Instruction Manual page 22

Model H2™ Plus Feeding Systems

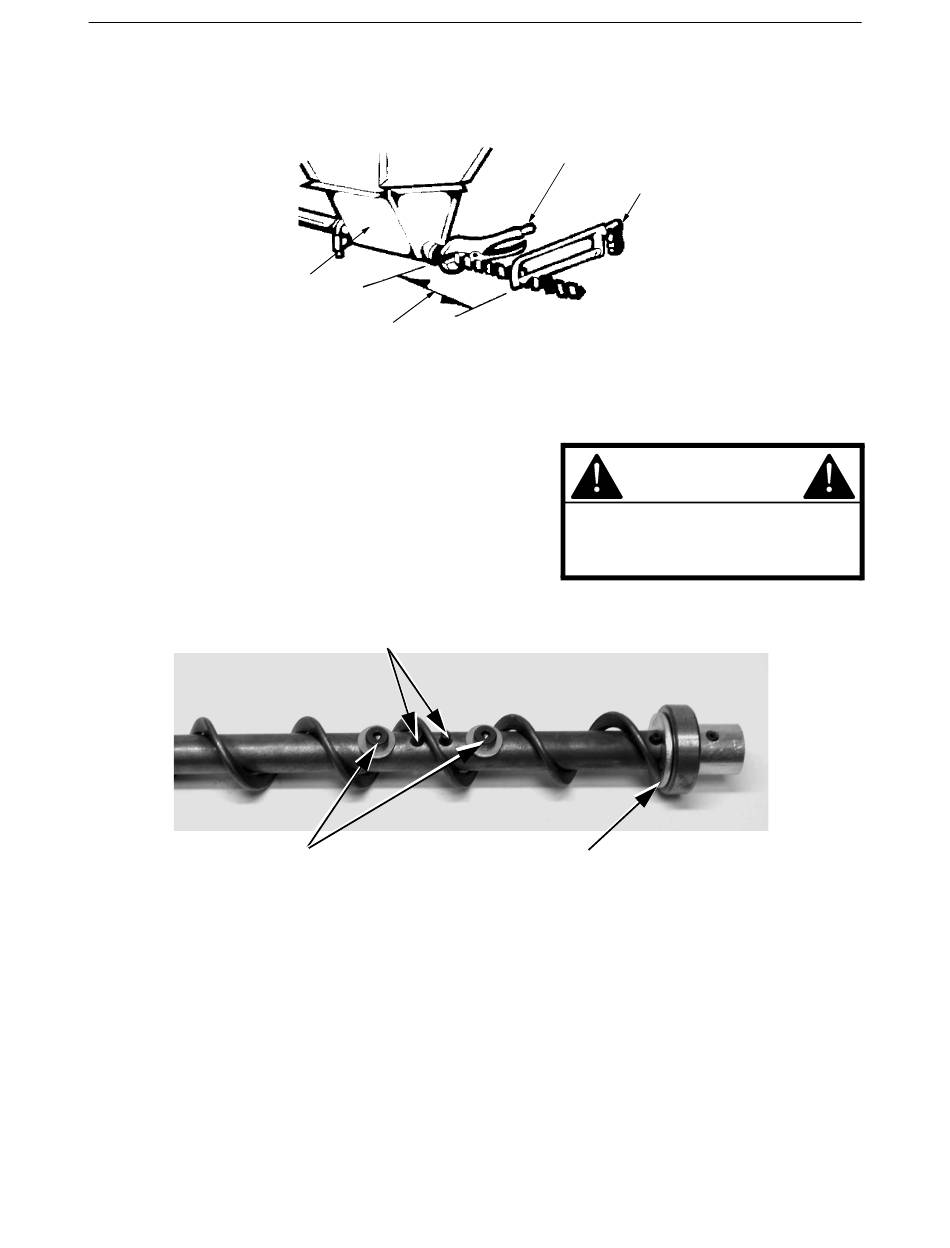

Use a hacksaw or bolt cutters to cut the auger at the stretched auger mark.
Boot under Feed Hopper
Pull an extra 8" [200 mm] of auger (minimum)
to allow for Anchor and Bearing Installation
12. Insert the Anchor Assembly into the auger until it
touches the washer at the back of the anchor.
Tighten the setscrews in the center of the anchor
until they touch the auger, then tighten a maximum
of 1/2 turn. See Figure 40.
DO NOT OVERTIGHTEN THE SET SCREWS
Socket head
screw
anchorbearing1
Figure 40. Wiring the Motor
13. Carefully remove the locking pliers while holding onto the Anchor and Bearing Assembly
and auger securely.
Slowly ease the auger back into the tube. Use caution. If the auger is allowed to spring back,
the bearing race may crack.
Install the Bearing Retainer and fasten with a tube clamp. Keep the Bearing Retainer flush
with the end of the anchor for safety.
14. Place the cannonball in the boot.
22
Roll Pins
Auger tip touching
flat washer
Locking Pliers
Use a hacksaw or bolt
cutters to cut the auger
1523-102 4/2002
Figure 39. Cut the Auger with required stretch
CAUTION
KEEP HANDS AWAY FROM PINCH
POINTS WHEN INSTALLING
AUGER.
