Auger Brazing

The auger should be brazed if it is necessary to splice or lengthen it. A bronze, flux coated rod is
recommended.
The ends of the auger should butt against each other, DO NOT THREAD INSIDE EACH
OTHER. See Figure 41. The joint should be well filled with no sharp edges or rough corners to
wear against the tube. To align the auger for brazing, lay it in angle or channel iron and clamp it
firmly in place. Use low heat. Allow the joint to air cool; rapid cooling will cause the auger to
become brittle.
approximately 1" [25 mm]

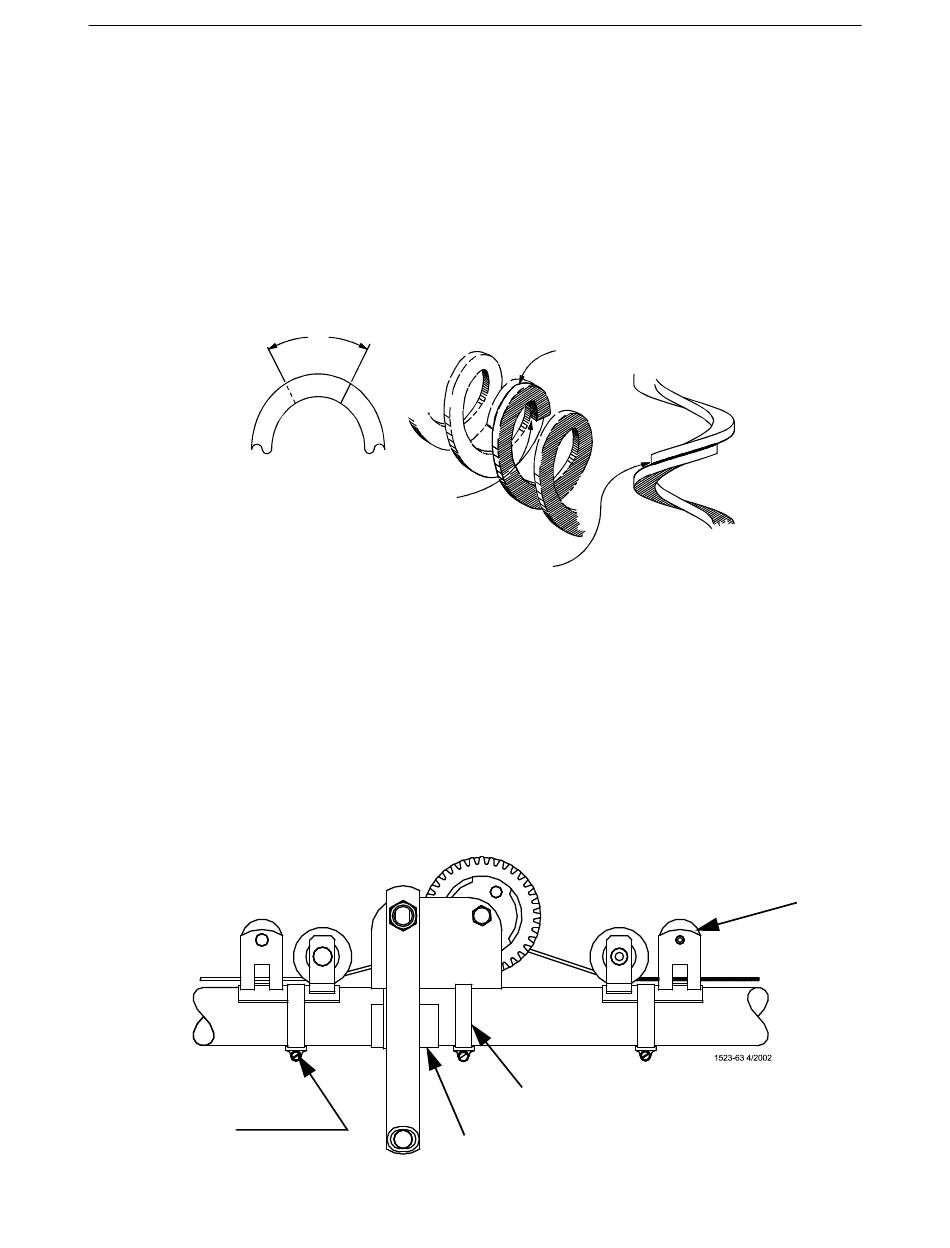

Figure 41. Brazing the Auger
Feed Line Winch Installation
Install the feed line winch in the center of the brood area. Remove one pan and use the Closure Kit to cover
the outlet hole. Mount the winch using the band clamps supplied with the winch. Install the Insulator
Pulley Assemblies as shown using the included Band Clamps. See Figure 42.
Cable
Clamp Insulator Assembly
to the Feed Tube.
Figure 42. Winch Installation
Lap the auger ends
Braze here
Butt the auger ends together
DO NOT thread the auger together
Winch Assembly
Braze here
Clamp Winch Assembly
securely to the Feed Tube.
Cover the outlet hole in Feed Tube.
Model H2™ Plus Feeding Systems
1523-101 4/2002
Insulator
Cable
23
