2. If a Control Tube with enlarged holes is not used, enlarge the outlet hole for the Intermediate Control,
plus (2) outlet holes in front of Intermediate Control.
See Figure 57 for recommended size and placement. Use hacksaw and tin snips to enlarge hole size. Be
sure there are no burrs inside the tube to catch the auger.
Auger Tube
Use a unibit to enlarge outlet holes from 7/8" to 1" [2.22 - 2.54 mm] diameter.
Intermediate Control with Mechanical Switch Installation
Remove the two hex head screws on the control top.
Lift off the control top.
Cradle the feeder tube in the control housing. The feeder tube may have to be turned slightly to allow the
pan to hang straight.
Clamp the control in place by inserting tabs on the control top into the slots on the control body. Install and
tighten the two hex head screws previously removed.
Control Top
Hex Head Screws
Install a toggle switch, out of reach of the birds, to disconnect power to the Intermediate Control. This
allows the Intermediate Control to serve as standard feeder when not used as a control feeder.
Wire the Intermediate Control as shown in the wiring diagram section of this manual.

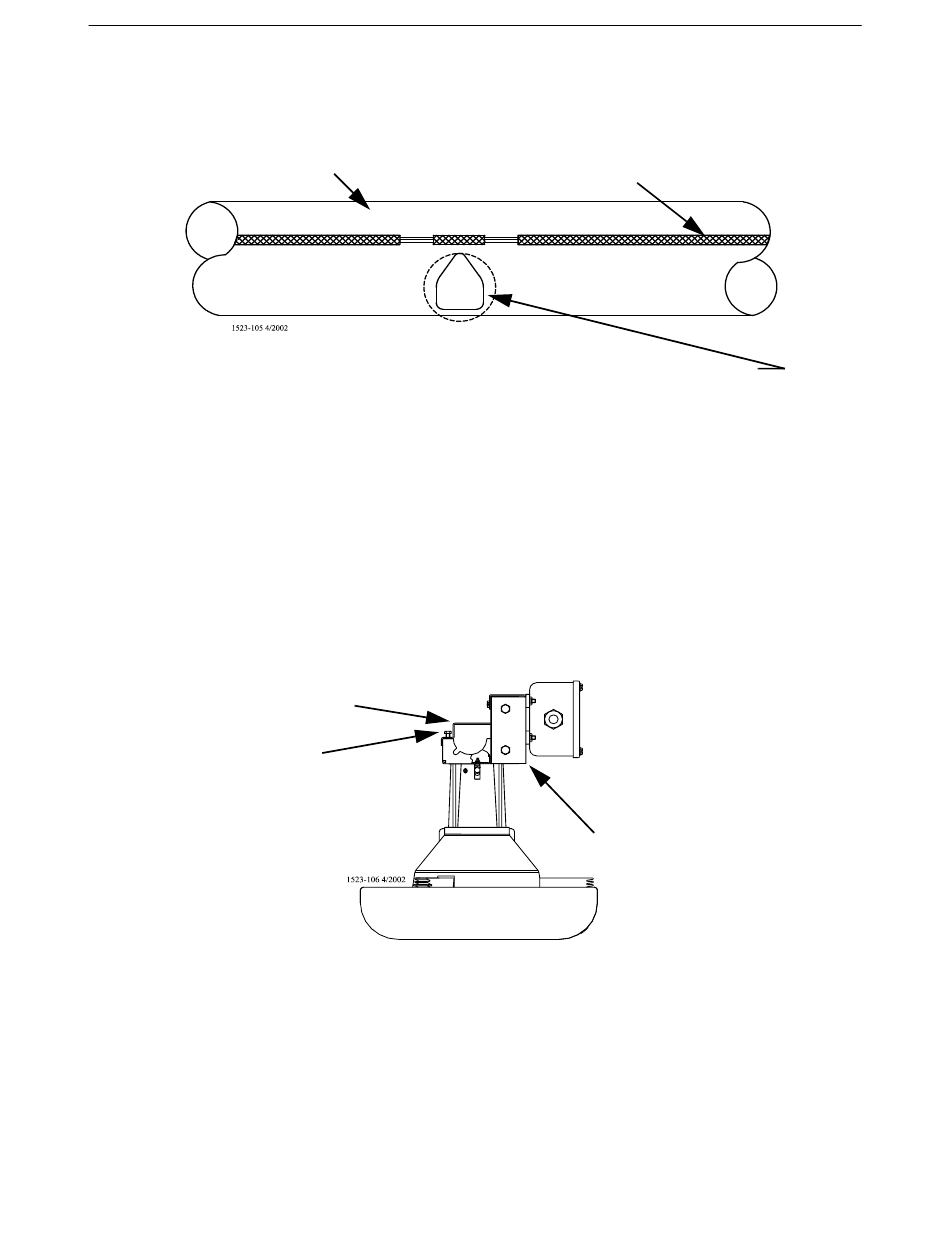

Figure 57. Enlarging Outlet Holes (Side View)
Figure 58. Intermediate Control Installation
Model H2™ Plus Feeding Systems
Seam
Intermediate Control
