Installing the End Control, Boot Assembly, and Auger

The End Control Unit must be at least 10 feet [3 m] from the end of the building to allow birds access around the
end of the feeder line.
1. Assemble the End Control Unit to the Feeder Line Control Tube using a clamp/anti-roost bracket. See
Figure 36. DO NOT INSTALL THE POWER UNIT AT THIS TIME.

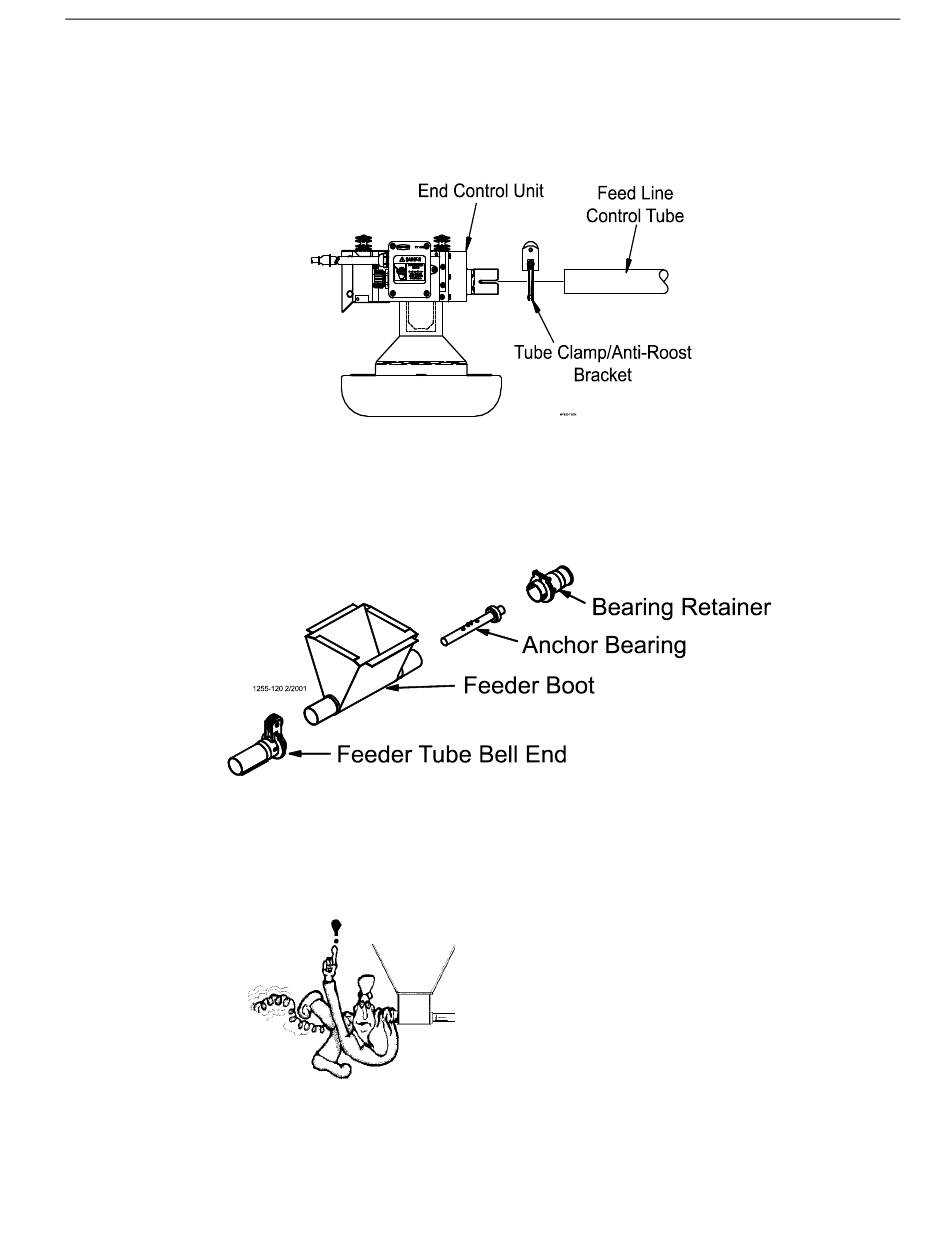

Figure 36. Connecting End Control Unit to the Feed Line Tube
2. Install the Feeder Boot by sliding the straight end of the Feeder Boot into the belled end of the Feeder Tube.
Install a clamp/anti-roost bracket on the bell and tighten. The Feeder Boot must be level with the open top of
the Feeder Boot flat. See Figure 37.
DO NOT INSTALL THE ANCHOR BEARING AND BEARING RETAINER AT THIS TIME.

Auger Installation

Note: Use extreme caution when working with the auger. The auger is under tension and may spring
causing personal injury. Wear protective clothing, gloves, and safety glasses when working with
the auger.
To avoid kinking the auger, be careful not to drop the rolled auger when handling. Inspect the auger carefully as
it is installed. Small kinks may be straightened. Large kinks must be removed and the auger brazed back together.
Cut the leading 18" [450 mm] and last 18" [450 mm] off each roll of auger. Also, cut out any other distorted auger
sections and reconnect the auger as specified in the Auger Brazing section of this manual.
MF830E
Figure 37. Installing the Feeder Boot
BE CAREFUL WHEN
WORKING WITH THE
Manboot 3/98
AUGER!
