Chore-Time H2 PLUS Installation & Operator's Instruction Manual page 25

Model H2™ Plus Feeding Systems

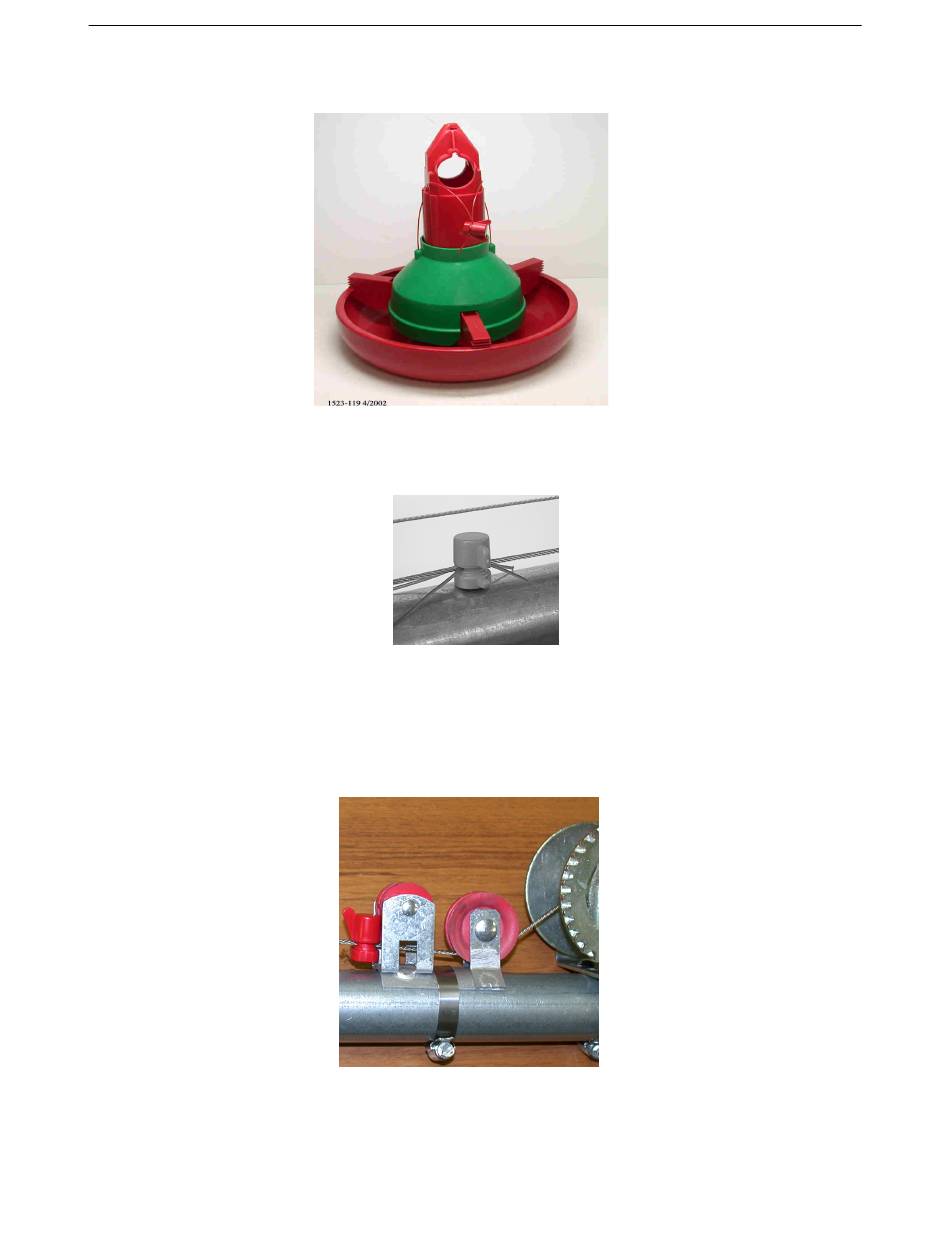

Starting at the winch, connect one of the Support Cords to the lift cable. The cords must be routed toward
the winch (center of the brood area).
Do not raise the first feed cone when connecting the cords.
1523-119
Figure 46. Connecting the Support Cords
See Figure 47 for the proper way of connecting the cords to the cable
1523-61
MF1523-61 4/98
Figure 47. Cable Clamp installation detail.
Using the Feed Line Winch, raise the Feed Cone to it highest position. Position a Cable Clamp next to the
Insulator Pulley Assembly at the Feed Line Winch. This Cable Clamp is to indicate when the Feed Cones
have reached their highest setting. There is to be only one Cable Clamp per Feed Line Winch. See Figure
48.
stopclamp
Figure 48. Support Cords installed
Continue to attach the remainder of the feeders to the lift cable, making sure the feeders are in their highest
position when connected.
Remember to route the cords toward the Feed Cone Winch.
