Model H2™ Plus Feeding Systems

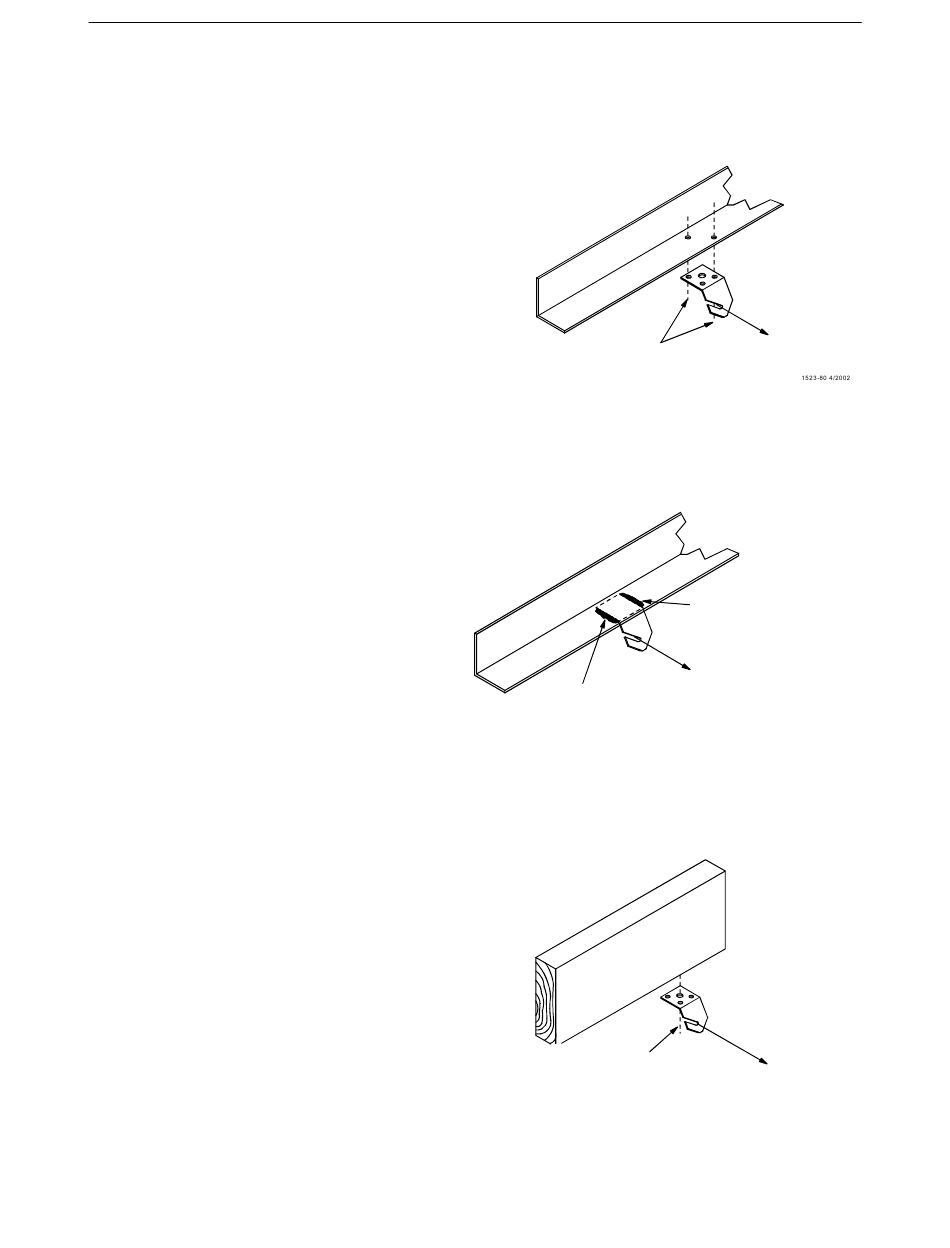

Ceiling Hook Installation
The ceiling hook may be used in a variety of installations. Depending on your ceiling or rafter type, install
the Ceiling Hooks as shown in Figures 14 - 17.
Cable Travel
Secure Ceiling Hook to truss
using self-drilling screws
through opposite holes
Figure 14. Steel Truss Ceiling Bracket Installation
Steel Truss Installations
Weld Ceiling Bracket
to truss here
Cable Travel
Weld Ceiling Bracket
1523-78 4/2002
to truss here
Figure 15. Welded Steel Truss Ceiling Bracket Installation
Wood Truss Installations
Cable Travel
1523-79 4/2002
Secure Ceiling Bracket to truss
using a 1/4" lag screw (not supplied)
through the center hole
Figure 16. Wood Truss Ceiling Bracket Installation
12
