Model H2™ Plus Feeding Systems
Mechanical Switch
Adjustment Procedure

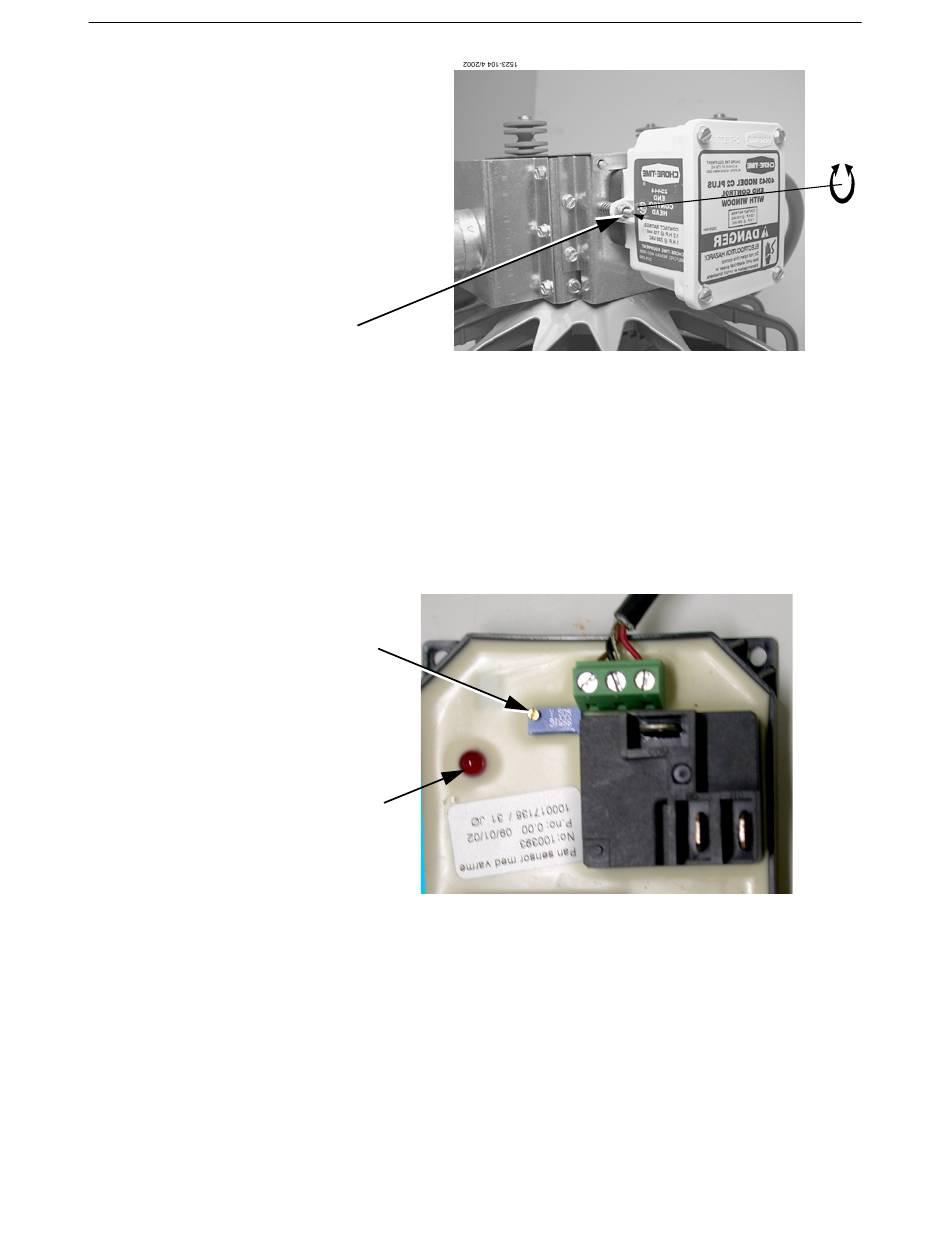

Refer to Figure 61.
A. Turn the adjustment nut counter-
clockwise until the switch clicks.
B. Turn the adjustment nut
clockwise until the switch clicks.
C. Turn the adjustment nut counter-
clockwise 3/4 turn.
Adjustment Nut

SENSOR PLUS Sensor Switch Time Delay Adjustment

Refer to Figure 62.
The SENSOR PLUS Pan Half Round Sensor Switch is adjusted at the factory to a sensitivity of .25'' [6 mm].
To adjust the Time Delay:
• For less time — turn Time Delay Adjusting Screw (item 5) counter-clockwise (Light blinks fast)
• For more time — turn Time Delay Adjusting Screw (item 5) clockwise (Light blinks slow)
Time Delay Adjustment
Light indicates time range;
fast blink = short delay
slow blink = long delay

Feeder Line Maintenance

Keep anti-roost cables tightly stretched. This increases the effectiveness of the electro-guard anti-roost
system and keep the pans from being tilted when birds push against them.
Remove all feed from the feeder when there are no birds in the house and when the building is washed and
disinfected.
Turn the feeders off prior to removing the birds from the house. This will allow them to clean the feed out
of the pans.
If the system is not to be used for an extended period of time, remove all the feed from the feeder lines and
feeder pans.
36
proxboard
Figure 62. Adjusting the SENSOR PLUS Proximity Switch
