4. Slide the Drive Tube and flat washer over the output shaft on the Power Unit, as shown in
Figure 35.
5. Continue installing auger until the auger reaches the Control Unit end of the feeder line.
6. Turn the Drive Tube Weldment into the auger, then attach to the output shaft of the Power
Unit, as shown in Figure 35. Use the Driver Block to secure the auger to the Output Shaft

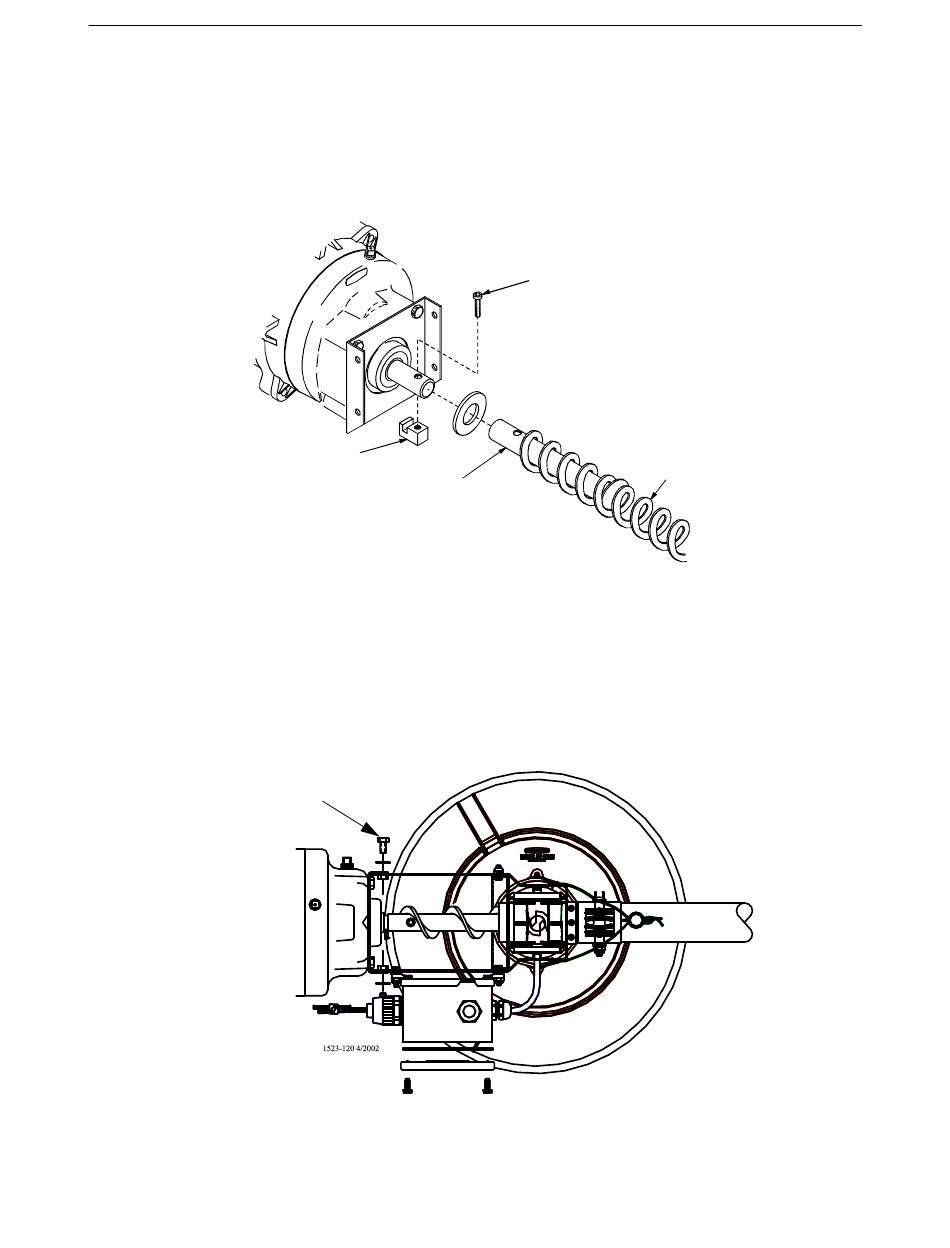

Figure 35. Auger Driver Components
7. Attach the Anchor Plate and Gearhead Assembly to the Control Unit Body using the included
1/4" lock washers and 1/4-20 x 1/2" Bolts. See Figure 36.
1/4-20 x 1/2" Bolt
Figure 36. Attaching the Anchor Plate and Gearhead Assembly to the Control Unit Body
Control Unit not
shown for clarity
Driver Block
Drive Tube Weldment
Model H2™ Plus Feeding Systems
1/4-20 x 1-1/2"
Socket Head Bolt
Auger
