LEC-MTK-i1200 User's Guide
SGET SMARC Rev 2.1
7. Thermal Solutions
7.1 Heatspreader: HTS
Sustainable temperature range with high performance LAB copper heatsink
with high airflow = -40 to 85°C ambient
M3 x 4pcs
؈ 2.7mm x 4pcs
74
4
68
14
82

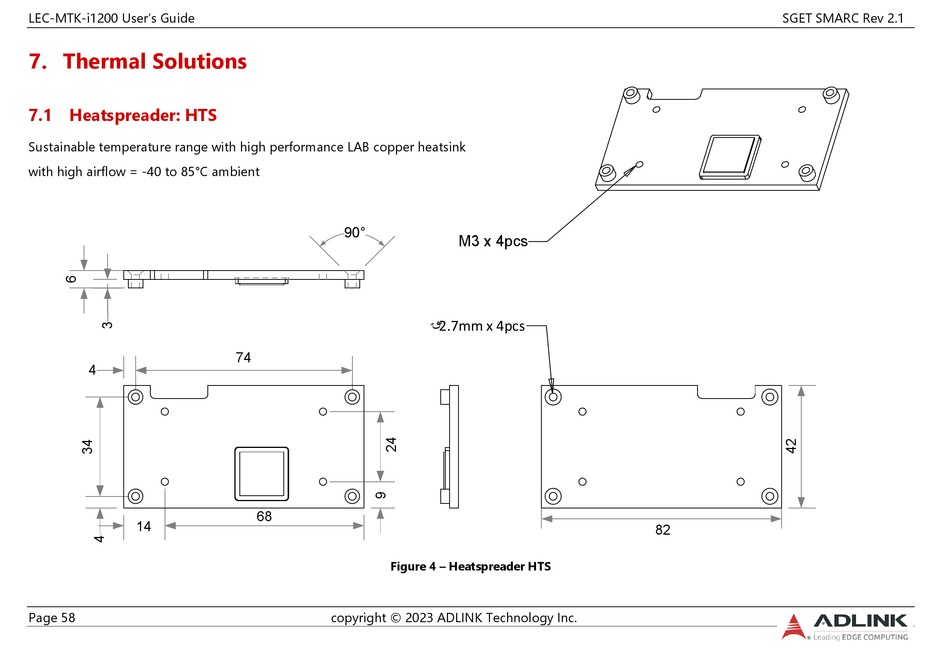

Figure 4 – Heatspreader HTS
Page 58
copyright © 2023 ADLINK Technology Inc.
