After installation, check that all screws are tightened to prevent the device from

falling down.
3.5

Connecting Cables

Note
The waterproof materials are customer-supplied.
Connecting the Grounding Cable

The grounding cable needs to be made onsite. Connect one end of the grounding cable
delivered with the device to the ground hole of the device through an OT terminal and
the other end to the ground through another OT terminal. The cable length can be
trimmed based on the onsite situation to avoid waste.

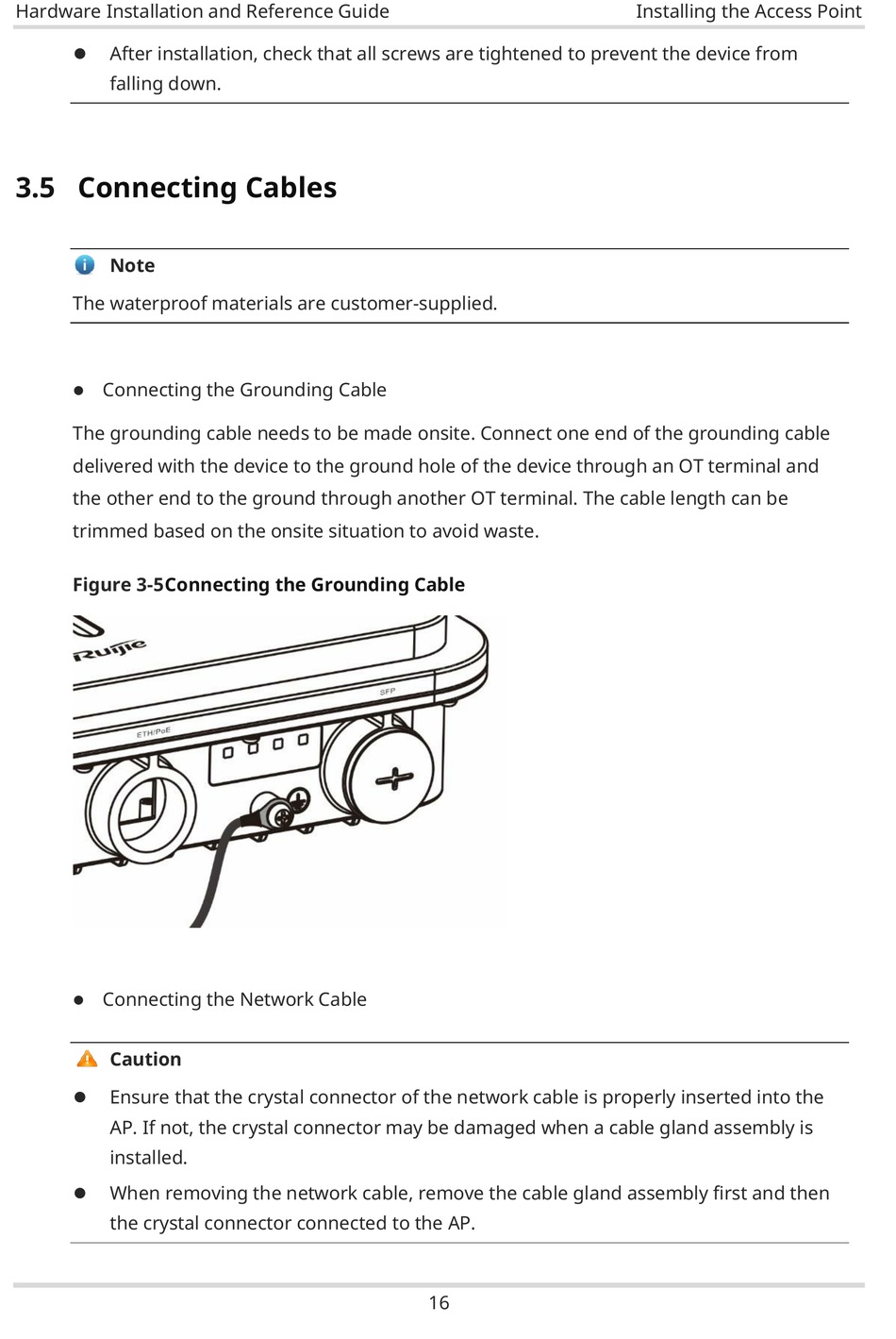

Figure 3-5 Connecting the Grounding Cable
Connecting the Network Cable

Caution
Ensure that the crystal connector of the network cable is properly inserted into the

AP. If not, the crystal connector may be damaged when a cable gland assembly is
installed.
When removing the network cable, remove the cable gland assembly first and then

the crystal connector connected to the AP.
