Hardware Installation and Reference Guide

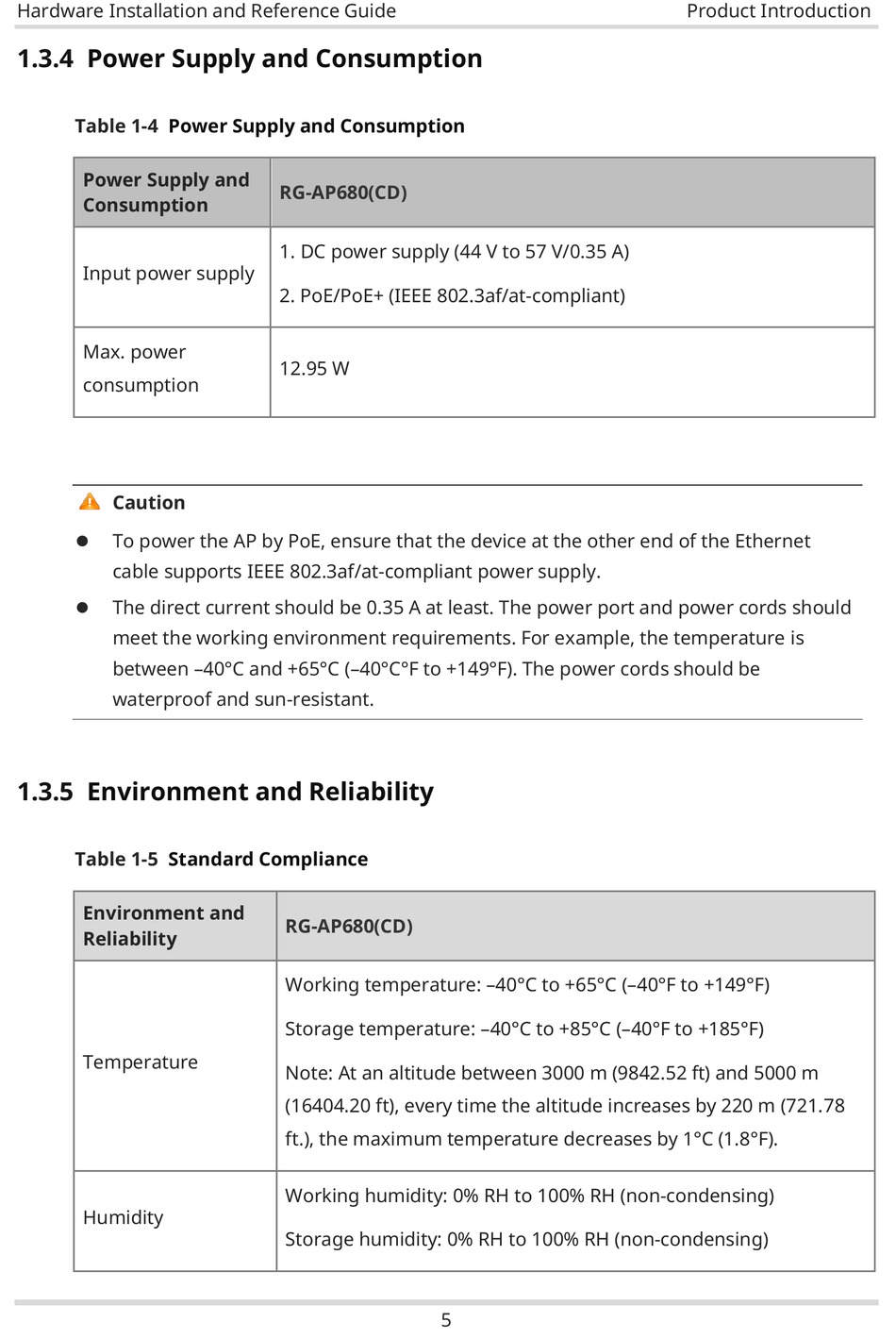

1.3.4

Power Supply and Consumption

Table 1-4 Power Supply and Consumption
Power Supply and
Consumption
Input power supply
Max. power
consumption
Caution
To power the AP by PoE, ensure that the device at the other end of the Ethernet

cable supports
The direct current should be 0.35 A at least. The power port and power cords should

meet the working environment requirements. For example, the temperature is
between –40°C and +65°C (–40°C°F to +149°F). The power cords should be
waterproof and sun-resistant.
1.3.5

Environment and Reliability

Table 1-5 Standard Compliance
Environment and
Reliability
Temperature
Humidity
RG-AP680(CD)
1. DC power supply
2. PoE/PoE+ (IEEE 802.3af/at-compliant)
12.95 W
IEEE 802.3af/at-compliant
RG-AP680(CD)
Working temperature: –40°C to +65°C (–40°F to +149°F)
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Note: At an altitude between 3000 m (9842.52 ft) and 5000 m
(16404.20 ft), every time the altitude increases by 220 m (721.78
ft.), the maximum temperature decreases by 1°C (1.8°F).
Working humidity: 0% RH to 100% RH (non-condensing)
Storage humidity: 0% RH to 100% RH (non-condensing)
(44 V to 57 V/0.35
power supply.
5
Product Introduction
A)
