Proline Promag 50 PROFIBUS DP/PA
Endress+Hauser
2.1.3

Nameplate, connections

See operating manual
Betriebsanleitung beachten
Observer manuel d'instruction
12345678912
1
Ser.No.:
Supply /
Versorgung /
4
Tension d'alimentation
PROFIBUS PA, Profile 3.0
5
SW-Version
6
Device SW:
7
Communication:
8
Drivers:
9
Date: 01. Oct. 05

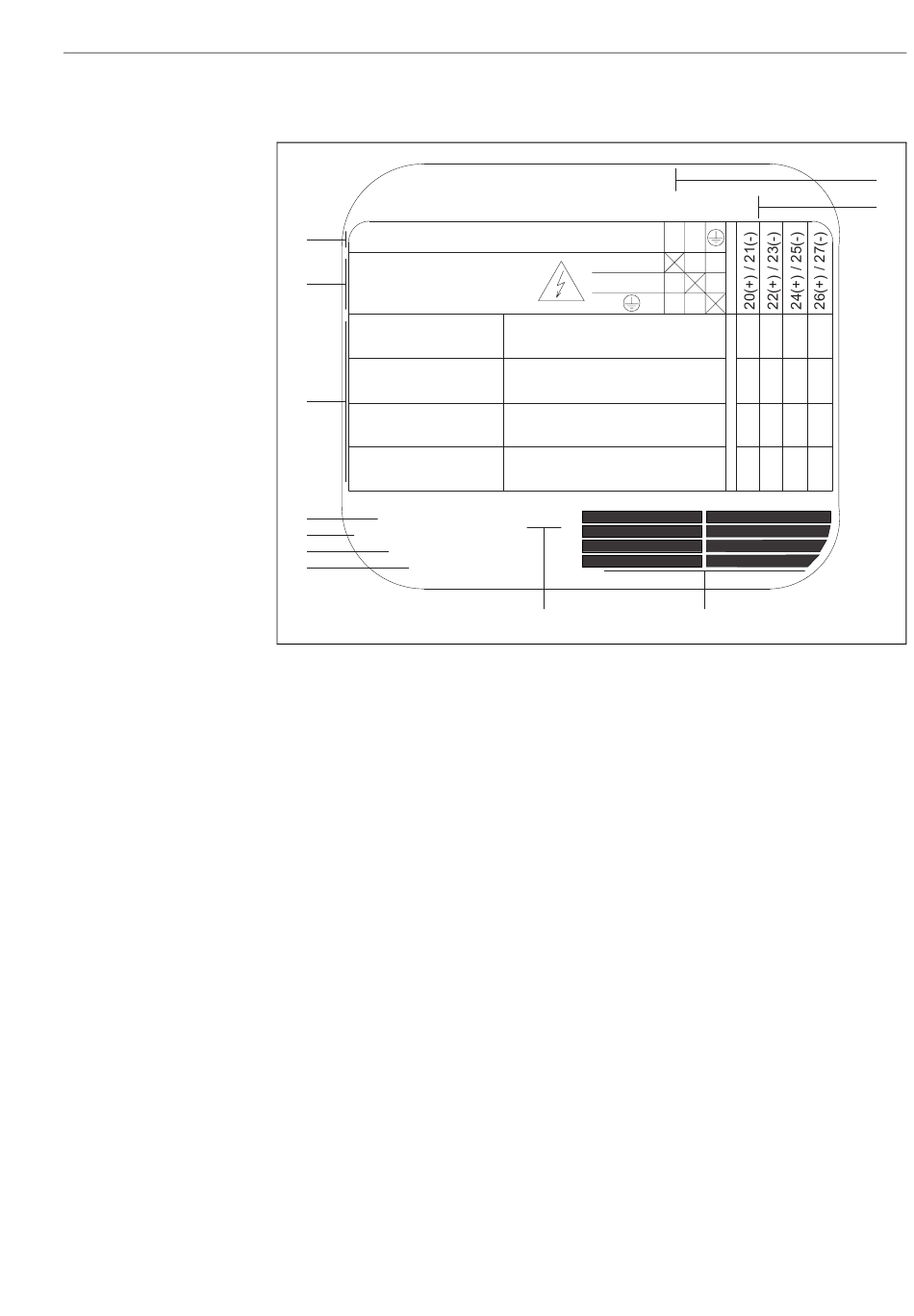

Fig. 4: Nameplate specifications for transmitter (example)
1 Serial number
2 Possible configuration of a current output (not available)
3 Possible configuration of a relay contact (not available)
4 Terminal assignment, cable for power supply: 85...260 V AC, 20...55 V AC, 16...62 V DC
Terminal No. 1: L1 for AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
Signals present at inputs and outputs, possible configuration and terminal assignment → Page 48
5
6 Version of device software currently installed
7 Installed communication type
8 PROFIBUS ID No.
9 Date of installation
10 Language group
11 Current updates to data specified in points 6 to 9
A:
P:
NO:
NC:
L1/L+
N/L-
PE
26 PA +
=
27 PA –
=
Update 1
ex-works
3.01.00 (WEA)
PROFIBUS PA
ID 1525 (HEX)
319475-00XX
10
active
passive
normally open contact
normally closed contact
1 2
Update 2
11
Identification
2
3
X
F06-50PBxxxx-18-05-xx-xx-001
