Identification
8
2.1.2

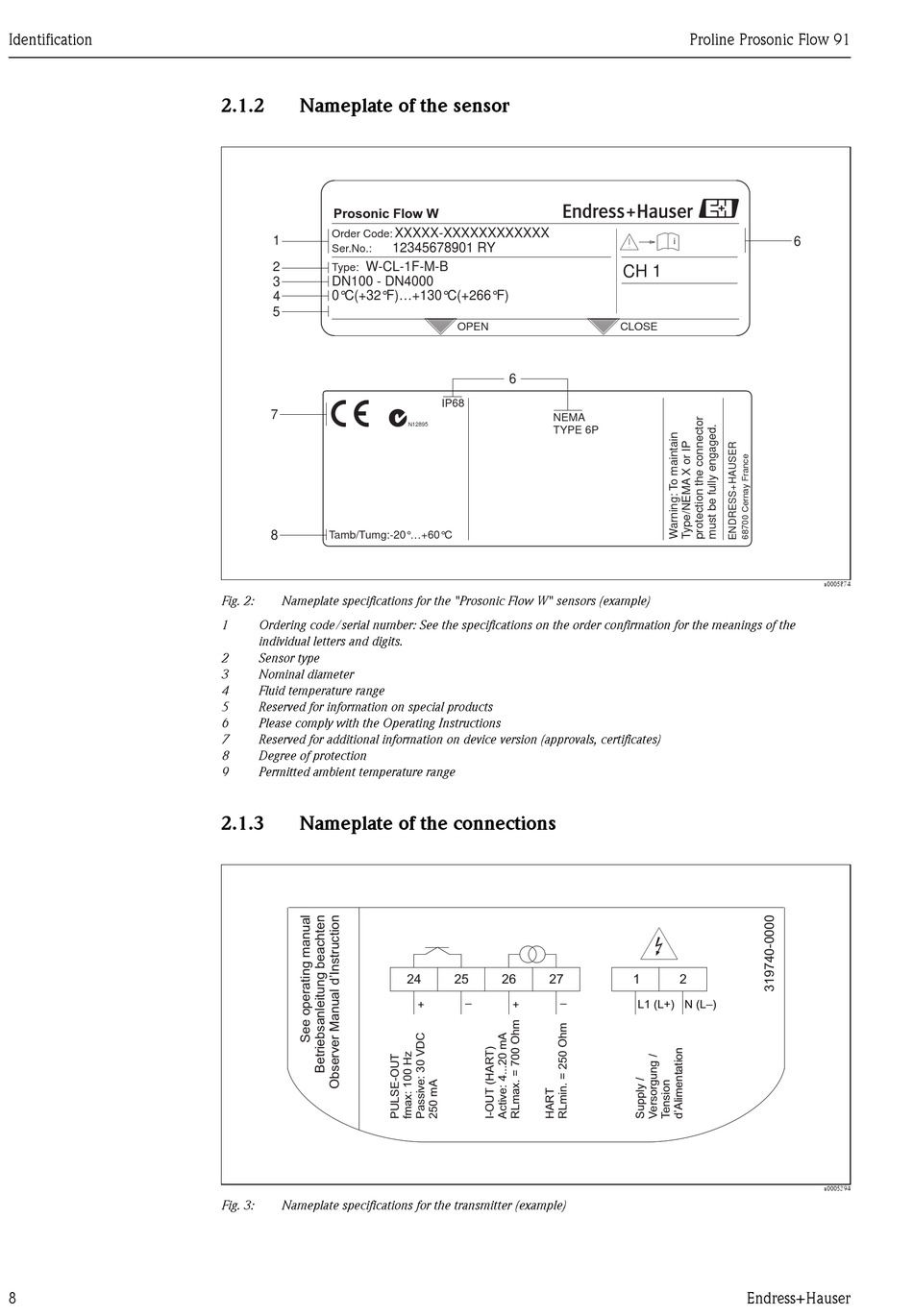

Nameplate of the sensor

Prosonic Flow W
Order Code:
1
12345678901 RY
Ser.No.:
2 W-CL-1F-M-B
Type:
DN100 - DN4000
3
0°C(+32°F)...+130°C(+266°F)
4
5
7
8
Tamb/Tumg:-20°...+60°C
Fig. 2: Nameplate specifications for the "Prosonic Flow W" sensors (example)
1 Ordering code/serial number: See the specifications on the order confirmation for the meanings of the
individual letters and digits.
2 Sensor type
3 Nominal diameter
4 Fluid temperature range
5 Reserved for information on special products
6 Please comply with the Operating Instructions
7 Reserved for additional information on device version (approvals, certificates)
8 Degree of protection
9 Permitted ambient temperature range
2.1.3

Nameplate of the connections

Fig. 3: Nameplate specifications for the transmitter (example)
XXXXX-XXXXXXXXXXXX
OPEN
6
IP68
NEMA
N12895
TYPE 6P
24 25 26 27
– –
+ +
Proline Prosonic Flow 91
i
CH 1
CLOSE
$
1 2
L1 (L+) N (L–)
Endress+Hauser
6
a0005874
