The IP Endpoint Company



SIP Paging 25V/70V Amplifier

Operations Guide

SIP Compliant

Part #011579, 011592

Document Part #931996F

for Firmware Version 22.0.0

CyberData Corporation

3 Justin Court

Monterey, CA 93940

(831) 373-2601

Need help?

Do you have a question about the 011579 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberData 011579

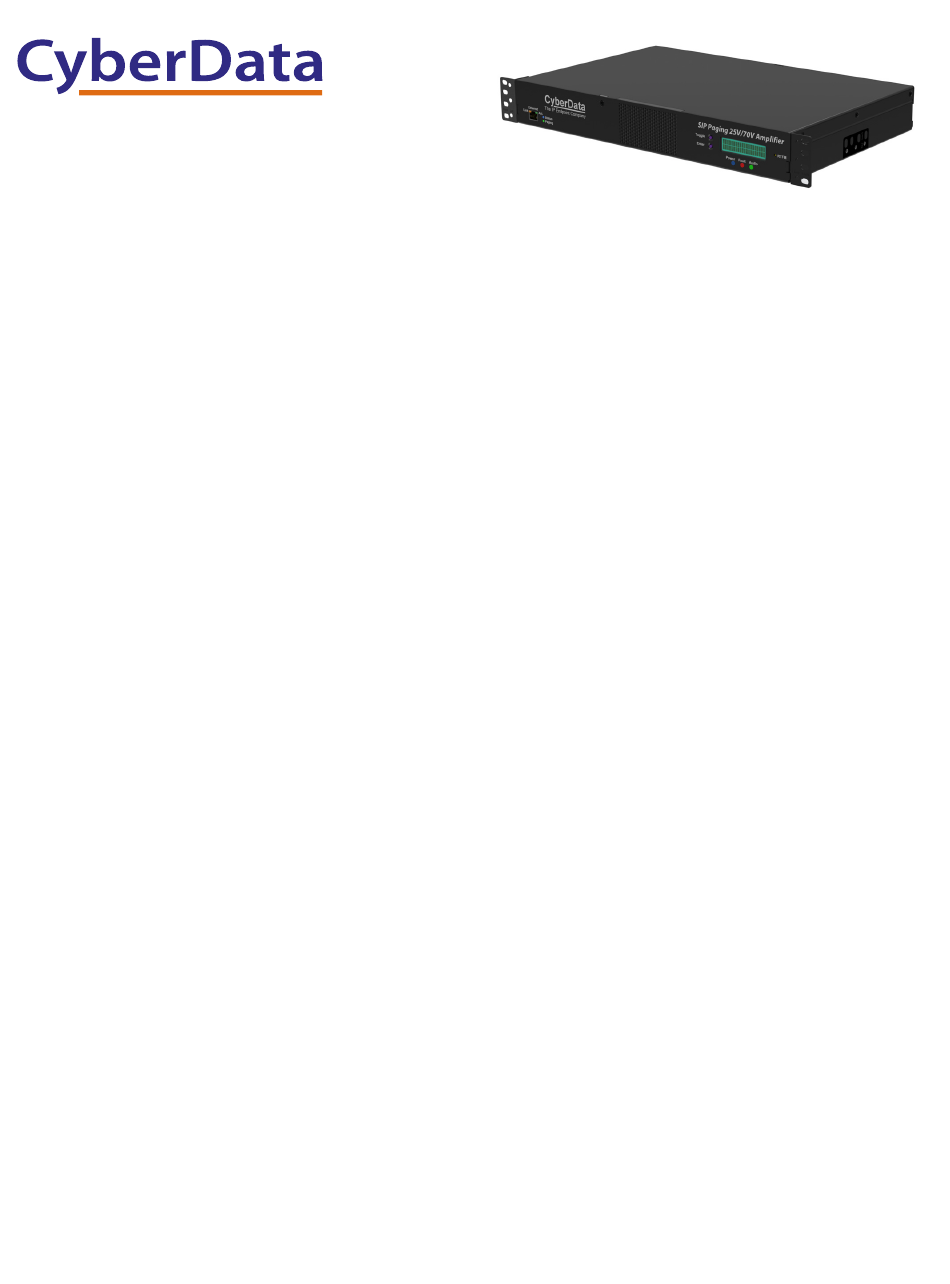

Page 1 The IP Endpoint Company  SIP Paging 25V/70V Amplifier Operations Guide SIP Compliant Part #011579, 011592 Document Part #931996F for Firmware Version 22.0.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
Page 3 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 931996F Operations Guide...
Page 4 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 931996F Operations Guide...
Page 5 CyberData Corporation 931996F Operations Guide...
Page 6 GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the rack, wall or desktop in accordance with the installation instructions. GENERAL ALERT CyberData Corporation 931996F Operations Guide...
Page 7 Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol SRTP Secure Real Time Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol CyberData Corporation 931996F Operations Guide...
Page 8 2.15 Admin ...........................32 2.16 Command Interface ......................33 2.16.1 Command Interface Post Commands ................33 Appendix 1 Troubleshooting/Technical Support 1.1 Frequently Asked Questions (FAQ) ..................34 1.2 Documentation ........................34 1.3 Contact Information ........................35 1.4 Warranty and RMA Information ....................35 CyberData Corporation 931996E Operations Guide...
Page 9 Different gauge wiring can be used from our standard 16/2 recommendation if specific distances or power levels are trying to be maintained. Feel free to consult with our Design Services Group for additional assistance. Figure 1-1. 16/2 (16AWG/2 Conductor) Gray Stranded In-Wall CL3R Speaker Wire CyberData Corporation 931996E Operations Guide...
Page 10 Line level input is for background music applications. The expected input level is 2Vpp (2 volts peak to peak voltage). Interface I/O Fault Sense Input (Common) Fault Sense Input (Sense) Reserved Ground Reference Relay Contact - Common Relay Contact - Normally Open Line Level Output (+) Line Level Output (-) Reserved CyberData Corporation 931996E Operations Guide...
Page 11 It may cause the system to become unresponsive in some higher than normal ESD environments. As a precaution, during installation, it is best to make all external connections to the unit before powering on. CyberData Corporation 931996E Operations Guide...
Page 12 1.2.3.3 Pin 8 and 9 - Line Out These RCA 10K Ohm Hi-Z output connections allow you to connect the device to The RCA line-in (10K Ohm Hi-Z) of an external audio amplifier. CyberData Corporation 931996E Operations Guide...
Page 13 Ground. See the figure on the left. Chassis ground 1.2.5 Connect to the Network Plug one end of a standard Ethernet cable into the device Ethernet port. Plug the other end into your network. Figure 1-4. Connecting to the Network CyberData Corporation 931996E Operations Guide...
Page 14 You can disable Beep on Initialization on the Device Status Paging Configuration page. (GREEN LED) (GREEN/BLUE LED) 1.2.6.1 Verify Network Activity The square, GREEN Network Activity LED blinks when there is network traffic. CyberData Corporation 931996E Operations Guide...
Page 15 The Enter button is used on specific pages to confirm a setting. • LCD Display menu pages: • Screen 1: CyberData Splash Screen • Screen 2: Serial Number and Mode (25v or 70v) • Screen 3: Temperature (Celsius /Fahrenheit) and fan status (on or off) •...
Page 16 1-7. 2. Use the toggle button to select Speak IP Address and then Enter to activate. 3. If a speaker is connected, the device will announce the IP address. Figure 1-7. RTFM Switch RTFM Switch CyberData Corporation 931996E Operations Guide...
Page 17 5. Use the toggle button to select Restore Defaults, and then Enter to activate. 6. Selecting Restore Defaults will bring up the confirmations screen, where selecting Enter will restore defaults. 7. If a speaker is connected, the device will announce, "restoring default configuration" and "rebooting." CyberData Corporation 931996E Operations Guide...
Page 18 Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available at the following website address: https://www.cyberdata.net/pages/discovery...
Page 19 The Home page provides device specific information such as Serial Number, Mac Address, and Firmware version. This page is designed as an initial landing page to provide general information on the status of the device. Figure 2-2. Home Page CyberData Corporation 931996E Operations Guide...
Page 20 2.3 Device The Device page allows for adjustment of settings that pertain to the physical device such as relay settings and time zone. Figure 2-3. Device Page CyberData Corporation 931996E Operations Guide...
Page 21 2.4 Amplifier Figure 2-4. Amplifier Page CyberData Corporation 931996E Operations Guide...
Page 22 2.5 Network The Network tab provides access to network-related settings. Assigning the device a static IP address or VLAN is done on this page. Figure 2-5. Network Page CyberData Corporation 931996E Operations Guide...
Page 23 Many customers use the nightringer in a hunt group. Use this page to configure the options for security, transport, codec, and others. Note For specific server configurations, go to the following website address: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Figure 2-6. SIP Page CyberData Corporation 931996E Operations Guide...
Page 24 1 second. 2.6.2 Point-to-Point Configuration Dialing point-to-point allows the device to call and a single endpoint. All CyberData endpoints and many phones can use this option. To do this, enable SIP Operation, do not enable SIP Registration, and use the endpoint's IP address as the Dial Out extension. Delayed DTMF is supported.
Page 25 2.6.3 Paging Groups (PGROUPS) Figure 2-8. PGROUPS Page CyberData Corporation 931996E Operations Guide...
Page 26 SIP Client, and Autoprovisioning can be changed here. It is also possible to add additional CA certificates on this page. CA Certificates allow the device to authenticate servers that it contacts. Figure 2-9. SSL Page CyberData Corporation 931996E Operations Guide...
Page 27 Figure 2-10. SSL Page CyberData Corporation 931996E Operations Guide...
Page 28 2.8 Schedules Figure 2-11. Schedules Page CyberData Corporation 931996E Operations Guide...
Page 29 Figure 2-12. Calendar CyberData Corporation 931996E Operations Guide...
Page 30 The Fault page controls configuration of all Fault or sensor related capabilities of the unit. This can include the fault sensor that is used to have the device take action based on a physical input to the device. Figure 2-13. Fault Page CyberData Corporation 931996E Operations Guide...
Page 31 2.10 Audiofiles The Audiofiles page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the device. Figure 2-14. Audiofiles Page (1 of 3) CyberData Corporation 931996E Operations Guide...
Page 32 Figure 2-15. Audiofiles Page (2 of 3) Figure 2-16. Audiofiles Page (3 of 3) CyberData Corporation 931996E Operations Guide...
Page 33 2.11 Events The Events page specifies a remote server that can be used to receive HTTP POST events when actions take place on the device. Figure 2-17. Events Page CyberData Corporation 931996E Operations Guide...
Page 34 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...
Page 35 POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>...
Page 36 POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>...
Page 37 2.12 Terminus The Terminus page allows for configuration of settings related to Terminus. Figure 2-18. Terminus Page CyberData Corporation 931996E Operations Guide...
Page 38 Autoprov autoupdate, Autoprov at time, and Autoprov when idle options are available with either DHCP or a named server. The template is an xml file with all options set to default values. Figure 2-19. Autoprovisioning Page CyberData Corporation 931996E Operations Guide...
Page 39 To upgrade the firmware of your device: 1. Download the latest firmware from the following CyberData web site, and locate your device: https://www.cyberdata.net/collections/sip 2. Unzip the firmware version file. This file may contain the following: •...
Page 40 2.15 Admin The administrator uses the Users List to create new accounts, assigning user names and passwords, and granting access to specific web pages. Figure 2-21. Admin Page CyberData Corporation 931996E Operations Guide...
Page 41 /dev/null --no-check-certificate "https://10.10.1.247/command" -- post-data "request=test_audio" Swap Boot partitions wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.10.1.81/command" -- post-data "request=swap_boot_partition" a.Type and enter all of each Post command on one line. CyberData Corporation 931996E Operations Guide...
Page 42 To see a list of frequently asked questions for your product, click on the FAQs tab at the following webpage: https://www.cyberdata.net/pages/011579 1.2 Documentation The documentation for this product is released in an English language version only. To download PDF copies of CyberData product documentation, click on the Downloads tab at the following webpage: https://www.cyberdata.net/pages/011579 CyberData Corporation 931996F...
Page 43 Support form at the following website: https://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting.
Page 44 Command Interface 33 connecting the device 2 network activity, verifying 6 contact information 35 network, connecting to 5 contact information for CyberData 35 CyberData contact information 35 page port 4 page port output connections 4 default settings, restoring 9 Paging Groups (PGROUPS) 17...
Page 45 35 technical support, contact information 35 Terminus 29 verifying network activity 6 warranty policy at CyberData 35 CyberData Corporation 931996E Operations Guide...
