Chapter 3: Jumpers and Connectors
Connector Pin Definitions

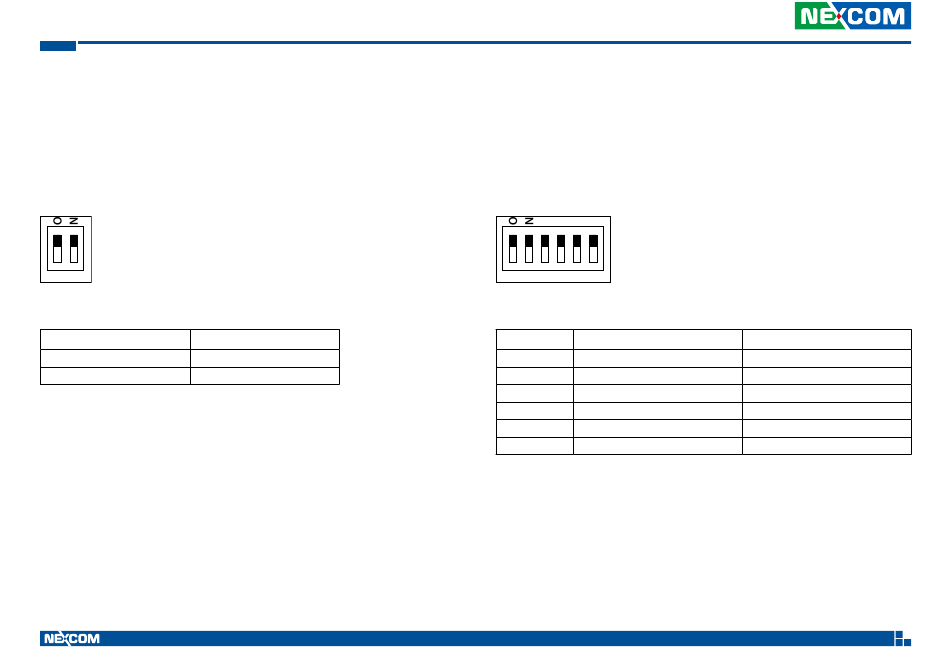

CMOS Clear Switch
Connector type: DIP switch
Connector location: SW2
1 2
Function
Clear CMOS/ME
Normal
(*) Default
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Definition
1-2 ON
*1-2 OFF
GPIO Pull High Switch
Connector type: DIP switch
Connector location: SW1
1 2 3 4 5 6
SW
On (Default)
SW1.1
Pull up VCC5
SW1.2
Pull up VCC5
SW1.3
Pull up VCC5
SW1.4
Pull up VCC5
SW1.5
Pull up VCC5
SW1.6
Enable terminal resistor
33
Off
Don't care
Don't care
Don't care
Don't care
Don't care
Disable terminal resistor
