Chapter 2: Jumpers and Connectors

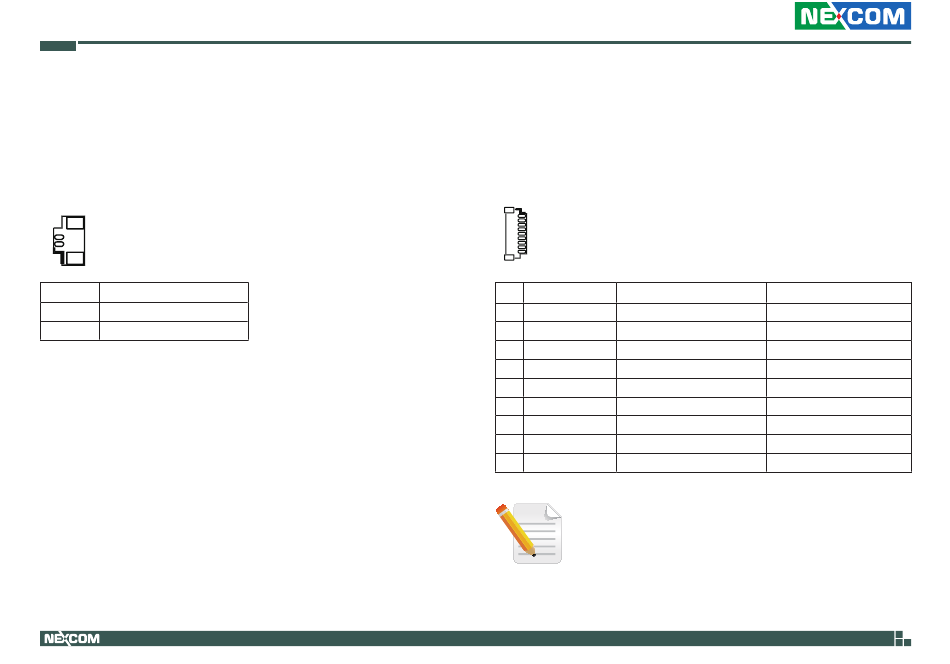

Internal Connector Pin Definitions

Coin-cell Battery Connector

Connector type: 2-pin header
Connector location: BAT
2
1
Pin
Definition
1
GND
2
BAT
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.

COM1, COM2 (RS232/RS422/RS485)

COM3, COM4 COM5, COM6 (RS232)

Connector type: 9-pin header
Connector location: COM1, COM2, COM3, COM4, COM5, COM6
1
9
Pin
RS232
RS422 (If supported)
1
RI
2
CTS
3
RTS
4
DSR
5
GND
6
DTR
7
TXD
8
RXD
9
DCD
By default, COM1 and COM2 ports are RS485. You can change
their function to RS232 or RS422 using a compatible COM
cable and configure the
BIOS.
14
RS485 (If supported)
RX-
RX+
TX+
D+
TX-
D-
Serial I/O Configuration
setting in the
X103 User Manual
