Chapter 2: External Connectors Pinout Description

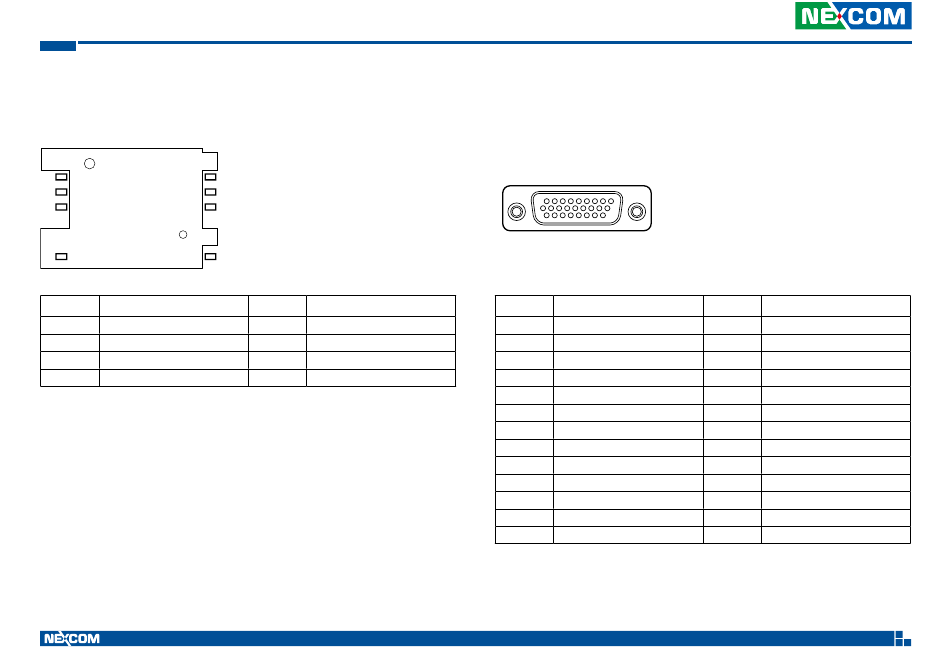

Mini-SIM Card Slot

Connector number: 7
C5
C6
C7
SW2 SW1
Pin Definition
C1 UIM_PWR
C3 UIM_CLK
C6 NC
SW1 SIM2_DET#
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
C1
C2
C3
Pin Definition
C2 UIM_RST
C5 GND
C7 UIM_DATA
SW2 GND

LVDS Connector (VTC 1020-PA)

Connector number: 8
9 1
26 19
Pin Definition
1 Panel_ EN
3 VDD
5 LCDD09(OUT3)
7 LCDD08(OUT3#)
9 LCDD_GND
11 LCDD07(CLK)
13 LCDD06(CLK#)
15 LVDS_GND
17 LCDD05(OUT2)
19 LCDD04(OUT2#)
21 LCDD_GND
23 USB_0#
25 USB_0
22
Pin Definition
2 Panel_control
4 VDD
6 LCDD01(OUT0)
8 LCDD00(OUT0#)
10 LCDD_GND
12 LCDD03(OUT1)
14 LCDD02(OUT1#)
16 LCDD_GND
18 Power on push button
20 Panel_backlight
22 Panel-Gnd
24 Contact_DET#
26 USB_VCC
