Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Connectors

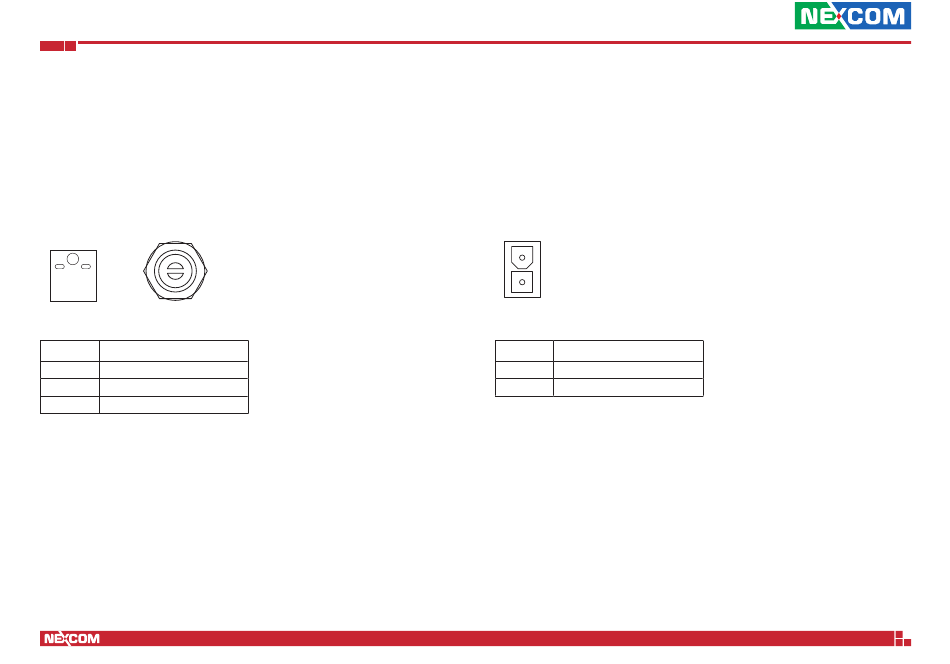

12V Power Connector
Connector location: CN1
1
2 3
Pin Definition
1 DC_IN
2 PGND
3 PGND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
54V Power Connector
Connector location: CN6
1
2
Pin Definition
1 POE_AGND
2 P54V_POE
