NEXCOM International Co., Ltd.
Intelligent Digital Security
Video Intelligent Surveillance
NViS 66162/6602 Series
User Manual
NEXCOM International Co., Ltd.
Published February 2024
www.nexcom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NViS 66162 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nexcom NViS 66162 Series

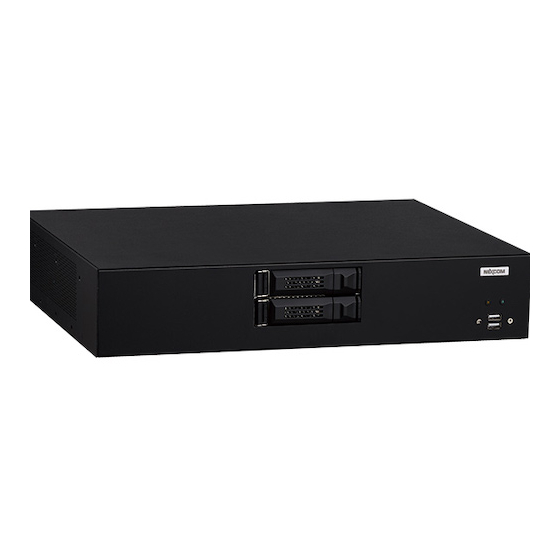

  • Page 1 NEXCOM International Co., Ltd. Intelligent Digital Security Video Intelligent Surveillance NViS 66162/6602 Series User Manual NEXCOM International Co., Ltd. www.nexcom.com Published February 2024...
  • Page 2: Table Of Contents

    RAID SATA Connectors ..............19 Key Features ..................3 M.2 Key B Slot ................20 Hardware Specifications ................4 Front Panel Connector ..............21 Knowing Your NViS 66xxx Series .............5 DB9 Output ...................21 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 3 Installing 3.5” Storage Device(s) ............49 Installing a Graphic Card ...............51 Appendix D: NViS 66162 RAID Configuration Reassembling the Chassis ..............55 Appendix E: Installing the System in a Rack Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 4: Preface

    No describes how to keep the system CE compliant. part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM Declaration of Conformity International Co., Ltd.
  • Page 5: Rohs Compliance

    (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products.
  • Page 6: Warranty And Rma

    (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, ▪ If RMA goods can not be repaired, NEXCOM will return it to the customer please note clearly which components are included. Otherwise, NEXCOM without any charge.
  • Page 7 ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 8: Safety Information

    There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. viii Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 9: Safety Precautions

    12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 10: Technical Support And Assistance

    Preface Technical Support and Assistance Conventions Used in this Manual 1. For the most updated information of NEXCOM products, visit NEXCOM’s Warning: website at www.nexcom.com. Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself 2.
  • Page 11: Global Service Contact Information

    Tel: +886-2-8226-7786 Tel: +886-2-8976-3077 Beitun District, Fax: +886-2-8226-7782 Email: sales@diviotec.com Taichung City, 406, Taiwan, R.O.C. Email: services@tmrtek.com www.diviotec.com Tel: +886-4-2249-1179 www.tmrtek.com Fax: +886-4-2249-1172 Email: jacobhuang@nexaiot.com www.nexaiot.com Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 12 LongGang District, 4-11-5, Shiba Minato-ku, ShenZhen, 518112, China Tokyo, 108-0014, Japan Tel: +86-755-8364-7768 Tel: +81-3-5419-7830 Fax: +86-755-8364-7738 Fax: +81-3-5419-7832 Email: steveyang@nexcom.com.tw Email: sales@nexcom-jp.com www.nexcom.cn www.nexcom-jp.com Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 13: Package Contents

    PE Zipper Bag #8 Cable Tie Accessories Terminal Block 10Pin PE Zipper Bag #3 Flat Head Screw:F6#32Tx5mm Nylok NIGP * 8pcs EPE Front*2 pcs EPE Rear*2 pcs xiii Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 14: Chapter 1: Product Introduction

    ▪ DDR4 up to 64GB ▪ 2 x 2.5GbE Intel Ethernet ® ▪ Audio (Line-in/Line-out/Mic) ▪ 16 x 10/100 PoE (240W max PSE) ▪ PCIe x16 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 15: Hardware Specifications

    ▪ 1 x COM (RS232/RS485) Port Expansions ▪ 2 x PCIe by 16 slots, support x16 lanes (riser slot could be compatible one x16 or two x8) Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 16: Nvis 6602 Overview

    ▪ Display DP1.4, HDMI 2.0b x 1, HDMI 1.4b x 1 ▪ DDR4 up to 64GB ▪ 2 x 2.5GbE Intel Ethernet ® ▪ Audio in/out/Mic ▪ PCIe x16 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 17: Hardware Specifications

    ▪ 1 x COM (RS232/RS485) Port Expansions ▪ 2 x PCIe by 16 slots, support x 16 lanes (riser slot could be compatible one x16 or two x8) Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 18: Knowing Your Nvis 66Xxx Series

    Lights up when power is on. 3. Dual USB 2.0 Ports Used to connect USB 2.0 devices. 4. HDD Activity LED Indicator Lights up when hard disk drive is operating. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 19: Rear Panel

    Connects to an external device with a maximum load of 24V, 1.0A. 9. PCIe Slots Supports x16 lanes (up to 1 x16 + 1 x4, 2 x8 + 1 x4) Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 20 Enables communication among network clients and delivers power using the same RJ45 to PoE-enabled edge devices. 16ch PoE ports 10/100 Mbps, compliance with total 240W max. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 21: Mechanical Dimensions

    Chapter 1: Product Introduction Mechanical Dimensions NViS 66162 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 22: Nvis 6602

    Chapter 1: Product Introduction NViS 6602 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 23: Chapter 2: Jumpers And Connectors

    Static electricity can damage many of the electronic ▪ Use correct screws and do not over tighten screws. components. Humid environments tend to have less static electricity than Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 24: Jumper Settings

    (on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 are Short Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 25: Locations Of The Nvis66Xxx Series Mainboard Jumpers And Connectors

    CN5 CN7 CN10 LAN4 FAN2 CN3 CN6 CN8 CN11 LAN3 FAN3 DIMM1 PWR_SW1 CN19 DIMM2 CN16 CON18 FAN4 CN12 CON3 CON4 HDA1 CN15 CON2 CON1 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 26: External I/O Interfaces

    Chapter 2: Jumpers and Connectors External I/O Interfaces HDMI 1.4b Connector Connector location: CON1 Definition Definition HDMI14_CM_DP2 HDMI14_CM_DN2 HDMI14_CM_DP1 HDMI14_CM_DN1 HDMI14_CM_DP0 HDMI14_CM_DN0 HDMI14_CM_CKP HDMI14_CM_CKN HDMI14_SCL HDMI14_SDA V5P0_HDMI0 HDMI14_HPD Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 27: Displayport 1.4 And Hdmi 2.0B Connectors

    DP14_TX_CM_P1 HDMI20_CRLS_DP1 GND2 DP14_TX_CM_N1 HDMI20_CRLS_DN1 DP14_TX_CM_P2 GND3 HDMI20_CRLS_DP0 HDMI20_CRLS_DN0 DP14_TX_CM_N2 DP14_TX_CM_P3 HDMI20_CRLS_CKP GND4 DP14_TX_CM_N3 HDMI20_CRLS_CKN DP14_OB_AUX_EN DP14_AUXP_SNK GND5 HDMI20_CRLS_SCL HDMI20_CRLS_SDA DP14_AUXN_SNK DP14_HPD_SNK V5P0_HDMI1 V3P3_DP14 HDMI20_RT_HPD_SNK Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 28: Lan1 Connector And Usb Ports

    1Gbp/s network link GND10 USB31_2_RXN_CM 100Mbps or no link USB31_2_RXP_CM GND12 USB31_2_TXN_CM USB31_2_TXP_CM LAN1_PHY_P0 LAN1_PHY_N0 LAN1_PHY_P1 LAN1_PHY_N1 LAN1_PHY_P2 LAN1_PHY_N2 LAN1_PHY_P3 LAN1_PHY_N3 GND13 V3P3A_LAN1 LAN1_PHY_LED_ACT_N_R LAN1_PHY_LED_1000_N_R LAN1_PHY_LED_2500_N_R Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 29: Lan2 Connector And Usb 3.2 Ports

    1Gbp/s network link GND10 USB31_4_RXN_CM 100Mbps or no link USB31_4_RXP_CM GND12 USB31_4_TXN_CM USB31_4_TXP_CM LAN2_PHY_P0 LAN2_PHY_N0 LAN2_PHY_P1 LAN2_PHY_N1 LAN2_PHY_P2 LAN2_PHY_N2 LAN2_PHY_P3 LAN2_PHY_N3 GND13 V3P3A_LAN2 LAN2_PHY_LED_ACT_N_R LAN2_PHY_LED_1000_N_R LAN2_PHY_LED_2500_N_R Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 30: Audio Jacks

    LIne Out Definition Definition Definition Definition AGND_P MIC_OUT_L_C V5P0_USB2_HDR V5P0_USB2_HDR AGND_P MIC1_JD USB2_5_DN_CM USB2_6_DN_CM MIC_OUT_R_C USB2_5_DP_CM USB2_6_DP_CM LINE_OUT_L_C AGND_G FRONT_JD LINE_OUT_R_C LINE-L_C AGND_B LINEIN1_JD LINE-R_C Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 31: Internal I/O Interfaces

    Definition Definition GND1 GND2 V12P0_HDD0 GND3 GND4 V5P0_HDD0 V12P0A_2_1 V12P0A_2_2 V12P0A_2_3 V12P0A_2_4 Definition Definition V12P0_HDD1 V5P0_HDD1 Definition Definition V12P0_HDD2 V5P0_HDD2 CN10 Definition Definition V12P0_HDD3 V5P0_HDD3 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 32: Raid Sata Connectors

    RSATA_CON2_RXP GND3 GND3 CN6 (Port1) CN11 (Port3) Definition Definition Definition Definition GND1 RSATA_CON1_TXP GND1 RSATA_CON3_TXP RSATA_CON1_TXN GND2 RSATA_CON3_TXN GND2 RSATA_CON1_RXN RSATA_CON1_RXP RSATA_CON3_RXN RSATA_CON3_RXP GND3 GND3 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 33: M.2 Key B Slot

    ANTCTL2_1.8V COEX_RXD_1.8V M2B_PER1P UIM-CLK ANTCTL3_1.8V SIM_DETECT GND5 UIM-DATA LTE_RST#_1.8V M2B_SUSCLK M2B_PET1N UIM-PWR M2B_CONFIG_1 V3P3_M2B_3 M2B_PET1P DEVSLP GND10 V3P3_M2B_4 GND6 GPIO_0 GND11 V3P3_M2B_5 M2B_PER0P GPIO_1 M2B_CONFIG_2 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 34: Front Panel Connector

    Connector location: CN13 Connector location: CN14 Definition Definition Definition Definition V3P3A V3P3_DSW HDR_RI_N RSTBTN_N HDR_CTS_N HDR_RTS_N PWRBTN_N_S2 HDR_DSR_N LED_HDD_PU LED_HDD_LOGIC_N HDR_DTR_N HDR_TXD LED_PWR_PU LED_PWR_LOGIC_N HDR_RXD HDR_DCD_N Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 35: M.2 Key M Slot

    GND10 M2M_NVME_PCH_CLKREQ_N NVME_RXP2 NVME_CLKN M2M_WAKE_N GND5 NVME_CLKP NC16 NVME_TXN2 GND11 NC17 NVME_TXP2 NC26 M2M_SUSCLK GND6 M2M_SSD_DETECT V3P3A_M2M_3 NVME_RXN1 GND12 V3P3A_M2M_4 NVME_RXP1 GND13 V3P3A_M2M_5 GND7 M2M_Mount_Detect Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 36: Gpio Connector

    Connector location: CN17 Definition Definition Definition Definition V5P0_4I4O SATA_SGPIO_DOUT1 PIO_IN_80 PIO_OUT_84 SATA_SGPIO_DOUT0 SATA_SGPIO_LOAD PIO_IN_81 PIO_OUT_85 SATA_SGPIO_CLK DUG_SDA PIO_IN_82 PIO_OUT_86 DUG_SCLK DUG_RXD PIO_IN_83 PIO_OUT_87 DUG_TXD V3P3A Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 37: Pcie Slot

    V3P3S_SLOT_2 GND_10 PEG_PWR_OK PEG_RST_N GND_2 RSVD3 GND_11 PEG_SLOT_CLKP PEG_SLOT_CLKN CPU_PEG_RXP4 CPU_PEG_RXN4 GND_3 CPU_PEG_RXP0 GND_12 GND_13 CPU_PEG_RXN0 GND_4 CPU_PEG_RXP5 CPU_PEG_RXN5 PEG_PWR_EN GND_5 GND_14 GND_15 CPU_PEG_RXP1 CPU_PEG_RXN1 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 38 GND_28 GND_19 CPU_PEG_RXP8 GND_29 CPU_PEG_RXP13 CPU_PEG_RXN8 GND_20 CPU_PEG_RXN13 GND_30 GND_21 CPU_PEG_RXP9 GND_31 CPU_PEG_RXP14 CPU_PEG_RXN9 GND_22 CPU_PEG_RXN14 GND_32 GMD_23 CPU_PEG_RXP10 GND_33 CPU_PEG_RXP15 CPU_PEG_RXN10 _GND_24 CPU_PEG_RXN15 GND_34 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 39 V3P3A_SLOT PEG_PRSNT2_N GND_45 PEG_WAKE_N PEG_B12 PEG_TXP4 PEG_TXN4 GND_37 PEG_TXP0 GND_46 GND_47 PEG_TXN0 GND_38 PEG_TXP5 PEG_TXN5 PEG_PRSNT2_N GND_39 GND_48 GND_49 PEG_TXP1 PEG_TXN1 PEG_TXP6 PEG_TXN6 GND_40 GND_41 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 40 PEG_TXP13 PEG_TXN8 GND_54 PEG_TXN13 GND_64 GND_55 PEG_TXP9 GND_65 PEG_TXP14 PEG_TXN9 GND_56 PEG_TXN14 GND_66 GND_57 PEG_TXP10 GND_67 PEG_TXP15 PEG_TXN10 GND_58 PEG_TXN15 GND_68 GND_59 PEG_TXP11 PEG_PRSNT2_2nd_Slot_N PEG_SEL_X8_X16 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 41: Debug Connector

    Chapter 2: Jumpers and Connectors Debug Connector Connector type: Wire to BD connector Connector location: CN19 Definition Definition V3P3A DBG_ESPI_RST0_N DBG_ESPI_IO0 DBG_ESPI_IO1 DBG_ESPI_IO2 DBG_ESPI_IO3 DBG_ESPI_CS0_N DBG_ESPI_CLK DBG_PLTRST_N Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 42: Fan Connectors

    Connector location: FAN1, FAN2, FAN3, FAN4 FAN1 FAN3 Definition Definition Definition Definition V12P0_FANG1 V12P0S SYS2_FAN_TACO SYS2_FAN_PWM CPU_FAN_TACO CPU_FAN_PWM FAN2 FAN4 Definition Definition Definition Definition V12P0_FANG1 V12P0_FANG2 SYS1_FAN_TACO SYS1_FAN_PWM SYS3_FAN_TACO SYS3_FAN_PWM Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 43: Poe Connector

    Connector type: Wire to BD connector Connector type: Wire to BD connector Connector location: J2 Connector location: J2 Definition Definition Definition Definition V12POE V12POE PWRBTN_N POE_RXD_IN POE_TXD_OUT POE_RST_OUT Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 44: Nvis 66162 Block Diagram

    Chapter 2: Jumpers and Connectors NViS 66162 Block Diagram Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 45: Locations Of The Nvis66612 Poe Board Connectors

    The figure below shows the location of the NViS66162 POE board connectors. Refer to the figure below for detailed information on pin settings and definitions marked in pink. LAN1 LAN2 CON2 FAN4 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 46: Internal I/O Interfaces

    Connector type: 54V power in connector Connector type: 12V power in connector Connector location: CN4 Connector location: CON2 Definition Definition Definition Definition P_GND_D P_GND_D P12V_GND V12POE DC_JACK_IN_P DC_JACK_IN_P Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 47: System Fan Connector

    12V Power Connector Connector location: FAN4 Connector type: 12V power in connector Connector location: J1 Definition Definition Definition Definition V54_POE Power_Module_EN POE_GND MCU_RST_N MCU_UART_TX MCU_UART_RX V12POE V12POE Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 48: Lan Connectors

    Definition MDI1P MDI1N MDI1P MDI1N MDI2P MDI3P MDI2P MDI3P MDI3N MDI2N MDI3N MDI2N MDI4P MDI4N MDI4P MDI4N LED2-/Y LED2+/Y LED2-/Y LED2+/Y LED1-/Y LED1+/Y LED1-/Y LED1+/Y Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 49: Poe Board Block Diagram

    IP808AR 128-LQFP 128-LQFP 48-MQFN 48-MQFN EEPROM EEPROM I2C Isolator UART MSP430FR2155TRHAR I2C Isolator 8 x 10/100 TP Port RJ45 8 x 10/100 TP Port RJ45 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 50: Chapter 3: System Setup

    Locate and loosen the 3 screws on the rear cover counterclockwise, as Gently slide the top cover of the chassis outward, and then lift it up to shown below. fully open the chassis. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 51 Chapter 3: System Setup Completed. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 52: Installing So-Dimm Ddr4 Memory Modules

    DIMM 1 or DIMM 2 according to their requirements. 2. Note that the memory sockets are designed with fool-proof measures. Do not force-plug the memory module(s) if they are not oriented correctly. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 53 Chapter 3: System Setup The assembly steps are completed. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 54: Installing A Cpu

    Release the load lever by pushing it down from the retention tab, then pull it up. Lift the CPU load plate up to open the socket completely. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 55 CPU with the corresponding triangle load plate. marker and notches on the CPU load bracket. Gently push the load lever down until it locks under the retention tab. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 56 CPU socket. holes mentioned in the previous step on the mainboard. Tighten the screws following the order marked in the image below. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 57 Plug the heatsink module power connector into CPU fan header (FAN3) 10. After connecting the power, use cable ties to organize the cables. on the motherboard. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 58: Installing An M.2 Module (Key M 2280)

    Insert the M.2 module into the M.2 Key M slot at a 45-degree angle until the gold-plated connector on the edge of the module completely disappears into the slot. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 59 Chapter 3: System Setup Push the M.2 module down and secure it with the screw that was removed from step 1. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 60: Installing An M.2 Module (Key B 2242)

    Insert the M.2 module into the M.2 Key B slot at a 45-degree angle until the gold-plated connector on the edge of the module completely disappears into the slot. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 61 Chapter 3: System Setup Push the M.2 module down and secure it with the screw that was removed from step 1. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 62: Installing 3.5" Storage Device(S)

    Installing 3.5” Storage Device(s) Push the HDD tray latch ( ) to the right to release the tray cover ( Retrieve the HDD tray from the chassis. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 63 Insert the assembled HDD tray back into the chassis ( ) and then push screws. the cover to lock it ( Repeat the steps above to assemble the second HDD if necessary. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 64: Installing A Graphic Card

    To ensure proper fit before installing your graphics card, check Loosen the screw on the mainboard and set it aside for later use. the dimensions illustrated below. 130.00 Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 65 Carefully align the golden contacts on the graphics card with the PCIe Remove the PCIe Brackets ( slot and gently push it in until it securely clicks into place. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 66 Reattach the PCIe bracket back onto the chassis. Using the screws you set aside in step 1 to firmly secure both the brackets and the graphics card in place. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 67 GPU support bracket (not included, see the reference forcing the connection if it’s in the wrong direction. image below). Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 68: Reassembling The Chassis

    Install the top cover back to its original position. Secure the screws back to their original positions. Push the chassis top cover forward until it fits snugly with the chassis. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 69: Chapter 4: Bios Setup

    BIOS is updated in the future. second, to make settings appropriate for the way you use the computer. To check for the latest updates and revisions, visit the NEXCOM website at When to Configure the BIOS www.nexcom.com.tw.
  • Page 70: Default Configuration

    Setup. Load optimized default values. Press the key to enter Setup: Saves and exits the Setup program. Press <Enter> to enter the highlighted sub-menu Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 71 When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 72: Bios Setup Utility

    The Main menu is the first screen that you will see when you enter the BIOS hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays Setup Utility. seconds from 00 to 59. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 73: Advanced

    When disabled ME will be put into ME Temporarily Disabled Mode. AMT BIOS Features Enable or disable AMT BIOS Features. AMT Configuration Enter the AMT Configuration sub-menu. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 74 Enable or disable MAC Pass Through. Dynamic Lan Switch Configure AMT support from Integrated LAN to Discrete LAN. Activate Remote Assistance Process Enable or disable Activate Remote Assistance Process. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 75 PET Progress Enable or disable PER events progress to receiver PET Events. WatchDog Enable or disable watchdog. ASF Sensors Table Enable or disable ASF Sensors Table. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 76 Enable or disable the option to Force Secure Erase on next boot. Enable or disable OCR Windows Recovery Boot. OCR Disable Secure Boot Enable or disable OCR Disable Secure Boot. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 77 Enable Remove Platform Erase Feature. Enable or disable ME FW Image Re-Flash function. SSD Erase Mode FW Update Configure the SSD Erase Mode. Enable or disable FW Update Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 78 Enable or disable turbo mode. C states Enable or disable CPU Power Management. Allows CPU to go to C states when it’s not 100% utilized. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 79 When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Active Performance-cores Select the quantity of performance cores to enable in each processor package. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 80 SHA256 PCR Bank Enable or disable SHA256 PCR Bank. Pending operation Schedule an operation for the security device. Platform Hierarchy Enable or disable platform hierarchy. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 81 ACPI Sleep State Select the highest ACPI sleep state the system will enter when the suspend button is pressed. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 82 Onboard Serial Port Mode Configure the serial port mode to RS232 or RS485 Auto. Changes Settings Select an optimal setting for the Super IO device. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 83 This section is used to monitor hardware such as temperature, fan speed, and voltages. Fan1/2/3/4 Setting Enter the Fan1/2/3/4 Setting sub-menu. Smart Fan Function Enter the Smart Fan Function sub-menu. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 84 The amount of time fan takes to increase its value by one step. Step down time The amount of time fan takes to decrease its value by one step. Temperature 1/2/3/4 (Fan1/2/3/4) Configure the temperature setting. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 85 Value to be programmed into PCI-X Latency Timer Register. VGA Palette Snoop Enable or disable the VGA palette registers snooping. PERR# Generation Enable or disable the PCI device to generate PERR#. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 86 Enable or disable Extended Tag. No Snoop Enable or disable No Snoop. Maximum Payload Select the maximum TLP payload size of the PCI Express devices. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 87 Enable or disable ARI Forwarding. Enable or disable Hardware Autonomous Speed. Atomic0p Requester Enable Enable or disable Atomic0p Requester Enable. Atomic0p Egress Blocking Enable or disable Atomic0p Egress Blocking. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 88 This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver. USB Mass Storage Driver Support Enable or disable USB mass storage driver support. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 89 Configure the items used for self test. Controller Only Test and Controller and NameSpace Test options are available. Selecting Controller and NameSpace Test will take longer to complete. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 90: Chipset

    Enter the System Agent (SA) Configuration sub-menu. X16 Mode Select PCH-IO Configuration Select a PCIe mode. Enter the PCH-IO Configuration sub-menu. VT-d Enable or disable Intel VT-d technology. ® Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 91 DVMT Pre-Allocated Enable VMD controller Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Enable or disable to VMD controller. Internal Graphics Device. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 92 Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance. SATA Test Mode Enable or disable SATA test mode. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 93 Enable or disable SATA port 0 DevSlp. Before enabling DevSlp, board rework is needed. DIT0 Configuration Enable or disable DIT0 configuration for SATA port 0. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 94: Security

    Custom: Changeable Image Execution policy and Secure Boot key Configure the TCG storage security. The item shown here depends on the databases. storage device you have connected. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 95 Restore Factory Keys Force system into User Mode. Install factory default Secure Boot Key databases. Reset To Setup Mode Delete all Secure Boot key databases from NVRAM. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 96 Platform Key (PK) / Key Exchange Keys / Authorized Signatures / Forbidden Signatures / Authorized TimeStamps / OsRecovery Signatures Enroll factory defaults or load the keys from a file. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 97: Boot

    Enable or disable boot with initialization of a minimal set of devices required to launch active boot option. This doesn’t affect the BBS boot options. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 98: Save & Exit

    <Enter>. You may be prompted to confirm again before exiting. Restore Defaults To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 99: Mebx

    Chapter 4: BIOS Setup MEBx Intel(R) ME Password Press to enter the Intel(R) ME Password sub-menu. Refer to Appendix A more detailed configurations. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 100: Appendix A: Nvis 66162 Intel Amt Configuration

    8 characters long and include a combination Press <Enter> button to access this feature. By default, the password of uppercase letters, lowercase letters, numbers, and symbols. For is “admin.“ example, !QAZ1qaz Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 101 State, then change the option to Network Active. Return to the BIOS main menu, navigate to the Save & Exit tab, and click Save Changes and Reset to apply the settings. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 102 Alternatively, you can access IAMT configuration page by https://127.0.0.1:16993 or https://localhost:16993 on local side. Click the Continue if a warning message appears to remind you that the connection isn't private. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 103 6 using the same address, account, and password. Ensure that the remote control system is in the same network segment as the target system. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 104: Appendix B: Pcie Bus Configuration

    Within the Chipset tab, locate the System Agent (SA) Configuration, process. Once in the BIOS, navigate to the Chipset tab. and then find the setting for PCIe slots (X16 Mode Select). Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 105 X8 (Disabled) Once you have configured the desired mode, save the changes and exit the BIOS. Restart your system to apply the new PCIe slot configuration. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 106: Appendix C: Gpio Instruction

    This versatile digital pin, controlled by software, can function as GPO2 GPO1 GPI3 GPI1 an input, output, or both, allowing you to customize its behavior and Output Input connect with various external devices. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 107: Iso Gpio 4In_2Out Block Diagram

    Appendix C: GPIO Instruction ISO GPIO 4IN_2OUT Block Diagram Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 108: Basic Configuration

    Download the software from the official website, unzip the file and run the RN15_GPIO_Sample.exe file. Follow the images below for configuring the GPIO. GPI (4 IN) GPO (2 OUT) Default GPI Off=1 Default GPO Off=V Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 109: Appendix D: Nvis 66162 Raid Configuration

    Within the Chipset tab, find the System Agent (SA) Configuration and process. Once in the BIOS, navigate to the Chipset tab. then go to the VMD Setup menu > Enable VMD controller. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 110 Enable the VMD controller, then save the changes and exit the BIOS to Enter the BIOS again and navigate to the Intel(R) Rapid Storage apply the settings. Technology tab. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 111 Once you have completed the disk selection, press the <Enter> button to create the RAID volume under the RAID Volume option. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 112 Appendix D: NViS 66162 RAID Configuration The Volume 1 appears when the RAID volume is created. Press <Enter> button for more information and configurations. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 113: Appendix E: Installing The System In A Rack

    Then, pull the Front release tab forward to release the lock screws for secure installation. and remove the inner rail. Outer rail M4*8mm Screw Inter rail M4*4.65mm Nut Front release tab Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 114 Secure the outer rail (with the pre-installed brackets) to the frame of Attach the inner rail withdrawn in step 1 to the system. the rack. 6-M4*5 Screw Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
  • Page 115 Release the lock by sliding the Front release tab forward, and then secure the system in its final position within the rack. Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved. NViS 66162/6602 Series User Manual...
